Honeywell Xenon Series User Manual

8 Xenon/Granit User Guide
3. If you are connecting a Granit scanner, make sure the cable is pushed tightly
into the scanner. Loosen the locking plate and slide it over the base of the cable
connector to lock the cable in place. Tighten the screw.
Note: The power supply must be ordered separately, if needed.
4. If you are connecting a CCB01-010BTor CCB01-010BT-07N-BF Base, make
sure the cables are secured in the wireways in the bottom of the cordless base
and the base sits flat on a horizontal surface. If you are connecting a CCB02-
100BT or CCB05-100BT Base, see Mount a CCB02-100BT/CCB05-100BT
Base on page 10.
5. Plug the serial connector into the serial port on your computer. Tighten the two
screws to secure the connector to the port.
6. Once the scanner or cordless base has been fully connected, power up the
computer.
This interface programs 115,200 baud, 8 data bits, no parity, and 1 stop bit.

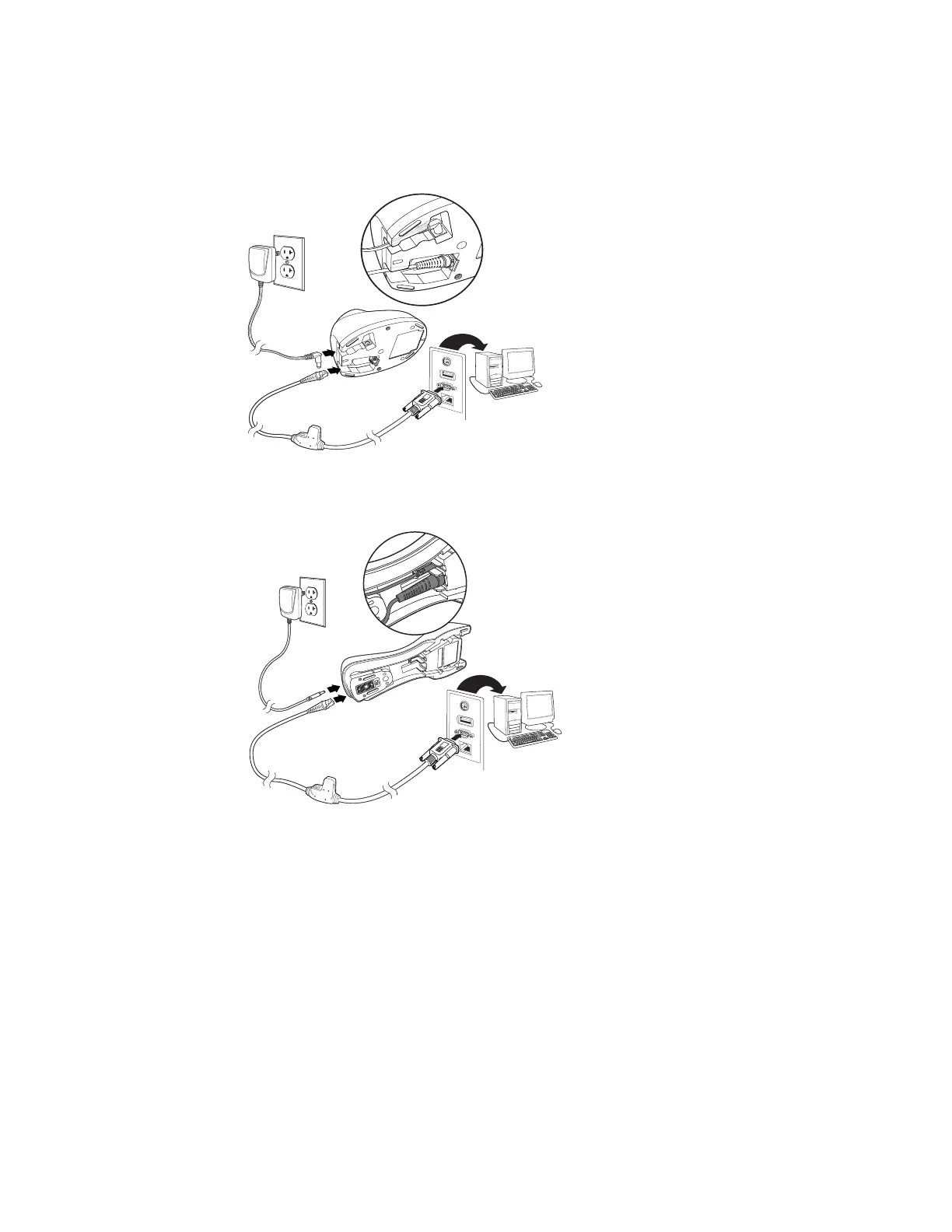

CCB01-010BT/CCB01-010BT-07N-BF Base RS232 Serial Port Connection:
CCB02-100BT/CCB05/100BT Base RS232 Serial Port Connection:

Honeywell Xenon Series Specifications

General

IP Rating	IP42
Connectivity	USB, RS-232, Keyboard Wedge, IBM 46XX, Synapse, USB-CDC
Decode Capabilities	1D and 2D barcodes
Operating Temperature	0°C to 50°C (32°F to 122°F)
Storage Temperature	-40°F to 158°F (-40°C to 70°C)
Light Levels	Ambient light up to 100, 000 lux
Field of View	Horizontal: 41.4°; Vertical: 32.2°
Interface	USB, RS-232, Keyboard Wedge, IBM 46XX
Humidity	5% to 95% (non-condensing)
Dimensions	104 mm x 71 mm x 160 mm (4.1 in x 2.8 in x 6.3 in)
Drop Resistance	Withstands 50 drops at 1.8 m (6 ft) to concrete
Drop Specification	Withstands 50 drops at 1.8 m (6 ft) to concrete
