Honeywell Xenon Series User Manual

250 Xenon/Granit User Guide
IR - Image Rotate
0ir Image as snapped (rightside up) (default)
1ir Rotate image 90 degrees to the right
2ir Rotate image 180 degrees (upside down)
3ir Rotate image 90 degrees to the left
Example:
J - JPEG Image Quality
Sets the desired quality when the JPEG image format is selected. Higher numbers
result in higher quality, but larger files. Smaller numbers result in greater amounts
of lossy compression, faster transmission times, lower quality, but smaller files.
(Default = 50)
nJ Image is compressed as much as possible while preserving quality factor
of n (n = 0 - 100)
0J worst quality (smallest file)
100J best quality (largest file)

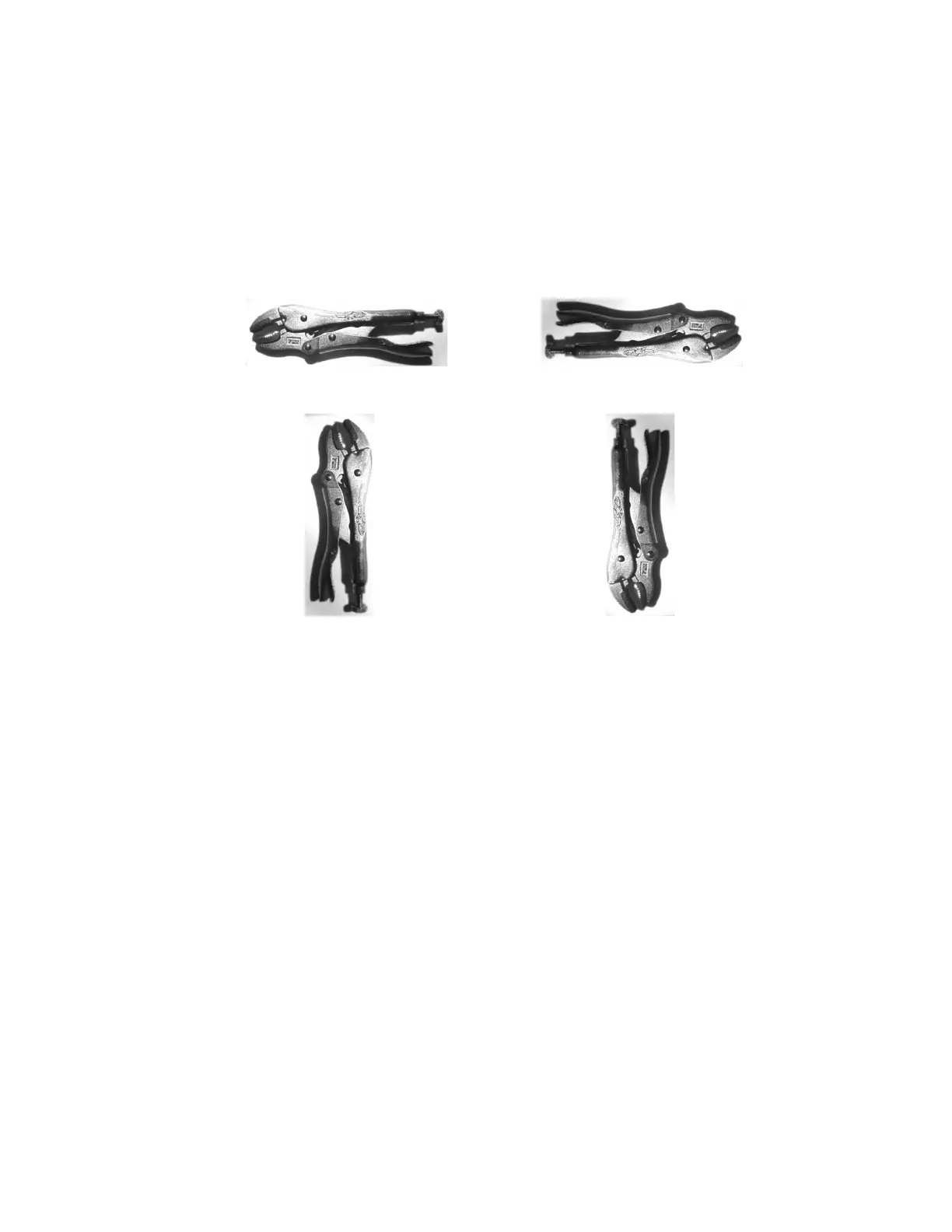

Image Rotate set to 0ir:
Image Rotate set to 2ir:
Image Rotate set to 1ir: Image Rotate set to 3ir:

Honeywell Xenon Series Specifications

General

IP Rating	IP42
Connectivity	USB, RS-232, Keyboard Wedge, IBM 46XX, Synapse, USB-CDC
Decode Capabilities	1D and 2D barcodes
Operating Temperature	0°C to 50°C (32°F to 122°F)
Storage Temperature	-40°F to 158°F (-40°C to 70°C)
Light Levels	Ambient light up to 100, 000 lux
Field of View	Horizontal: 41.4°; Vertical: 32.2°
Interface	USB, RS-232, Keyboard Wedge, IBM 46XX
Humidity	5% to 95% (non-condensing)
Dimensions	104 mm x 71 mm x 160 mm (4.1 in x 2.8 in x 6.3 in)
Drop Resistance	Withstands 50 drops at 1.8 m (6 ft) to concrete
Drop Specification	Withstands 50 drops at 1.8 m (6 ft) to concrete
