Honeywell Xenon Series User Manual

252 Xenon/Granit User Guide
nB The bottom edge of the shipped image corresponds to row n - 1 of the
image in memory. Range: 000 - 639. (Default = all rows)
Example:
Alternately, specify the number of pixels to cut from the outside margin of the
image; thus only the center pixels are transmitted.
nM Margin: cut n columns from the left, n + 1 columns from the right, n rows
from the top, and n + 1 rows from the bottom of the image. Ship the
remaining center pixels. Range: 0 - 238.
(Default = 0, or full image)
Example:
P - Protocol
Used for shipping an image. Protocol covers two features of the image data being
sent to the host. It addresses the protocol used to send the data (Hmodem, which is
an Xmodem 1K variant that has additional header information), and the format of
the image data that is sent.
0P None (raw data)
2P None (default for USB)
3P Hmodem compressed (default for RS232)
4P Hmodem
S - Pixel Ship
Pixel Ship sizes an image in proportion to its original size. It decimates the image
by shipping only certain, regularly spaced pixels.
Example: 4S would transmit every fourth pixel from every fourth line.

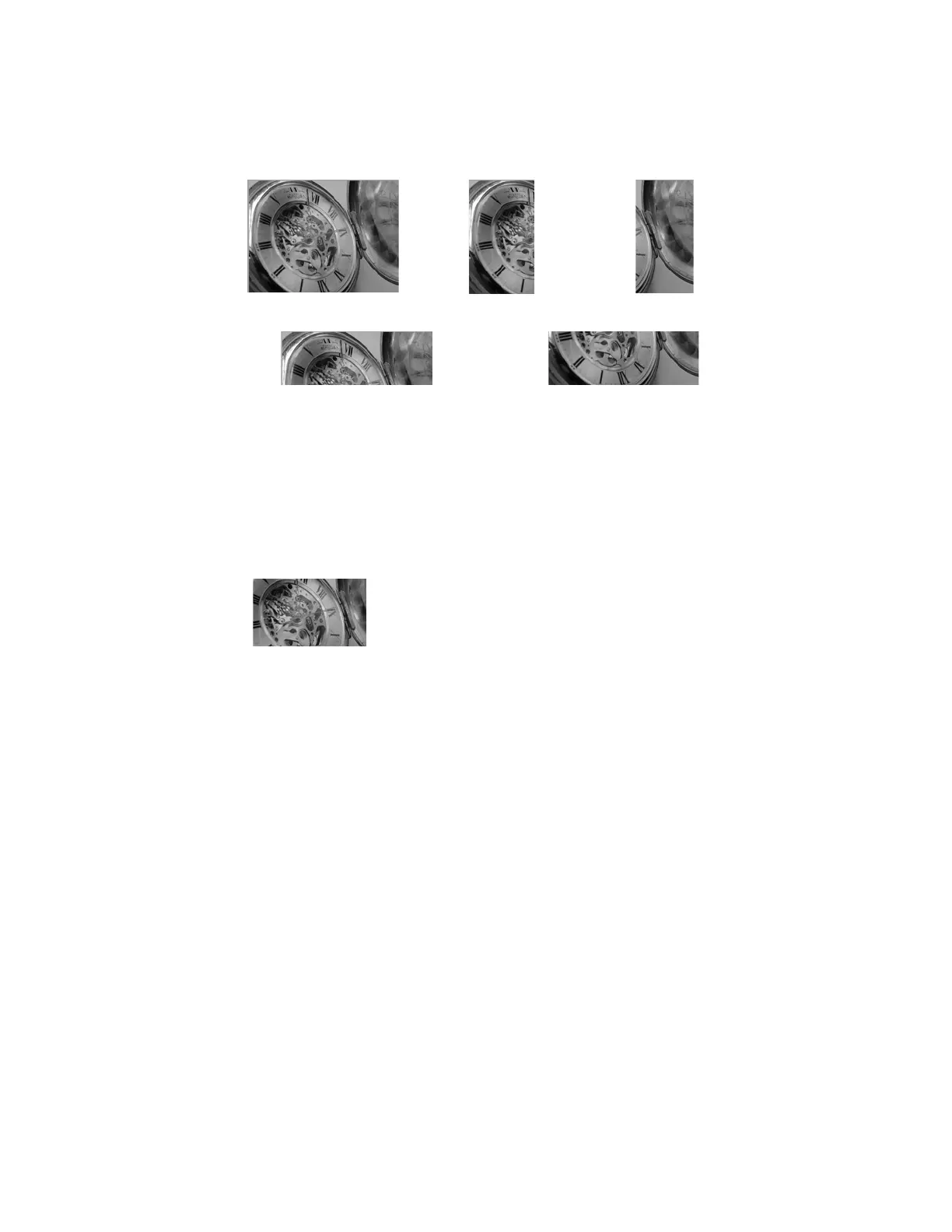

Image Crop set to
300L:
Image Crop set to
300R:
Uncropped Image:
Image Crop set to 200T:Image Crop set to 200B:
Image Crop set to 238M:

Honeywell Xenon Series Specifications

General

IP Rating	IP42
Connectivity	USB, RS-232, Keyboard Wedge, IBM 46XX, Synapse, USB-CDC
Decode Capabilities	1D and 2D barcodes
Operating Temperature	0°C to 50°C (32°F to 122°F)
Storage Temperature	-40°F to 158°F (-40°C to 70°C)
Light Levels	Ambient light up to 100, 000 lux
Field of View	Horizontal: 41.4°; Vertical: 32.2°
Interface	USB, RS-232, Keyboard Wedge, IBM 46XX
Humidity	5% to 95% (non-condensing)
Dimensions	104 mm x 71 mm x 160 mm (4.1 in x 2.8 in x 6.3 in)
Drop Resistance	Withstands 50 drops at 1.8 m (6 ft) to concrete
Drop Specification	Withstands 50 drops at 1.8 m (6 ft) to concrete
