Electrical Installation

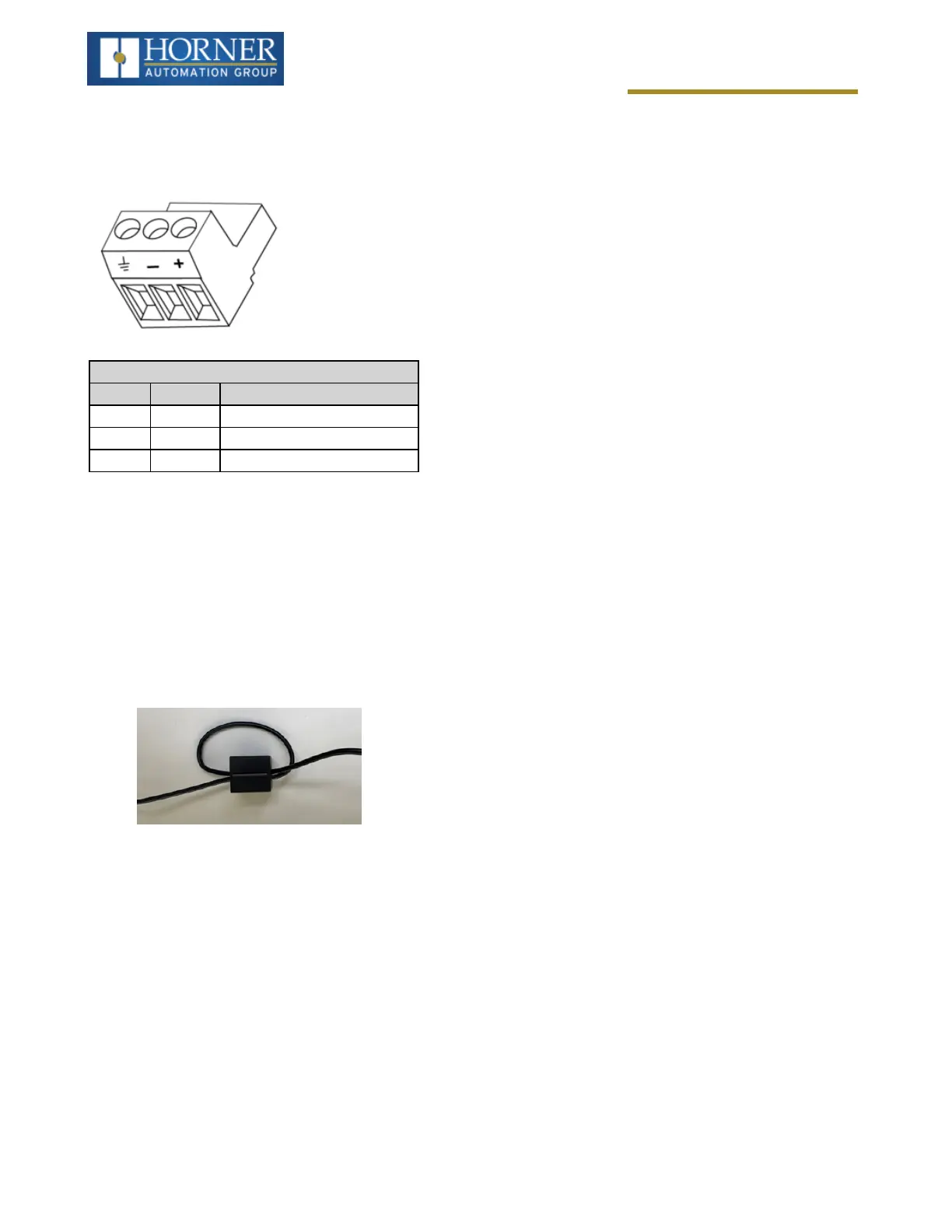

Primary Power Port
NOTE: The Primary Power Range is 10VDC to 30VDC.
Primary Power Port Pins
PIN Signal Description
1 Ground Frame Ground
2 DC- Input Power Supply Ground
3 DC+ Input Power Supply Voltage
DC Input / Frame
l
Solid/Stranded Wire: 12-24 awg (2.5-0.2mm)
l
Strip length: 0.28” (7mm)
l
Torque, Terminal Hold-Down Screws: 4.5 – 7 in-lbs (0.50 – 0.78 N-m)
l
DC- is internally connected to I/O V-, but is isolated from CAN V-. A Class 2 power supply must be used.
Power Up
1. OPTION: Attach ferrite core with a minimum of two turns of the DC+ and DC- signals from the DC supply that
is powering the controllers.
2. Connect to earth ground.
3. Apply recommended power.
