System Settings and Adjustments
Set Networks &Set Network Baud Rate

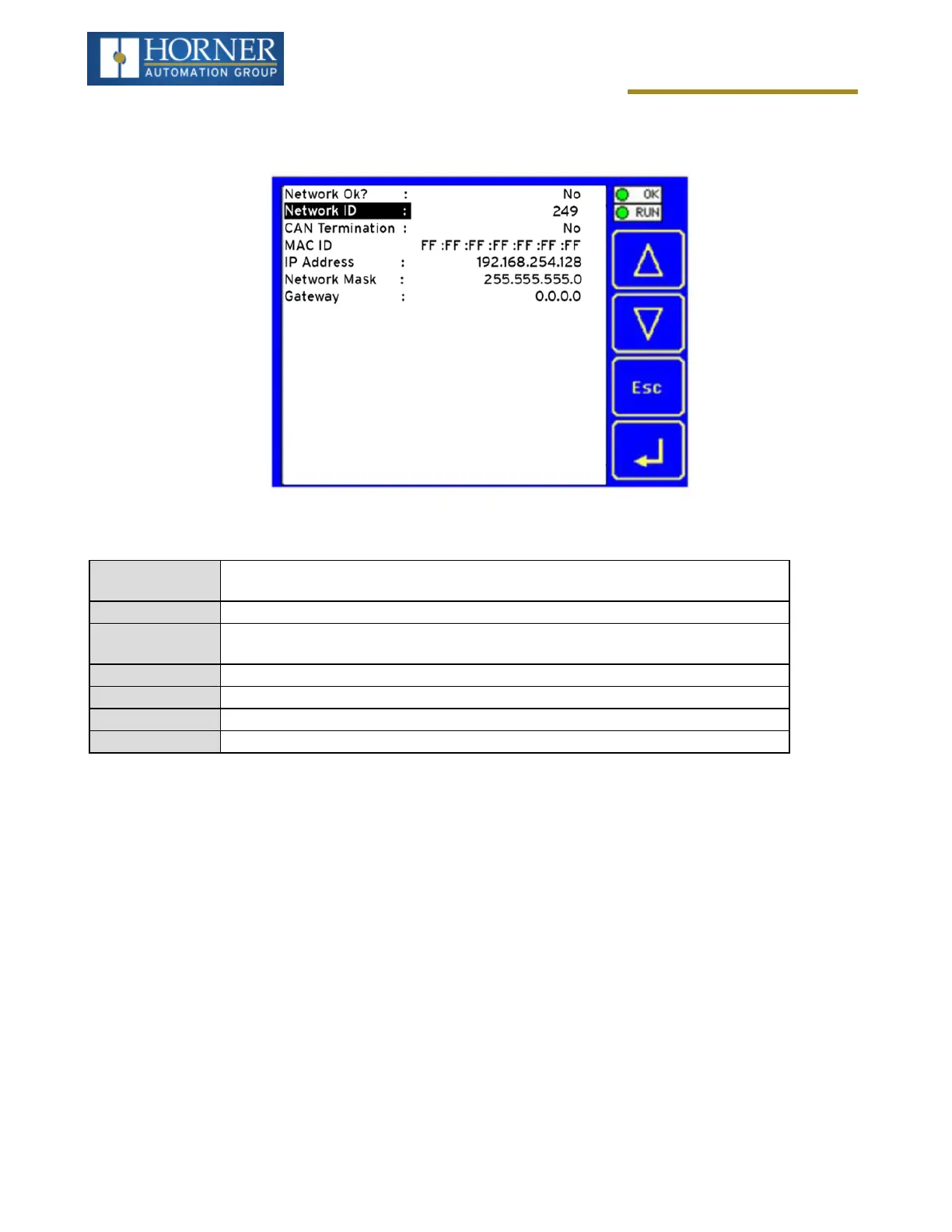

Set Networks
This sub menu allows setting for the CAN and Ethernet network to be viewed or changed.
Network Ok?
Yes = connected to a network and functioning properly
No = Not ready to communicate on the network
Network ID 1 to 253 = This node’s CsCAN Network ID; must be unique on network
CAN Termination
Yes = 121Ω termination is internally placed between CAN_H and CAN_L terminals
No = No termination present
MAC ID Displays the Ethernet MAC ID of the unit
IP Address Displays the Ethernet IP address of the unit
Network Mask Displays the Ethernet net maskof the unit
Gateway Displays the Ethernet gateway of the unit
NOTE: The IP address, Net Mask, and Gateway can be changed from the System Menu. This is designed for com-
missioning or temporary field changes. The actual parameters are defined in Cscape under the Ethernet con-
figuration.
Page 27 of 163
