General I/O Configuration
Analog Output Configuration
NOTE: Refer to the X4 datasheet and the High-Speed I/O chapter for more information.
The analog outputs on X4 devices provide high resolution current outputs.
NOTE: Each channel can be separately configured for current mode.
When the controller is stopped, the operation of each output is configurable. The outputs can hold the state they
were in before the controller stopped or they can go to a predetermined value. By default, analog outputs are set to
a value of zero (0). For more information on Stop State, refer to "Cscape Configuration" on page1.
Home > Hardware Configuration [select Device Type/Model#] > Local I/O Tab > I/O / Config Button > Mod-
ule Setup > Analog Out

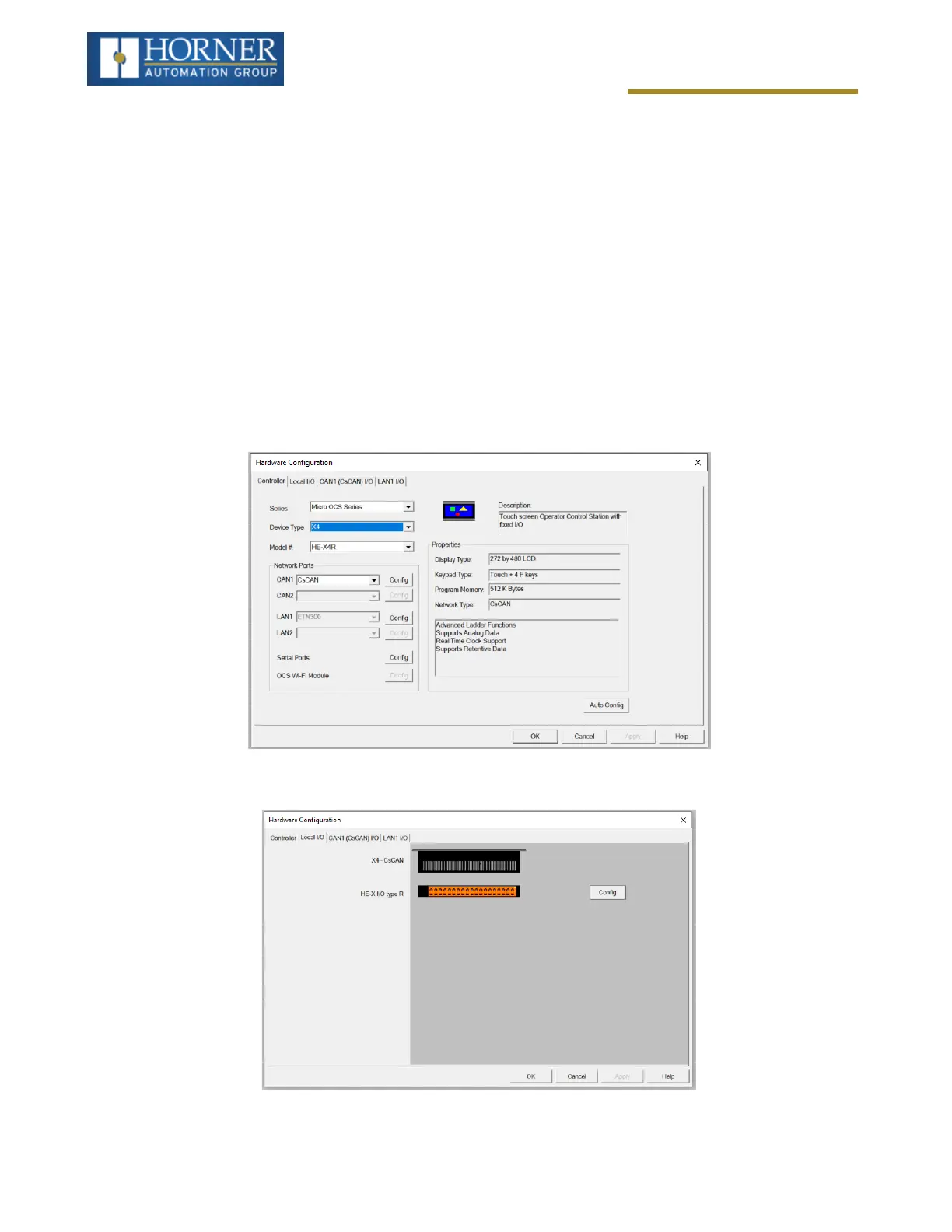

Select Hardware Configuration from the Home menu and ensure that the correct Device Type and Model# are selec-
ted. Then select the Local I/O tab.
After selecting Local I/O, select the Config button next to the I/O connector.
