System Settings and Adjustments

Load Clone

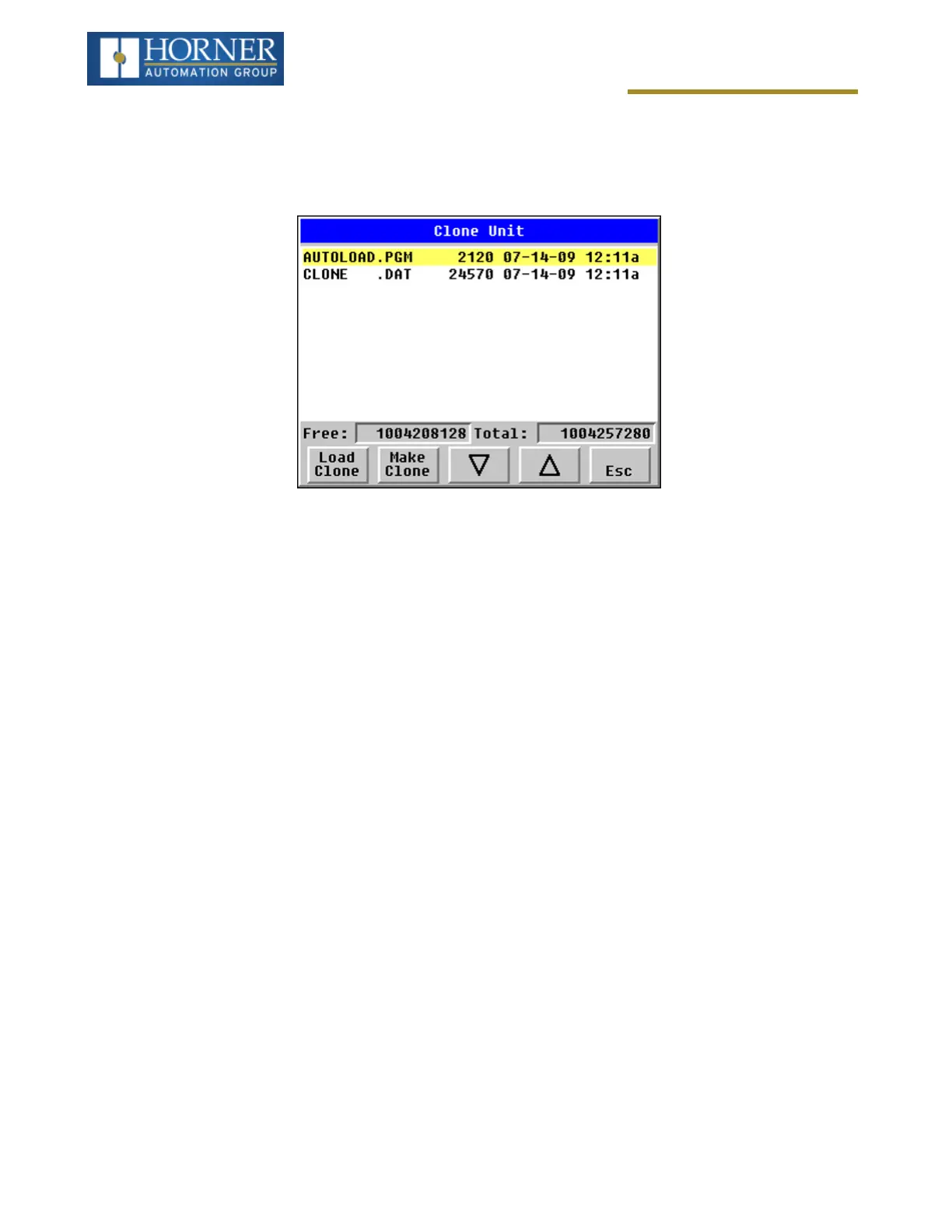

Selecting “Clone Unit” menu will open the following menu screen. Select “Load Clone” (one of the virtual buttons

beneath the screen).

NOTE: For security enabled files, Load Clone asks for password validation before loading the application.

Page 44 of 163
