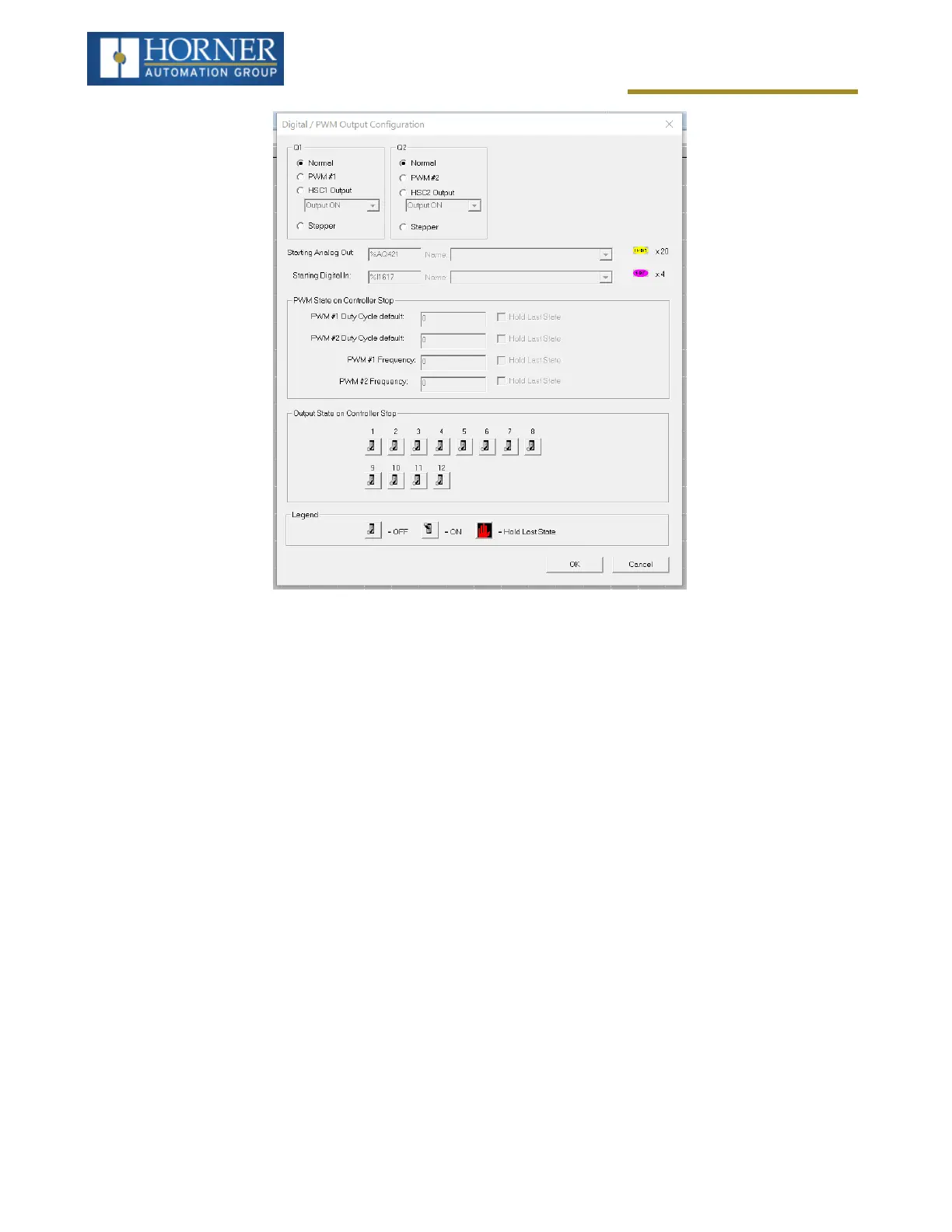

General I/O Configuration
The Q1 and Q2 group boxes allow the user to specify the operation of the multifunction outputs.
The PWM State on Controller Stop group box contains items that allow the user to specify how the PWM outputs
behave when the controller is stopped. These items can either hold their value or default to some value when the
controller is stopped.
NOTE: The PWM outputs are set to the OFF state at power-up and during program download and remain in that
state until the unit is placed in RUN.
The Output State on Controller Stop group box contains items to allow the user to specify how the remaining
digital outputs behave when the controller is stopped. These items can either hold their value or default to some
value when the controller is stopped.
