2.
Press
the
latch
(figure
10-3)
toward
the
front
of
the
terminal
to
release
the
latching
frame.
Lift
the
hinged
latching
frame
to
its
forward
position.
3.
Remove
any
paper
remaining
in
the
printer.
4.
The
center
paper
core
is
held
in
place
by
a
metal
rod
inserted
through
the
center
of
the
core.
Grasp
the
core
and
lift
forward
and
upward
along
the
guide
slots
to
remove
the
core
and
rod.
5.
Remove
the
rod
from
the
old
core
and
insert
the
rod
through
the
core
of
a
new
roll
of
paper.
6.
The
HP
Thermal
Paper
is
coated
with
print
material
on
one
side
and
must
be
inserted
into
the
printer
cor-
rectly
to
produce
the
print
image.
The
paper
must
feed
toward
the
front
of
the
terminal
from
the
underside
of
the
paper
roll
(see
the
embossed
illustration
on
the
top
cover).
7.
Place
the
ends
of
the
metal
rod
into
the
guide
slots
on
either
side
of
the
print
mechanism
and
press
downward
and
then
toward
the
back
of
the
terminal
until
the
rod
snaps
into
place.
8.
Feed
the
leading
edge
of
the
paper
through
the
latch-
ing
frame
(between
the
latching
frame
and
the
clear
PRINT
HEAD
PLASTIC
GUIDE
WINDOW
Terminal
Maintenance
Procedures
plastic
guide
window).
Be
careful
not
to
sharply
strike
the
print
head
because
damage
may
result.
9.
Lower
the
latching
frame
without
locking
it
into
place.
10.
Align
the
sides
of
the
paper
with
the
guide
lines
embossed
on
each
side
of
the
guide
window.
11.
Each
new
roll
of
HP
Thermal
Paper
has
a
glue
spot
near
the
leading
edge
of
the
roll
that
holds
the
paper
roll
intact
during
shipment.
You
must
not
allow
the
print
head
to
come
in
contact
with
this
glue
spot.
Feed
approximately
12
inches
of
paper
through
the
latching
frame
so
that
the
glue
spot
is
beyond
(outside)
the
print
head
and
guide
window.
12.
Press
the
latch
down
until
it
locks
into
place
with
an
audible
click.
13.
Tear
off
the
excess
paper
using
the
edge
of
the
guide
window
as
a
cutting
edge.
14.
Close
the
top
cover
securely
and
then
press
_
.
Note
that
if
subsequent
printer
operations
produce
no
on
the
paper
the
paper
has
probably
been
installed
with
the
wrong
side
facing
the
print
head.
An
can
be
printed
only
on
one
side
of
HP
Thermal
Paper.

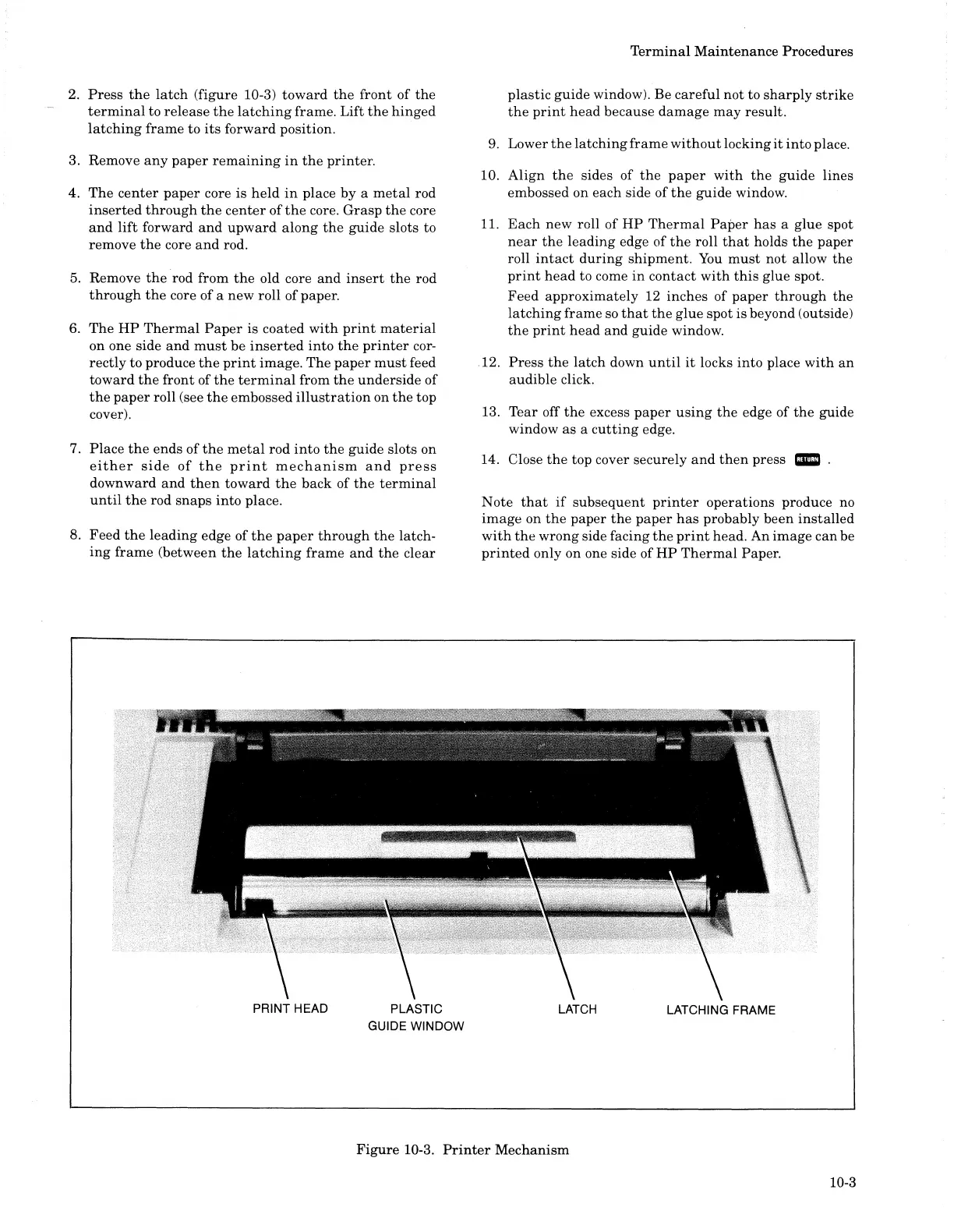

LATCH
LATCHING
FRAME
Figure
10-3.
Printer
Mechanism
10-3
95
97
