Terminal Maintenance Procedures
You replace the battery as follows:
1. Use your thumb and index finger to grasp the battery
support at points A and B as shown in figure 10-2.
2. Squeeze the tabs at points A and B toward the center of
the battery support with enough pressure to disengage
the flanges that hold the battery support in place.
3.
Gently pull the support downward until it is com-
pletely free from the terminal housing.
4. Remove
the old battery from the support.
5. Install the new battery in the support making sure
that the positive end of the battery matches the pos-
itive end of the support (+ to + and - to -).
6. Reinsert the battery support into the terminal. A
slotted guide along one side of the battery support
ensures that the support is inserted correctly. The
slotted guide must be facing away from the terminal
case when you reinsert the support (otherwise the
support will not fit back into the terminal).
THERMAL PRINTER PAPER
The optional thermal printer mechanism of the HP 2624A (
uses a thermal printing paper that is manufactured spe-
cifically for
use by the HP 262x family of terminals. You
can purchase it through your local HP Sales and Service
Office using the following nomenclature and HP part
number:
1 Box (24 rolls) Thermal Paper, HP Part No. 9270-0638
It is recommended that you use only HP Thermal Paper in
your terminal. If you have an HP Warranty and Service
Contract then you MUST use only HP Thermal Paper in
order to maintain a valid contract. HP Warranty and Ser-
vice Contracts are available through your local HP Sales
and Service Office.
Paper Loading
The printer mechanism is shown in figure 10-3.
You load a roll of thermal paper into the printer as follows:
1. Lift the top cover of the printer mechanism. An
illustration of the correct paper position and flow is
embossed on the underside of this cover.
(
REMOVING BATTERY
(

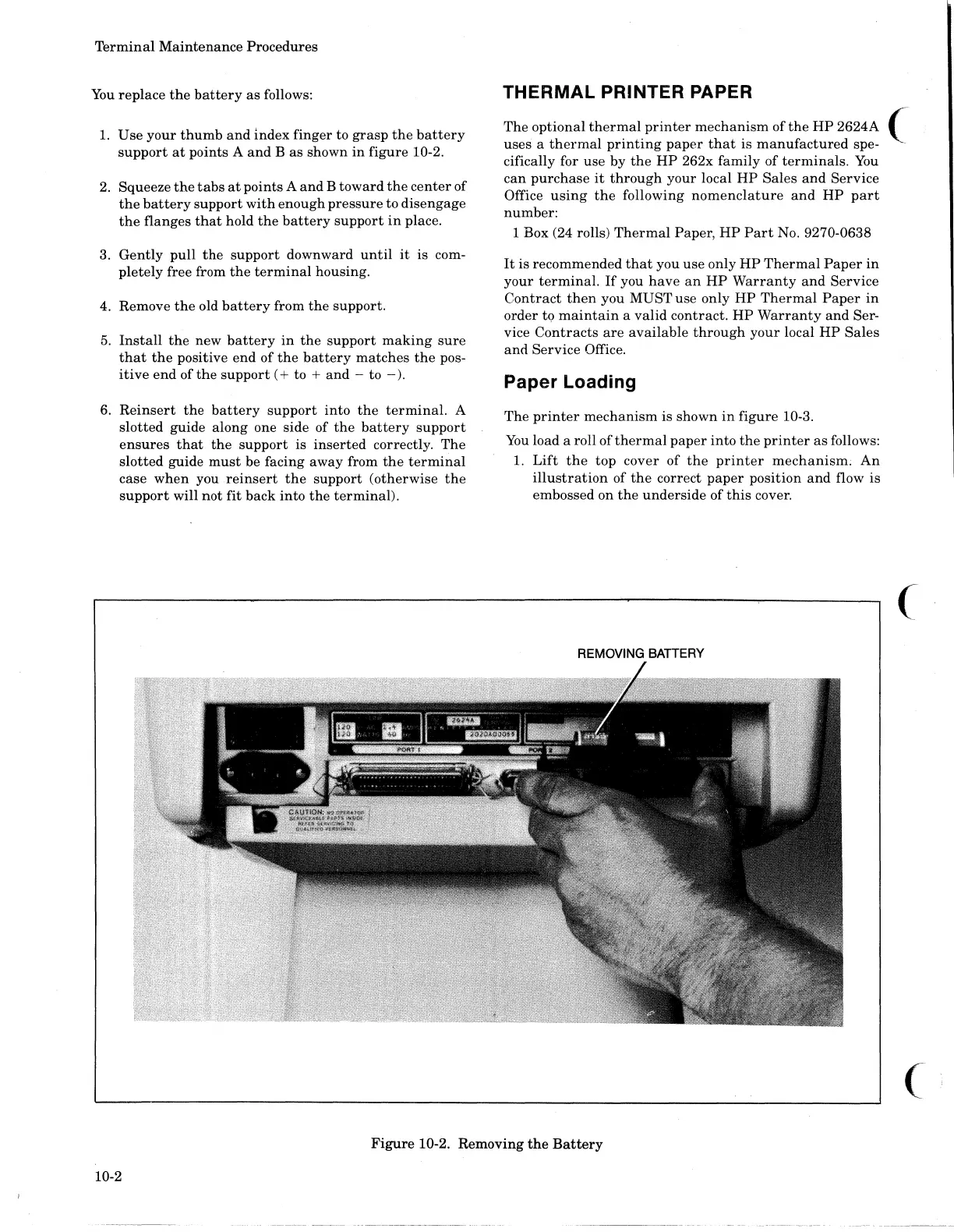

Figure 10-2. Removing the Battery
10-2
