HP 5973 - Turbo Pump Vacuum Manifold

5 Vacuum System
Turbo pump vacuum manifold
189

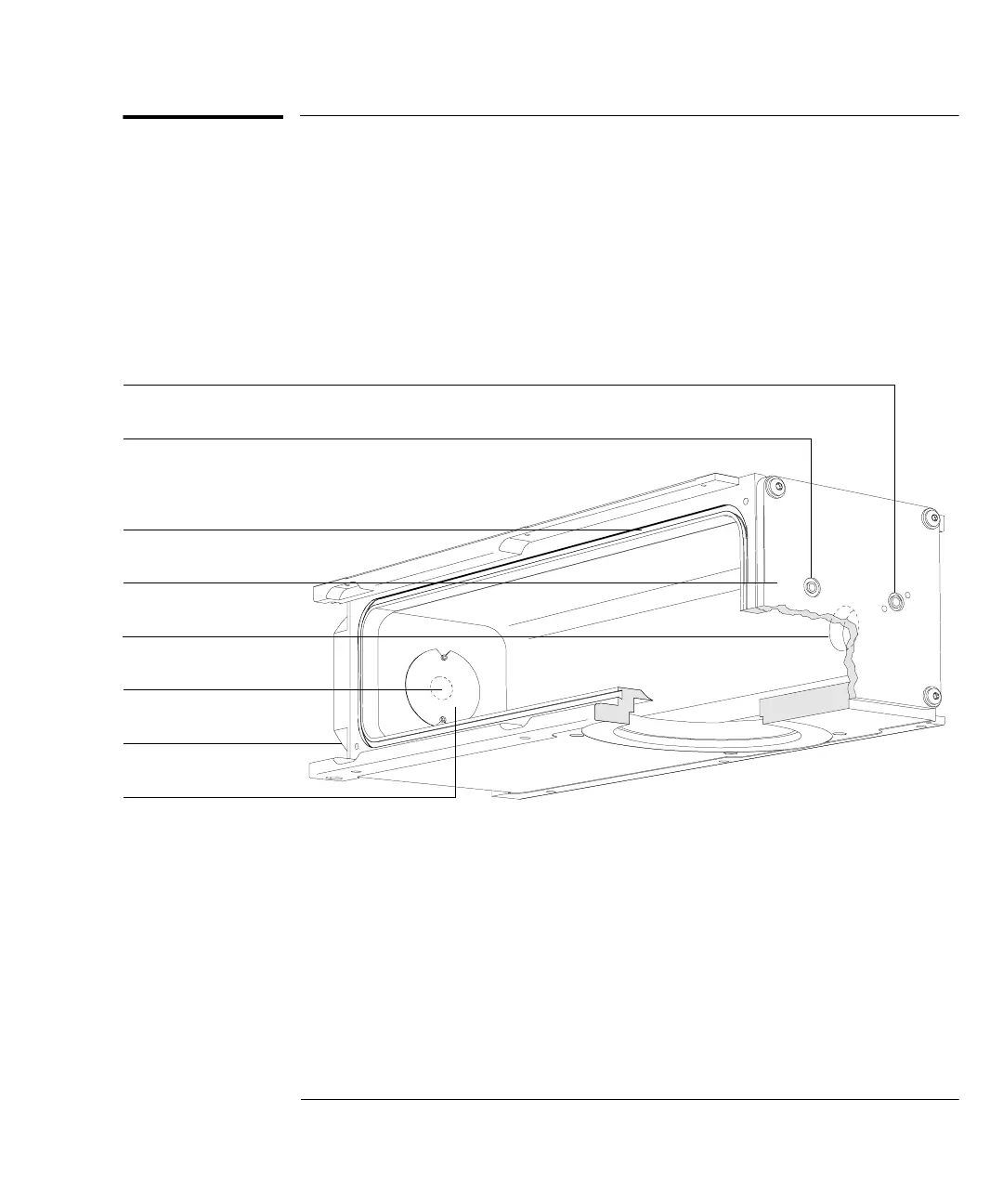

Turbo pump vacuum manifold
The manifold for the turbo pump does not have a baffle or cooling fins. The turbo
pump and the mounting bracket for the turbo controller are clamped directly to
the manifold.
In every other respect, the two manifolds are identical.
Triode gauge port
(behind shield)
GC/MSD interface port
Rear end plate
Side plate O-ring groove
Front end plate
Calibration valve port
Vent valve port
Triode gauge port shield
