HP 5973 - To Calculate Column Flow

2 Operating the MSD
To calculate column flow
47
To calculate column flow

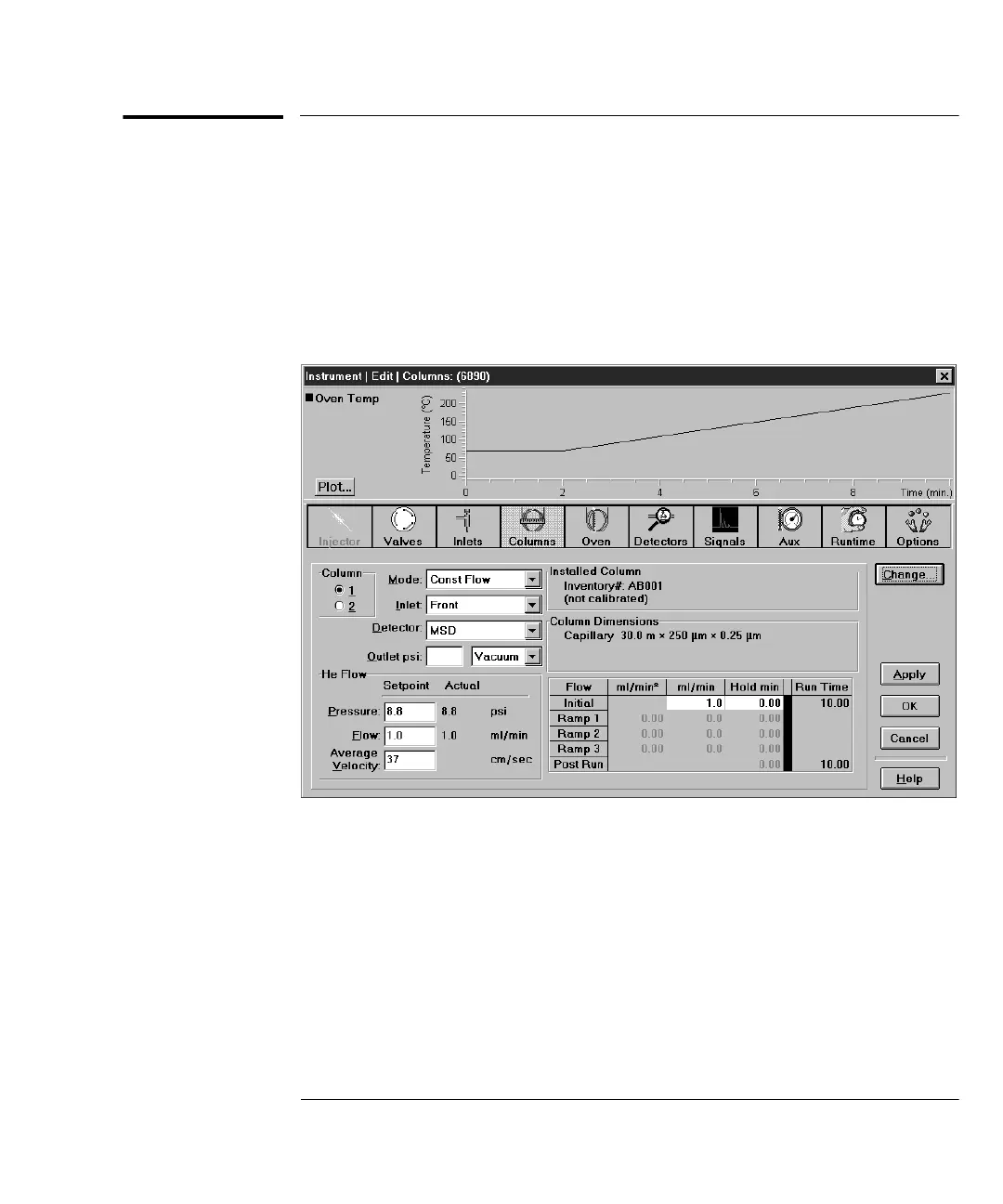

1 In the Instrument Control view, click the Columns icon.
2 Check that the correct column dimensions are entered.
3 Type the desired value in the pressure field.
4 If the Average Velocity displayed is different from that obtained on
page 46, click the
Change button to calibrate the column dimensions.
