1 Installing GC Columns
To install a capillary column without the installation tool
27
9 Tighten the nut 1/4 to 1/2 turn.
Check tightness after one or two heat cycles.

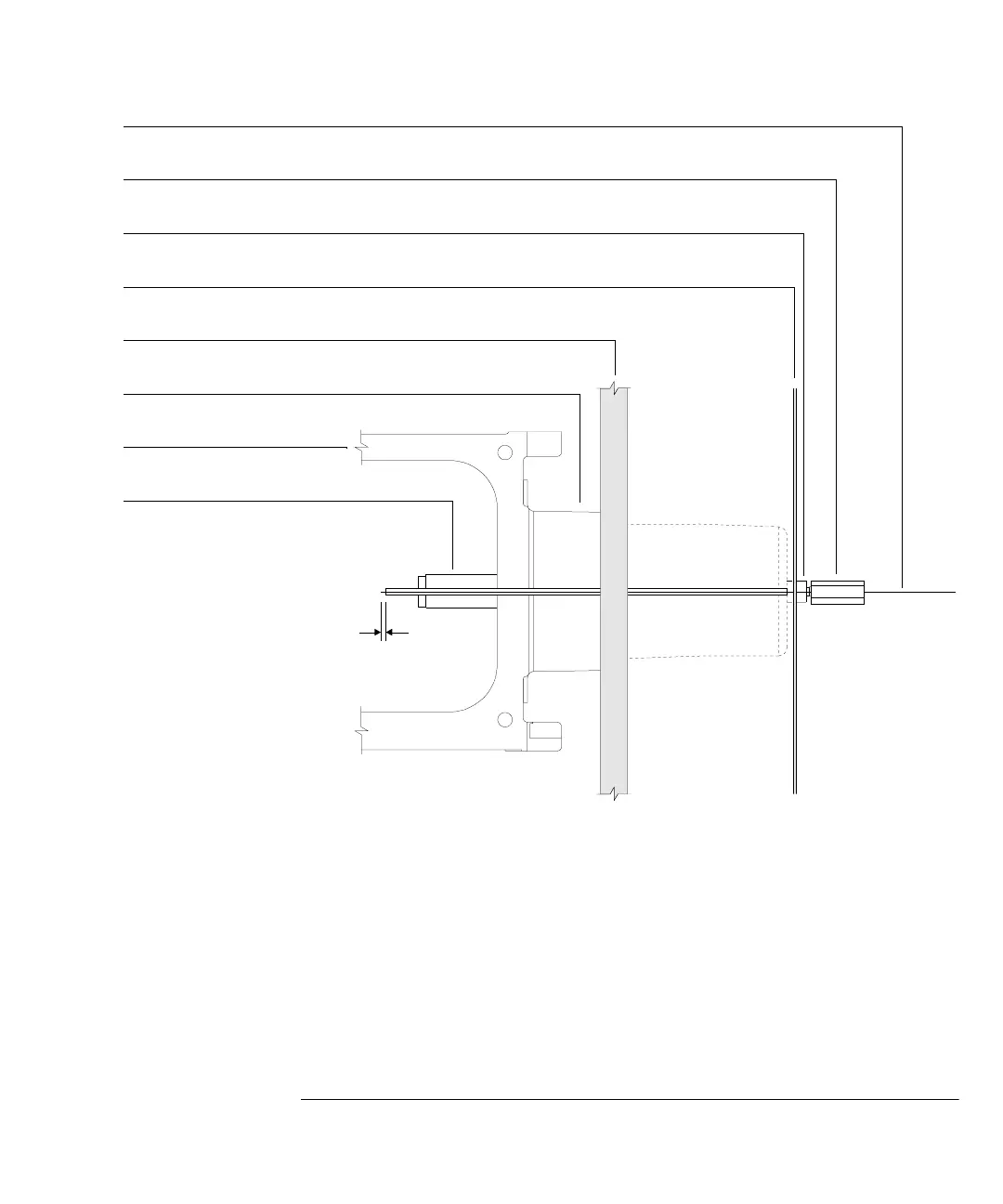

Vacuum manifold
GC/MSD interface
(MSD end)
GC side panel
Oven wall
Interface column nut
GC/MSD interface
(GC end)
Interface cover
Column
MSD GC oven
1 to 2 mm
