5.
Note that the slots are n
umb ered from 1 to 4 (for the Model 745i/50 or
Mo del 745i/100).
Cards for slots 1 and 2 are installed comp onen
t side
up
; cards for slots 3
and 4 are installed comp onen
t side
down
.
Loosen the card clamp captiv
e screw for the appropriate slot, and then
remove the card clamp.

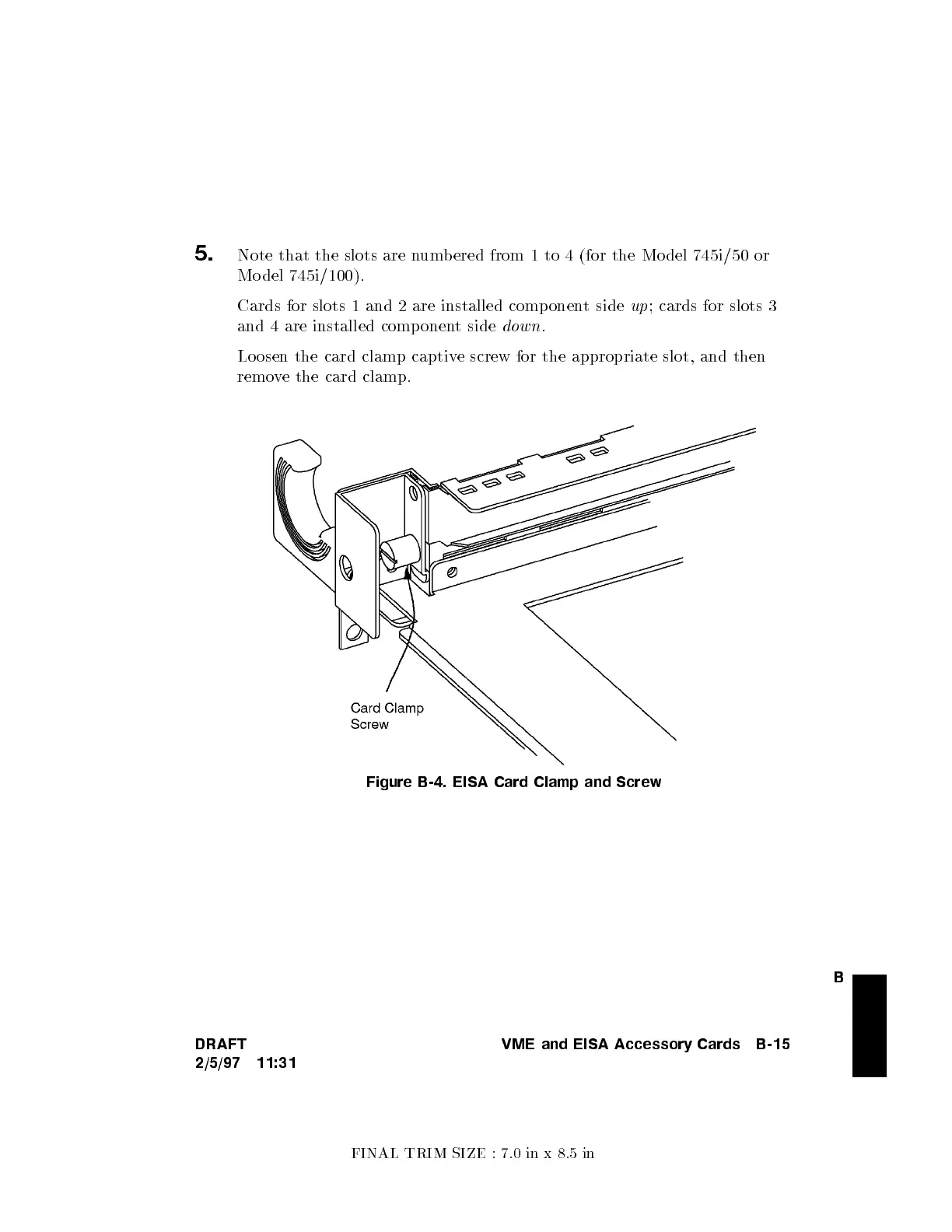

Figure B-4. EISA Card Clamp and Screw
