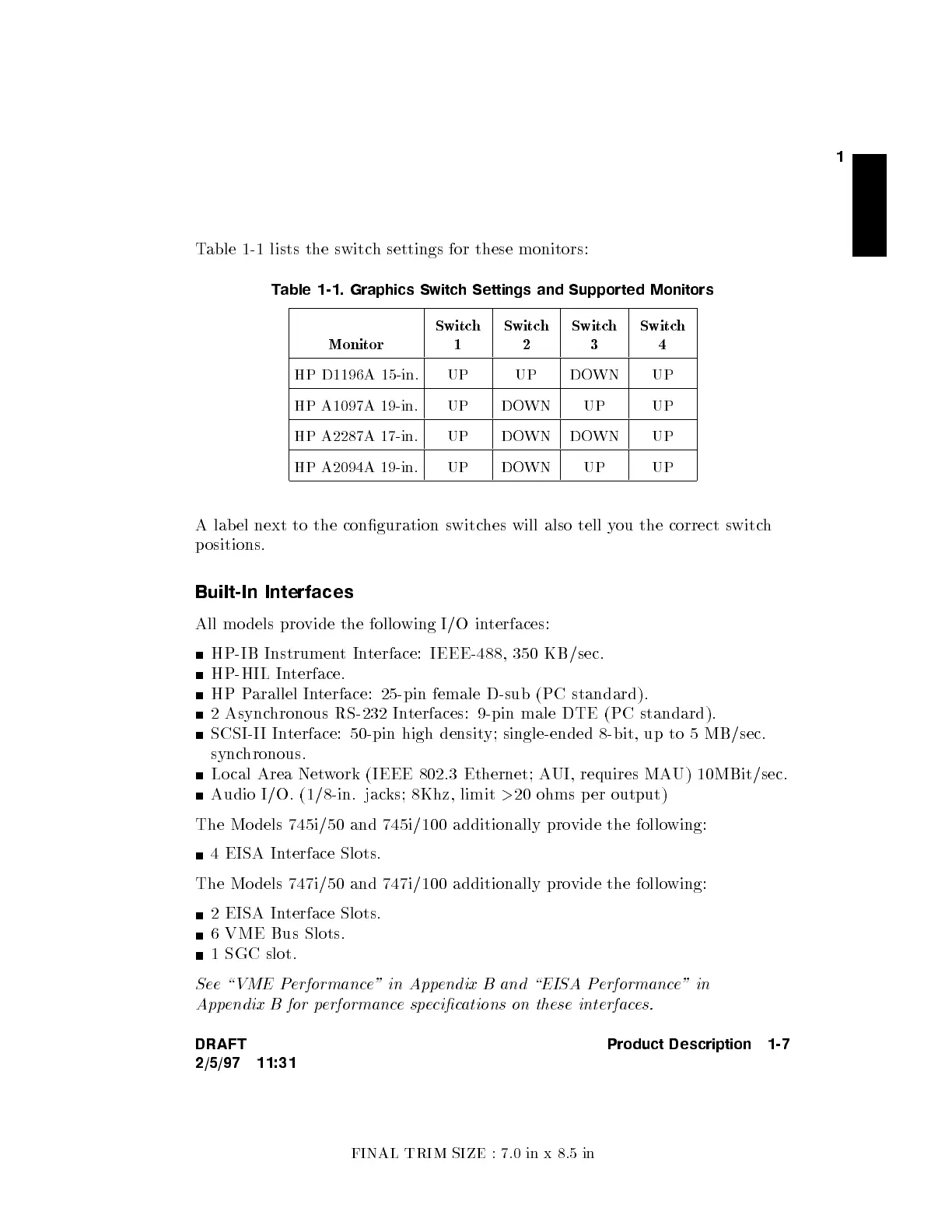

FINAL TRIM SIZE : 7.0 in x 8.5 in
1
Table 1-1 lists the switc
h settings for these monitors:
Table 1-1. Graphics Switch Settings and Supported Monitors
Monitor
Switch
1
Switch
2
Switch
3
Switch
4
HP D1196A 15-in. UP UP DOWN UP
HP A1097A 19-in. UP DOWN UP UP
HP A2287A 17-in. UP DOWN DOWN UP
HP A2094A 19-in. UP DOWN UP UP
A lab el next to the conguration switches will also tell you the correct switch
positions.
Built-In Interfaces
All mo dels provide the following I/O interfaces:
HP-IB InstrumentInterface: IEEE-488, 350 KB/sec.
HP-HIL Interface.
HP Parallel Interface: 25-pin female D-sub (PC standard).
2 Asynchronous RS-232 Interfaces: 9-pin male DTE (PC standard).
SCSI-II Interface: 50-pin high density; single-ended 8-bit, up to 5 MB/sec.
synchronous.
Local Area Network (IEEE 802.3 Ethernet; AUI, requires MAU) 10MBit/sec.
Audio I/O. (1/8-in. jacks; 8Khz, limit
>
20 ohms p er output)
The Mo dels 745i/50 and 745i/100 additionally provide the following:
4 EISA Interface Slots.
The Mo dels 747i/50 and 747i/100 additionally provide the following:
2 EISA Interface Slots.
6 VME Bus Slots.
1 SGC slot.
See \VME Performance" in Appendix B and \EISA Performance" in
Appendix B for performancespecications on these interfaces.
DRAFT
2/5/97 11:31
Product Description 1-7
