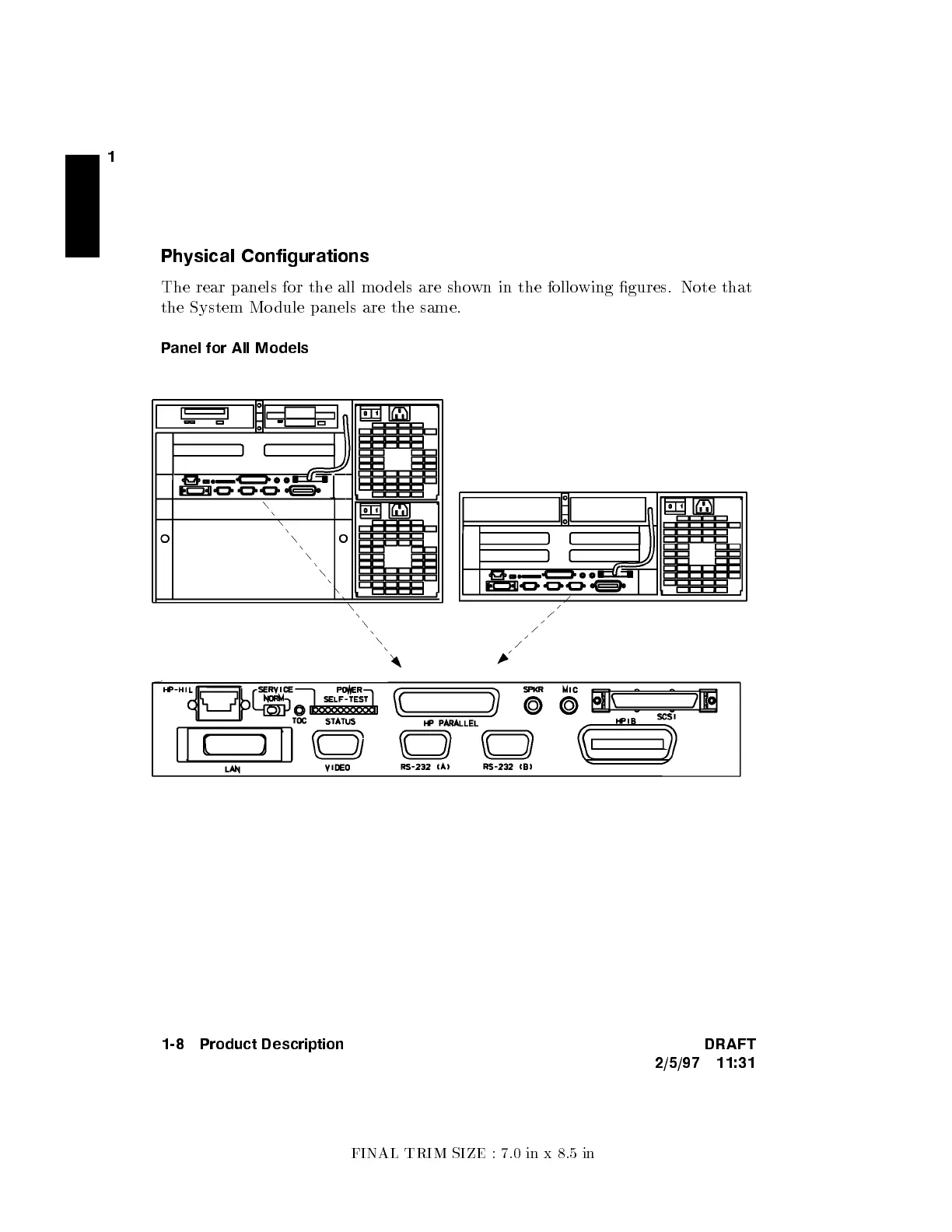

Physical Configurations

The rear panels for the all mo dels are sho

wn in the following gures. Note that

the System Mo dule panels are the same.

Panel for All Models

1-8 Product Description DRAFT

2/5/97 11:31
