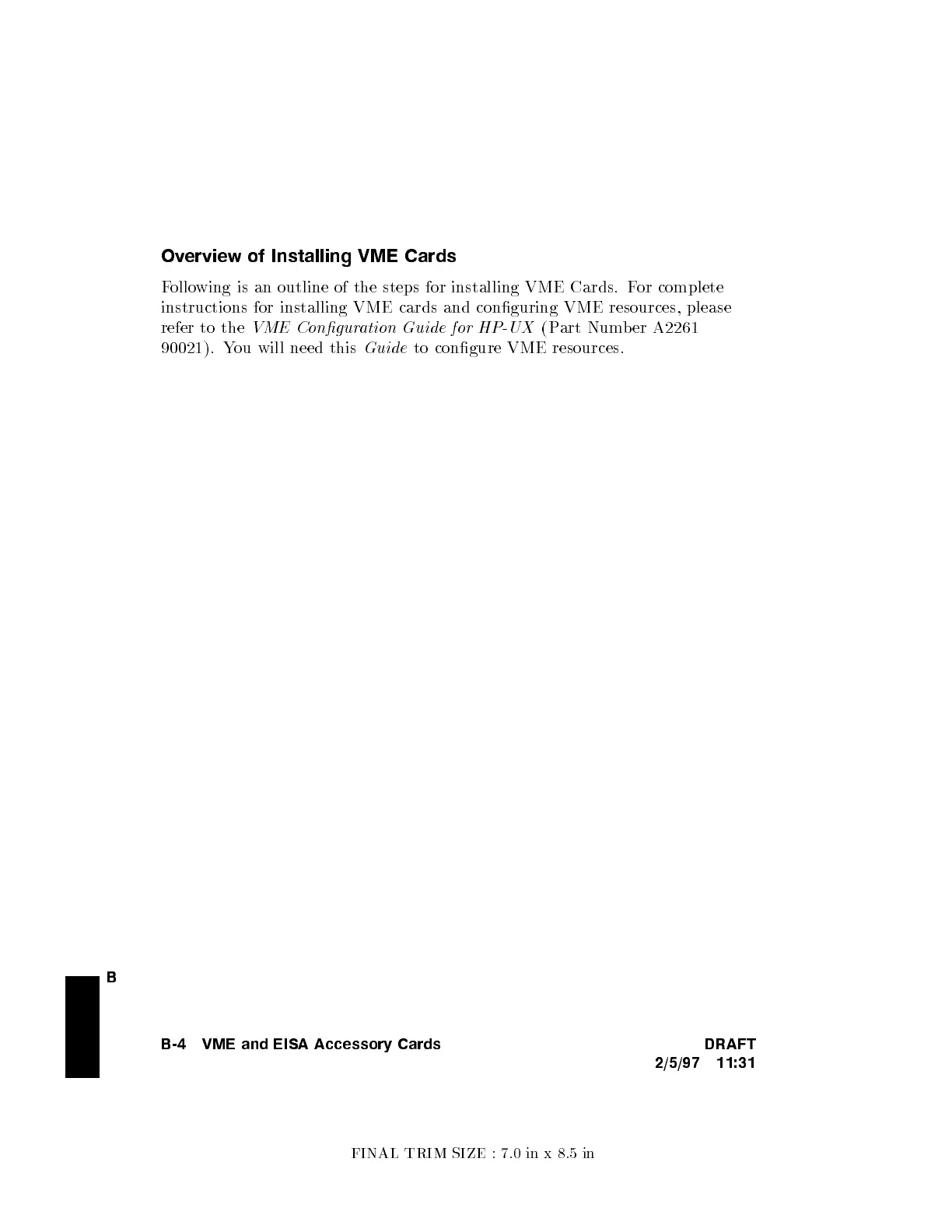

Overview of Installing VME Cards

Following is an outline of the steps for installing VME Cards. F

or complete

instructions for installing VME cards and conguring VME resources, please

refer to the

VME Conguration Guide for HP-UX

(Part Number A2261

90021). You will need this

Guide

to congure VME resources.
