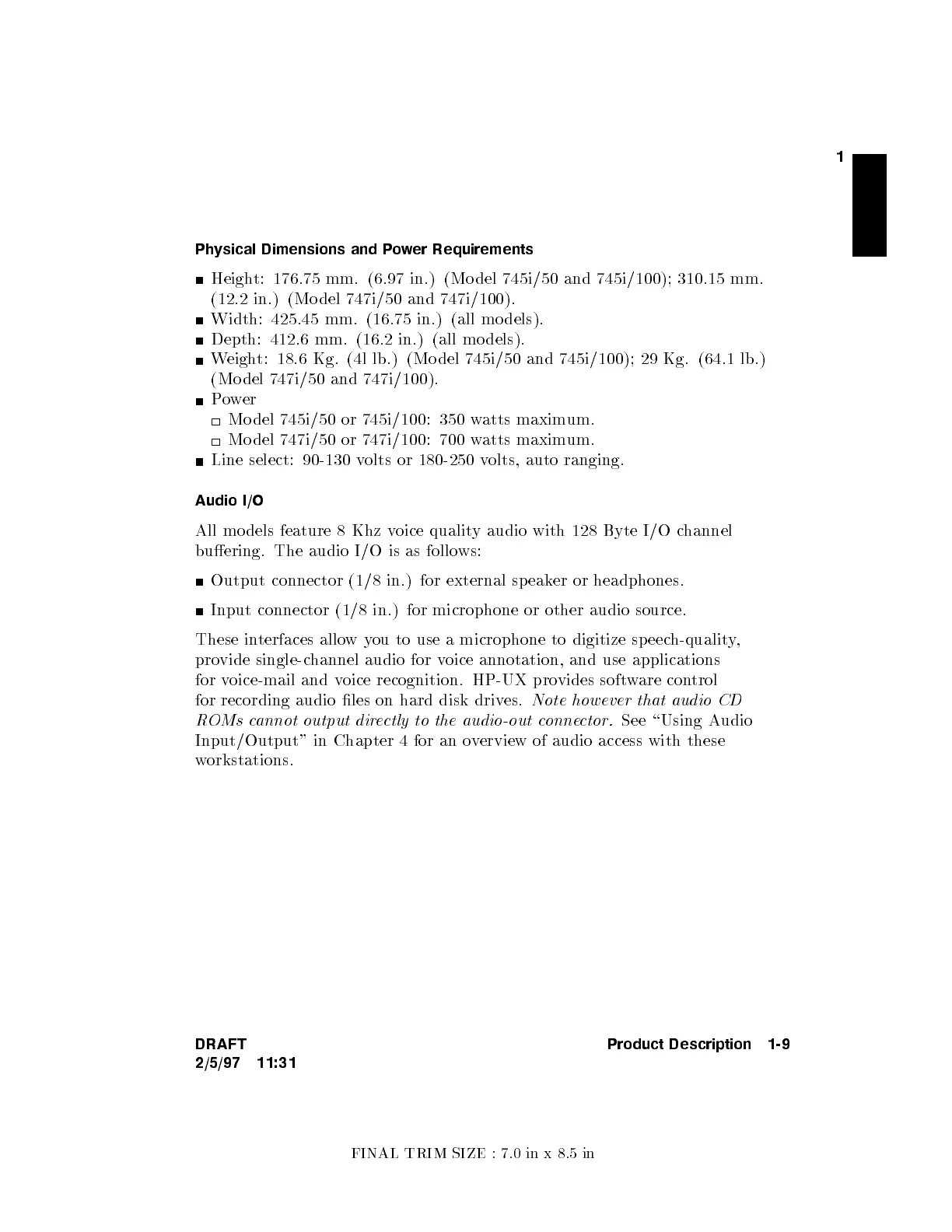

Physical Dimensions and Power Requirements
Height: 176.75 mm. (6.97 in.) (Mo del 745i/50 and 745i/100); 310.15 mm.
(12.2 in.) (Mo del 747i/50 and 747i/100).
Width: 425.45 mm. (16.75 in.) (all mo dels).
Depth: 412.6 mm. (16.2 in.) (all mo dels).
Weight: 18.6 Kg. (4l lb.) (Mo del 745i/50 and 745i/100); 29 Kg. (64.1 lb.)
(Mo del 747i/50 and 747i/100).
Power
Mo del 745i/50 or 745i/100: 350 w
atts maximum.
Mo del 747i/50 or 747i/100: 700 w
atts maximum.
Line select: 90-130 volts or 180-250 volts, auto ranging.
Audio I/O
All mo dels feature 8 Khz voice quality audio with 128 Byte I/O channel
buering. The audio I/O is as follows:
Output connector (1/8 in.) for external speak
er or headphones.
Input connector (1/8 in.) for microphone or other audio source.
These interfaces allowyou to use a microphone to digitize speec
h-quality,
provide single-channel audio for voice annotation, and use applications
for voice-mail and voice recognition. HP-UX provides software control
for recording audio les on hard disk driv
es.
Note however that audio CD
ROMs cannot output directly to the audio-out connector.
See \Using Audio
Input/Output" in Chapter 4 for an overview of audio access with these
workstations.
DRAFT
2/5/97 11:31
Product Description 1-9
