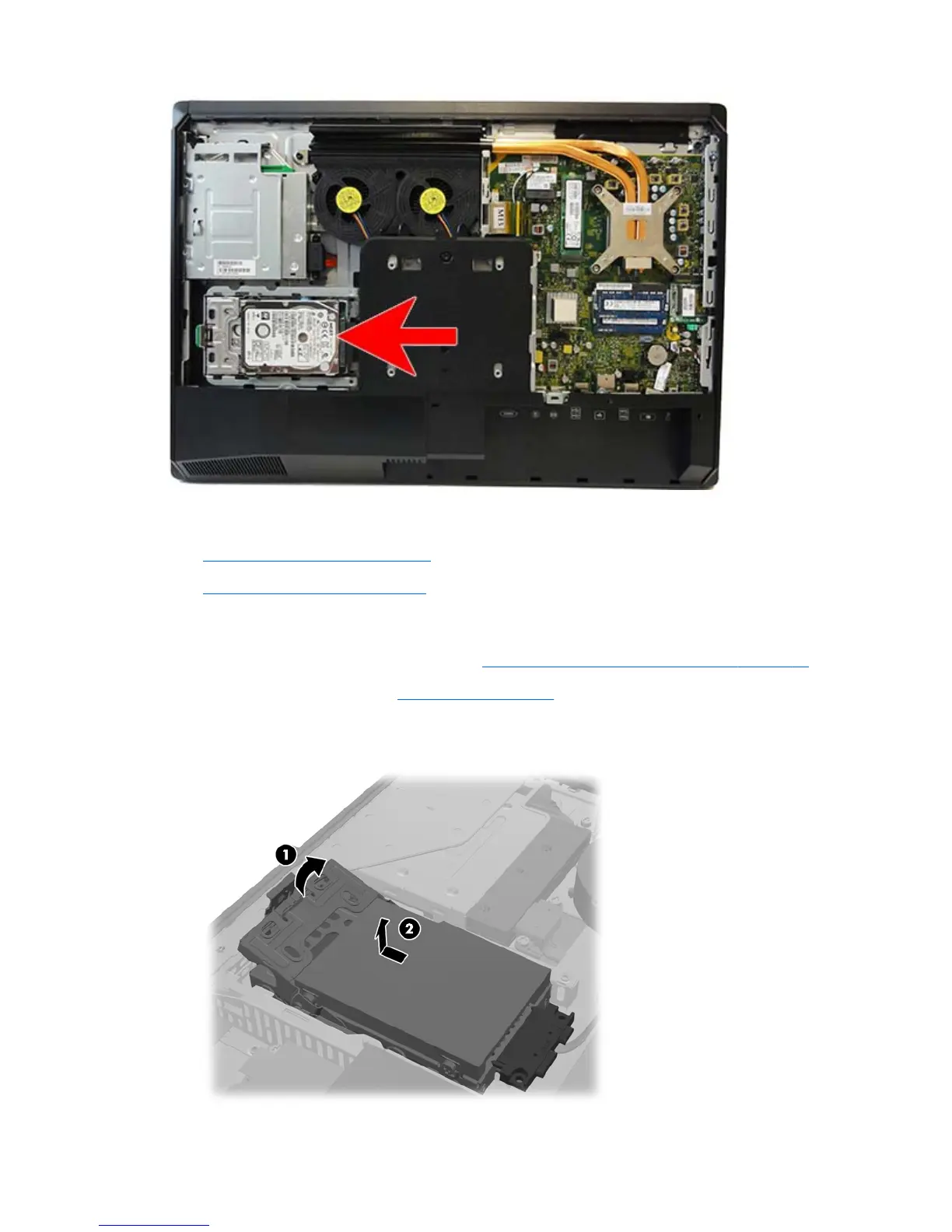

One or two 2.5-inch solid state drives (SSDs) or self-encrypting drives (SEDs) may be installed in the
computer. If a single drive is installed, it must be installed in the primary (lower) position.
●
Removing a 2.5-inch hard disc drive
●
Installing a 2.5-inch hard disc drive
Removing a 2.5-inch hard disc drive
1. Prepare the computer for disassembly (see Preparing to disassemble the computer on page 27).
2. Remove the access panel (see
Access panel on page 33).
3. Pull the latch next to the lower side of the 2.5-inch hard disc drive cage away from the cage to release
it, then slide the cage toward the edge of the chassis and lift it out.
ENWW Drives 35
