Converter board
The converter board is located on the left side of the computer (viewed from behind) under the main rear
cover. It is secured with two Torx screws and has two connectors.
Use the same converter spare part for all display panels; however, you must change jumper settings on the
board based on the display panel.
To remove the converter board:
1. Prepare the computer for disassembly (see
Preparing to disassemble the computer on page 27).
2. Remove the stand (see
Stand on page 29).
3. Remove the access panel (see
Access panel on page 33).
4. Remove the lower access panel (see
Lower rear panel on page 59).

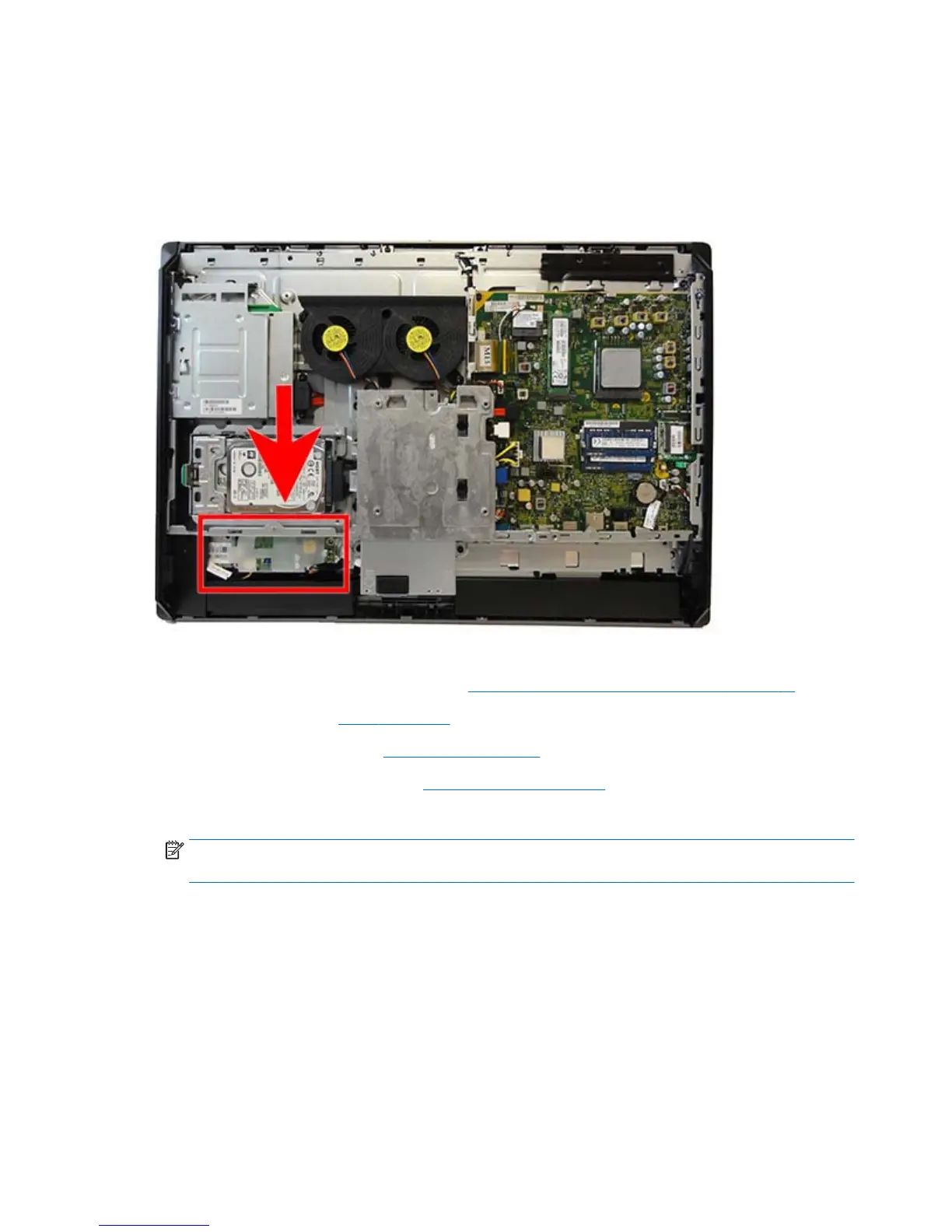

5. Disconnect the two cables from the board (1).
NOTE: Be careful not to damage the cables when disconnecting them from the board. Do not pull on
the wires.
66 Chapter 5 Removal and Replacement Procedures ENWW
