VESA mounting plate

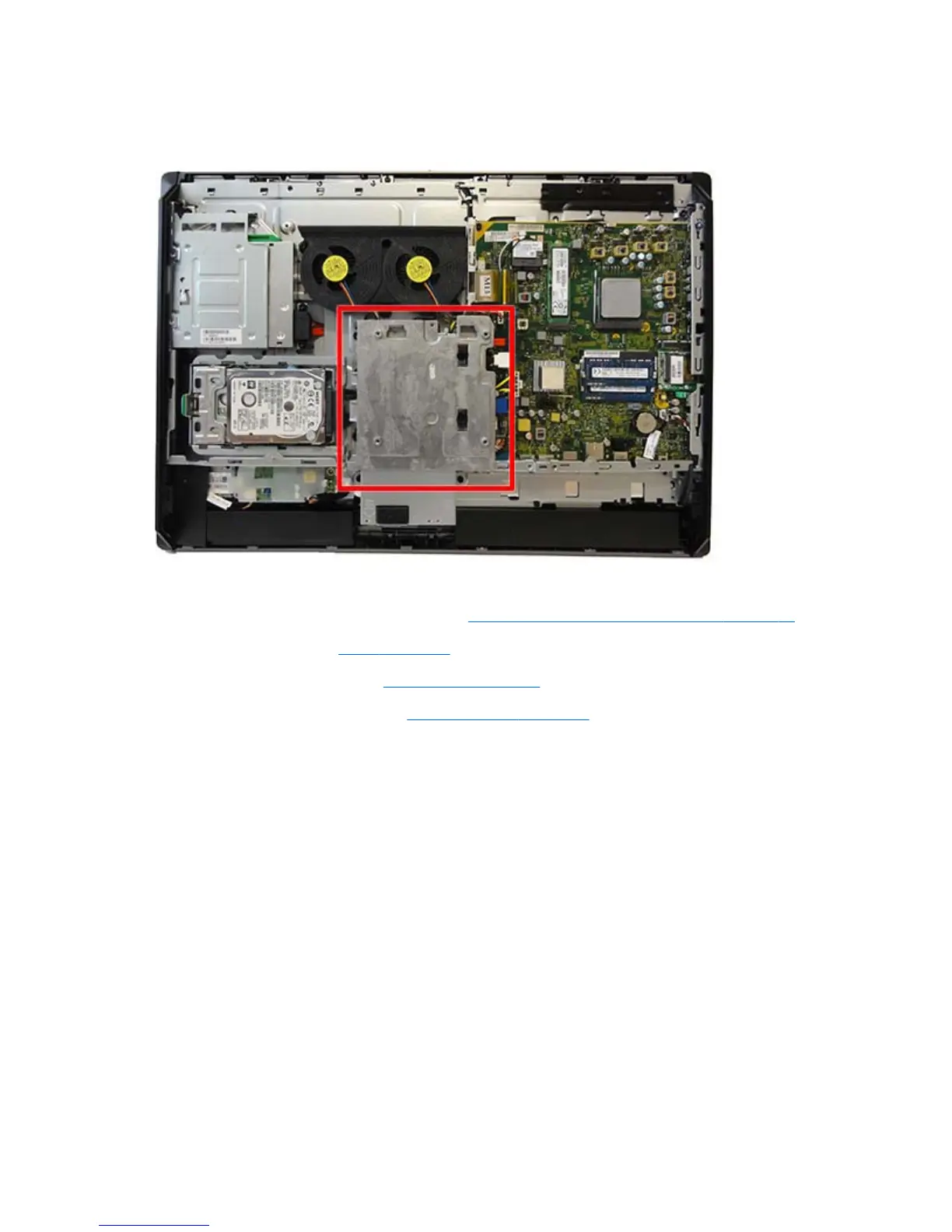

The VESA mounting plate is located under the stand and under the lower rear panel.
To remove the VESA mounting plate:
1. Prepare the computer for disassembly (see
Preparing to disassemble the computer on page 27).
2. Remove the stand (see
Stand on page 29).
3. Remove the access panel (see
Access panel on page 33).
4. Remove the lower rear panel (see
Lower rear panel on page 59).
5. Remove the four Torx screws (1) securing the plate to the chassis.
