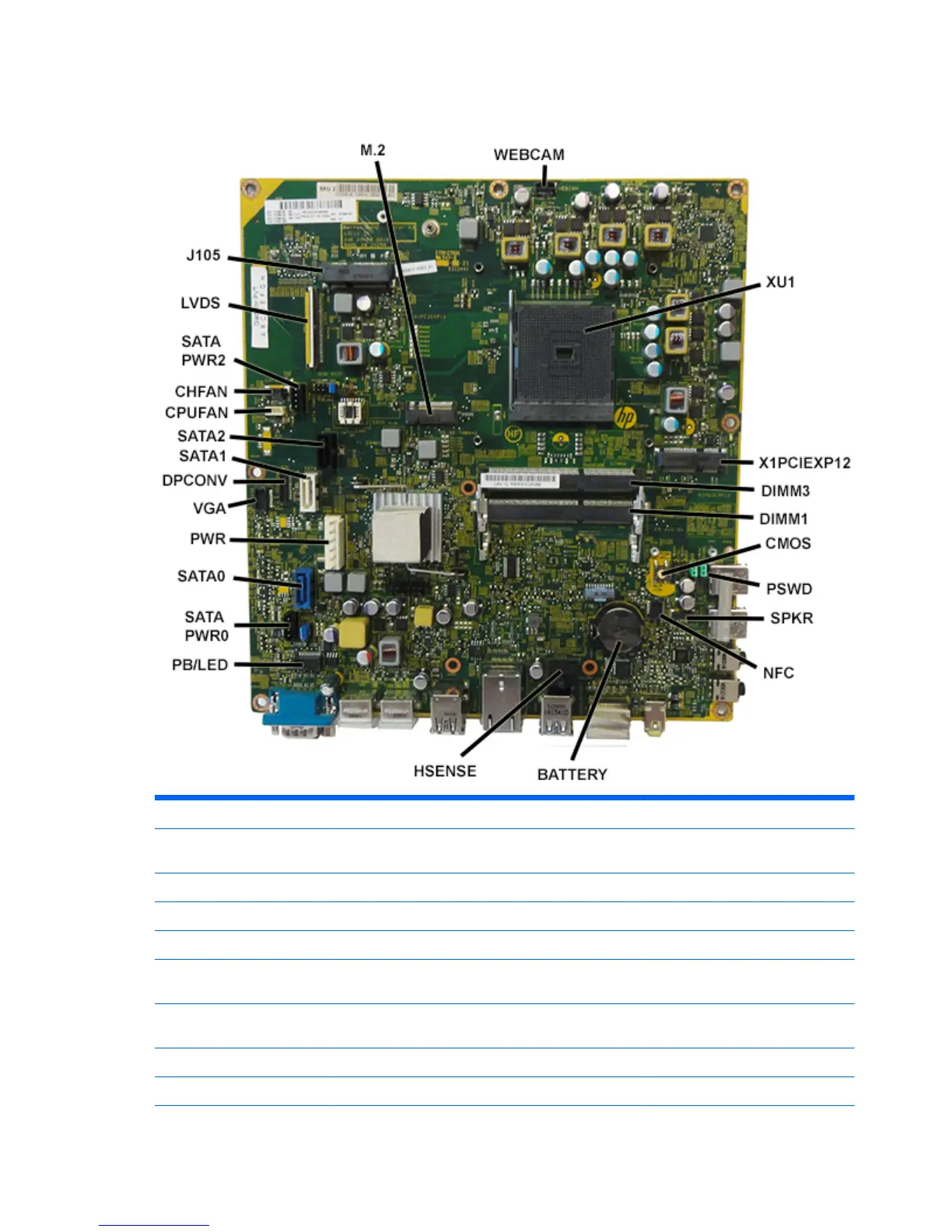

System board callouts
Sys Bd Label Color Component Sys Bd Label Color Component
M.2 Black M.2 SSD drive SATAPWR0 Black Hard drive power
connector
WEBCAM Black Webcam connector SATA0 Dark blue Hard drive
XU1 Black Processor socket PWR White Main power connector
X1PCIEXP12 Black Card reader connector VGA Black Display connector
DIMM3 Black Memory module DPCONV Black Converter board
connector
DIMM1 Black Memory module SATA1 White Second hard drive
connector
CMOS Yellow Reset CMOS SATA2 Black Optical drive connector
PSWD Green Clear system passwords CPUFAN White Fan connector
82 Chapter 5 Removal and Replacement Procedures ENWW
