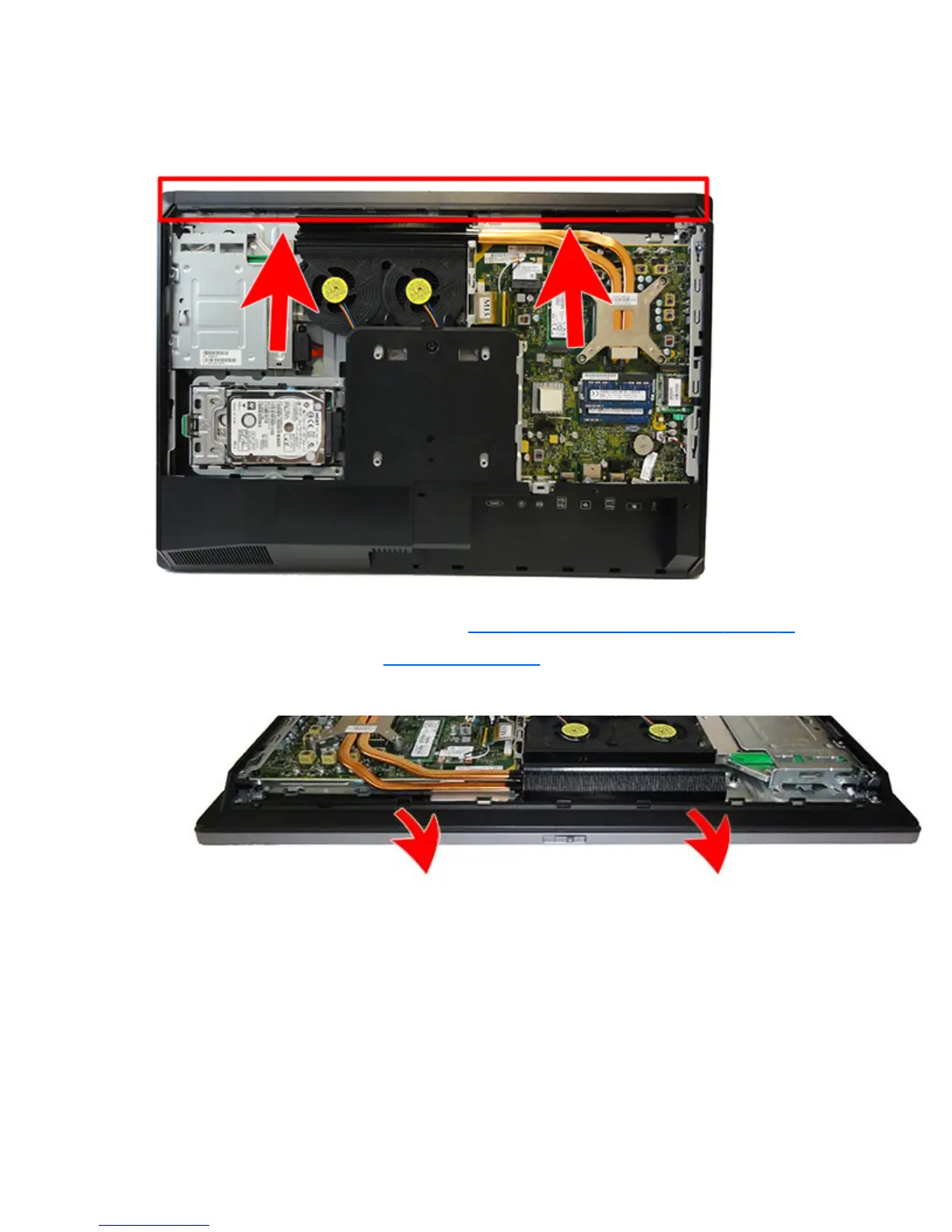

Top rear trim
The top rear trim is located along the top of the back of the computer.
To remove the top rear trim:
1. Prepare the computer for disassembly (see
Preparing to disassemble the computer on page 27).
2. Remove the access panel (see
Access panel on page 33).
3. Rotate the bottom of the trim up and off the computer. When installed, the trim snaps in to place.
To install the top rear trim, reverse the removal procedures.
54 Chapter 5 Removal and Replacement Procedures ENWW
