mSATA Solid-State Drive
The mSATA SSD is located on the system board to the left of the heat sink/processor. The drive is secured
with one Phillips screw.

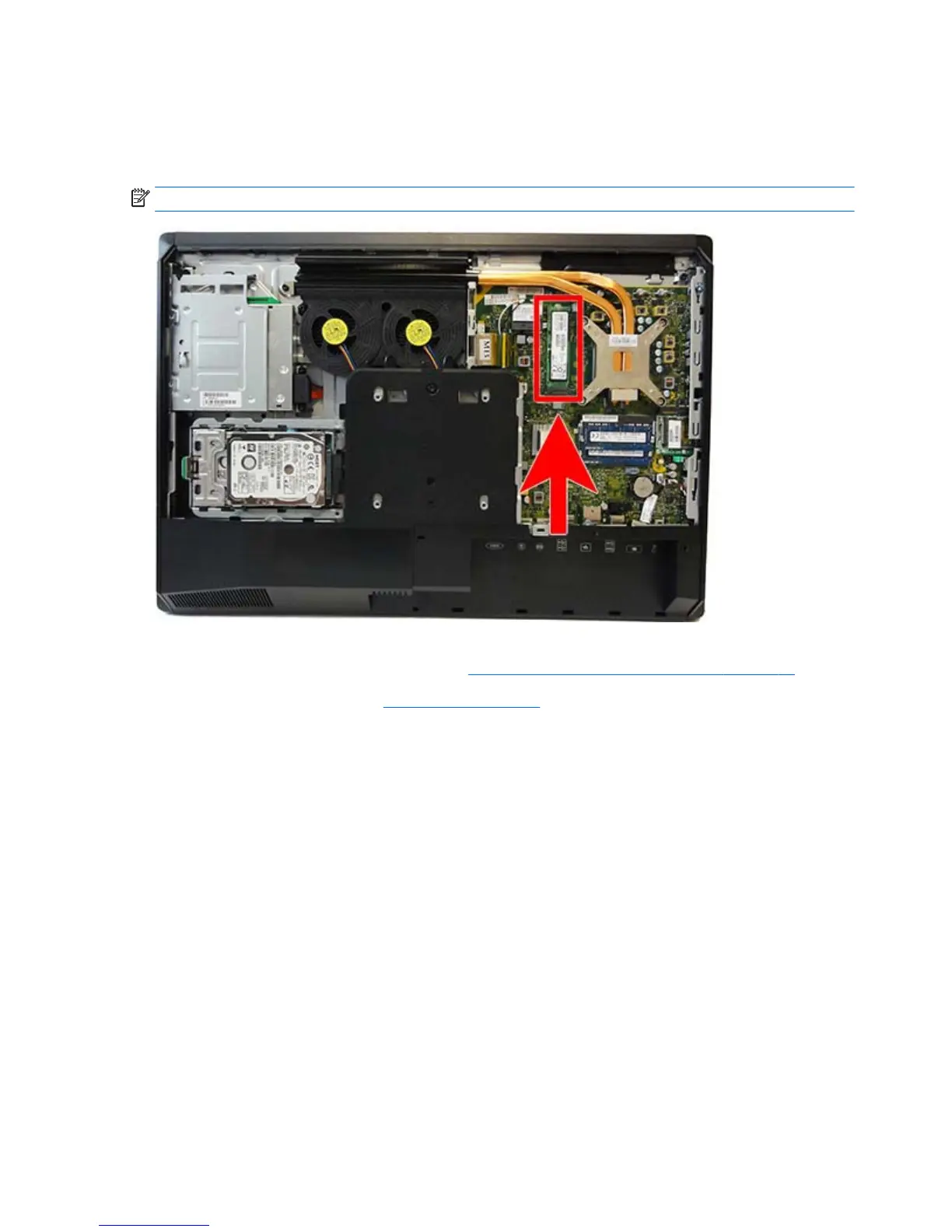

NOTE: In the following image, the mSATA SSD is not shown.
To remove the mSATA SSD:
1. Prepare the computer for disassembly (see
Preparing to disassemble the computer on page 27).
2. Remove the access panel (see
Access panel on page 33).
3. Remove the Phillips screw (1) that secures the SSD to the computer.
42 Chapter 5 Removal and Replacement Procedures ENWW
