Power button board
Description
Power button board
Mylar cover (power button board)

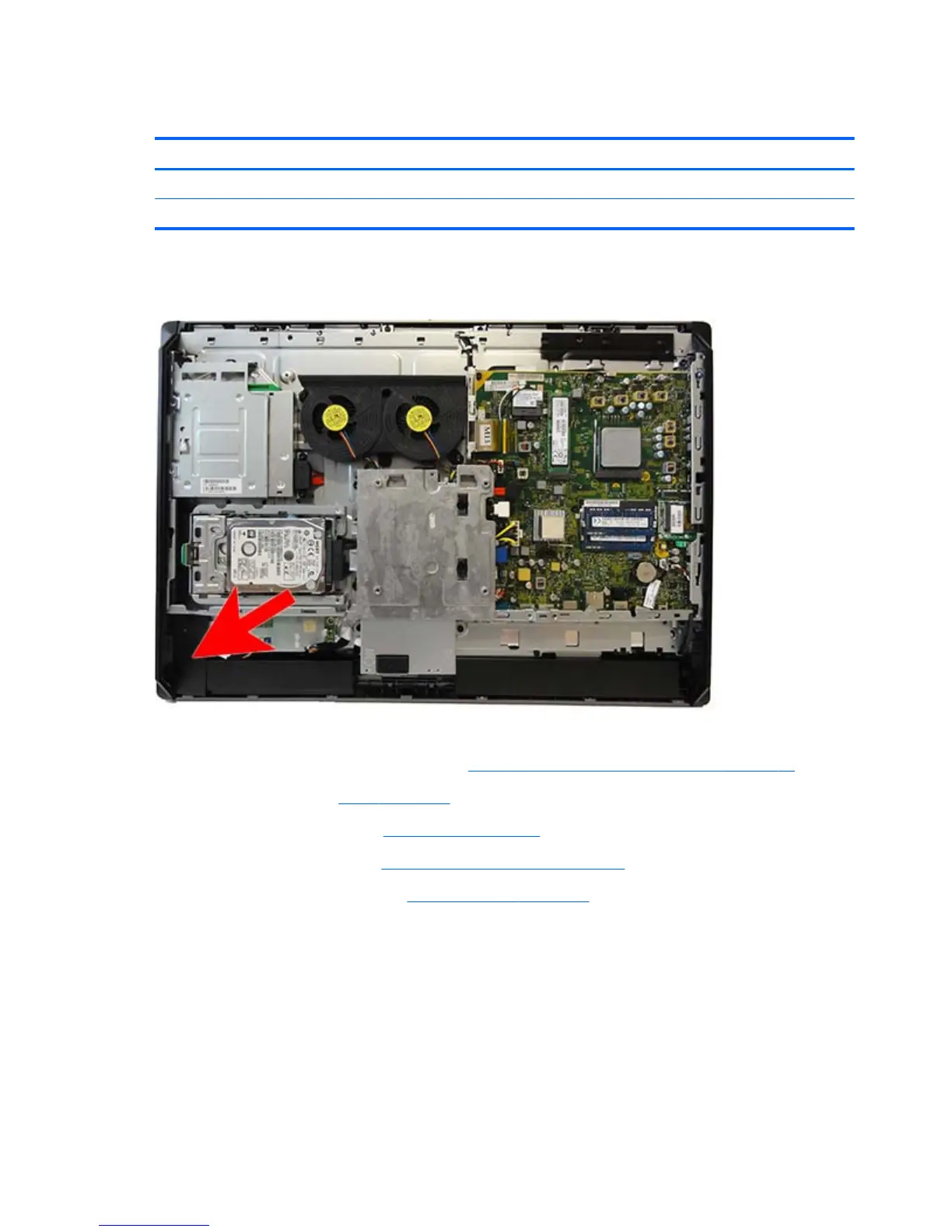

The power button board is located on the bottom left corner of the computer under the lower rear panel. It is
under a Mylar cover and has two connectors and one screw.
To remove the power button board:
1. Prepare the computer for disassembly (see
Preparing to disassemble the computer on page 27).
2. Remove the stand (see
Stand on page 29).
3. Remove the access panel (see
Access panel on page 33).
4. Remove the optical drive (see
Replacing the optical drive on page 39).
5. Remove the lower rear panel (see
Lower rear panel on page 59).
68 Chapter 5 Removal and Replacement Procedures ENWW
