Card reader board

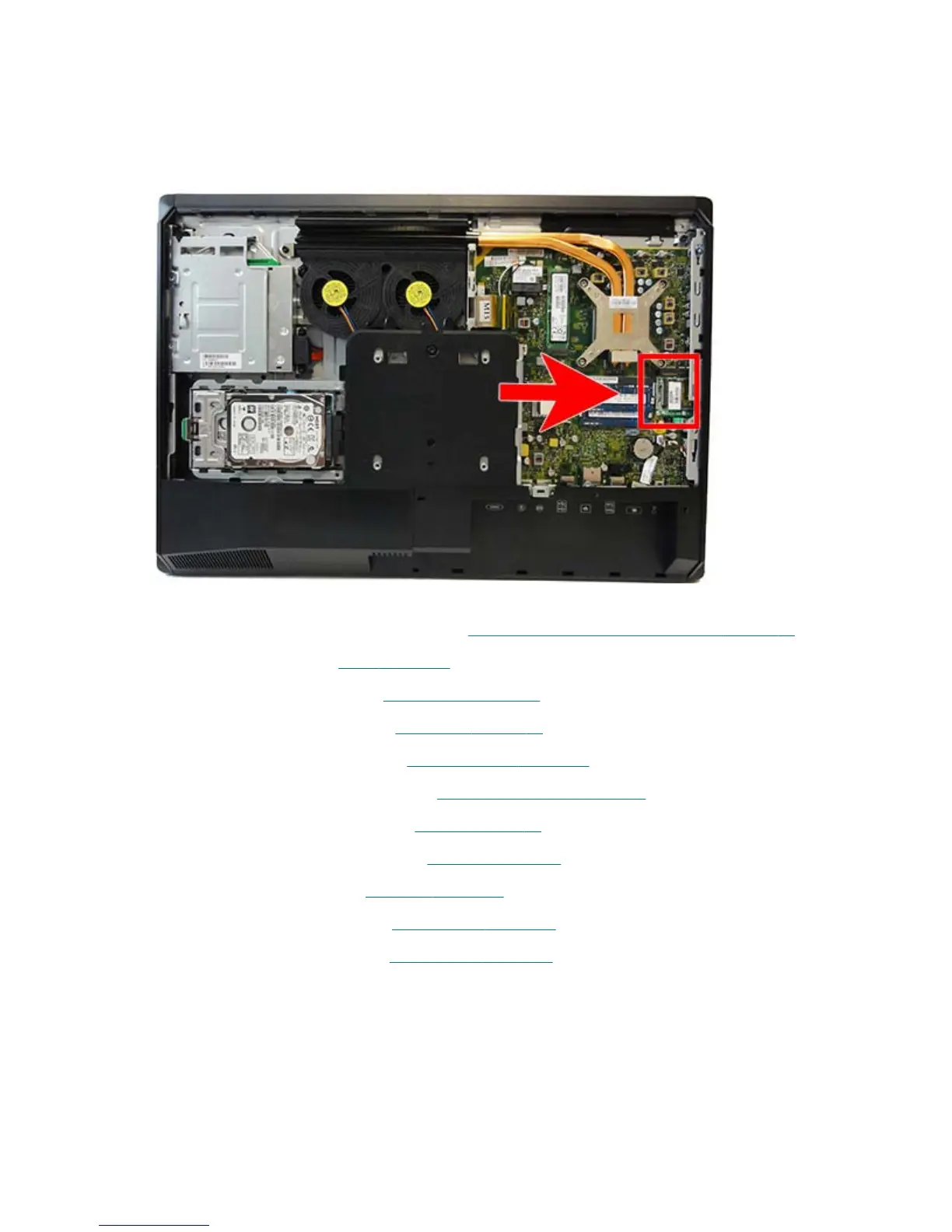

The card reader board is located on the right side of the system board. You must remove the system board
before you can remove the card reader board. The card reader board is secured with two screws.
To remove the card reader board:
1. Prepare the computer for disassembly (see
Preparing to disassemble the computer on page 27).
2. Remove the stand (see
Stand on page 29).
3. Remove the access panel (see
Access panel on page 33).
4. Remove the ride side panel (see
Side panels on page 76).
5. Remove the lower rear panel (see
Lower rear panel on page 59).
6. Remove the VESA mounting plate (see
VESA mounting plate on page 72).
7. Remove the memory modules (see
Memory on page 44).
8. Remove the processor heat sink (see
Heat sink on page 51).
9. Remove the processor (see
Processor on page 53).
10. Remove the WLAN module (see
WLAN module on page 49).
11. Remove the system board (see
System board on page 78).
12. Remove the two Phillips screws that secure the board to the system board.
13. Position the system board upright with the right side toward you.
84 Chapter 5 Removal and Replacement Procedures ENWW
