HP EliteOne 705 G1 User Manual

Fan assembly

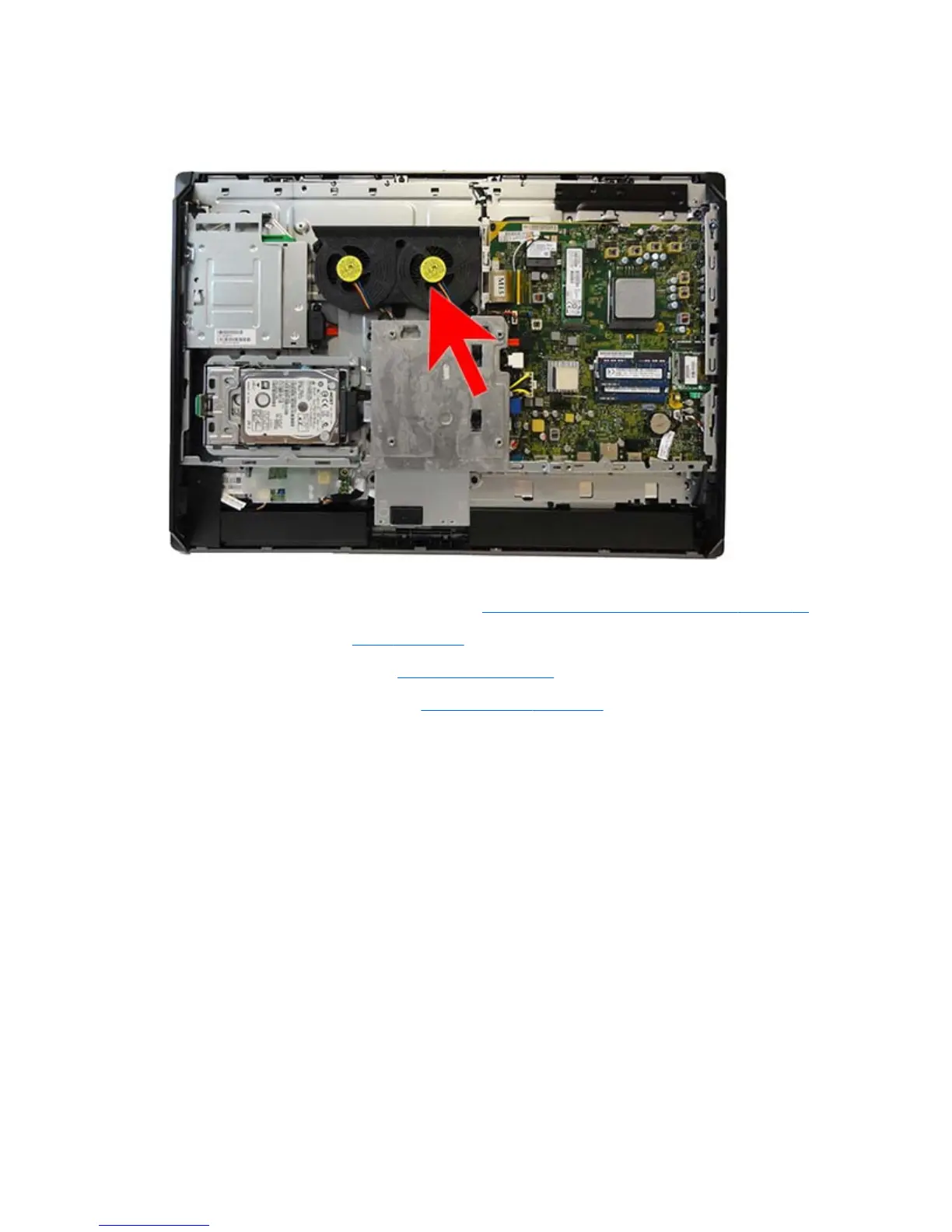

The fan assembly is located near the middle of the computer and is secured with three Torx screws.
To remove the fan assembly:
1. Prepare the computer for disassembly (see
Preparing to disassemble the computer on page 27).
2. Remove the stand (see
Stand on page 29).
3. Remove the access panel (see
Access panel on page 33).
4. Remove the lower rear panel (see
Lower rear panel on page 59).
5. Disconnect the two fan cables from the system board.
6. Remove the three Torx screws that secure the fan assembly to the computer (1).
ENWW Fan assembly 61
