Side panels
Description
Left side panel
Right side panel

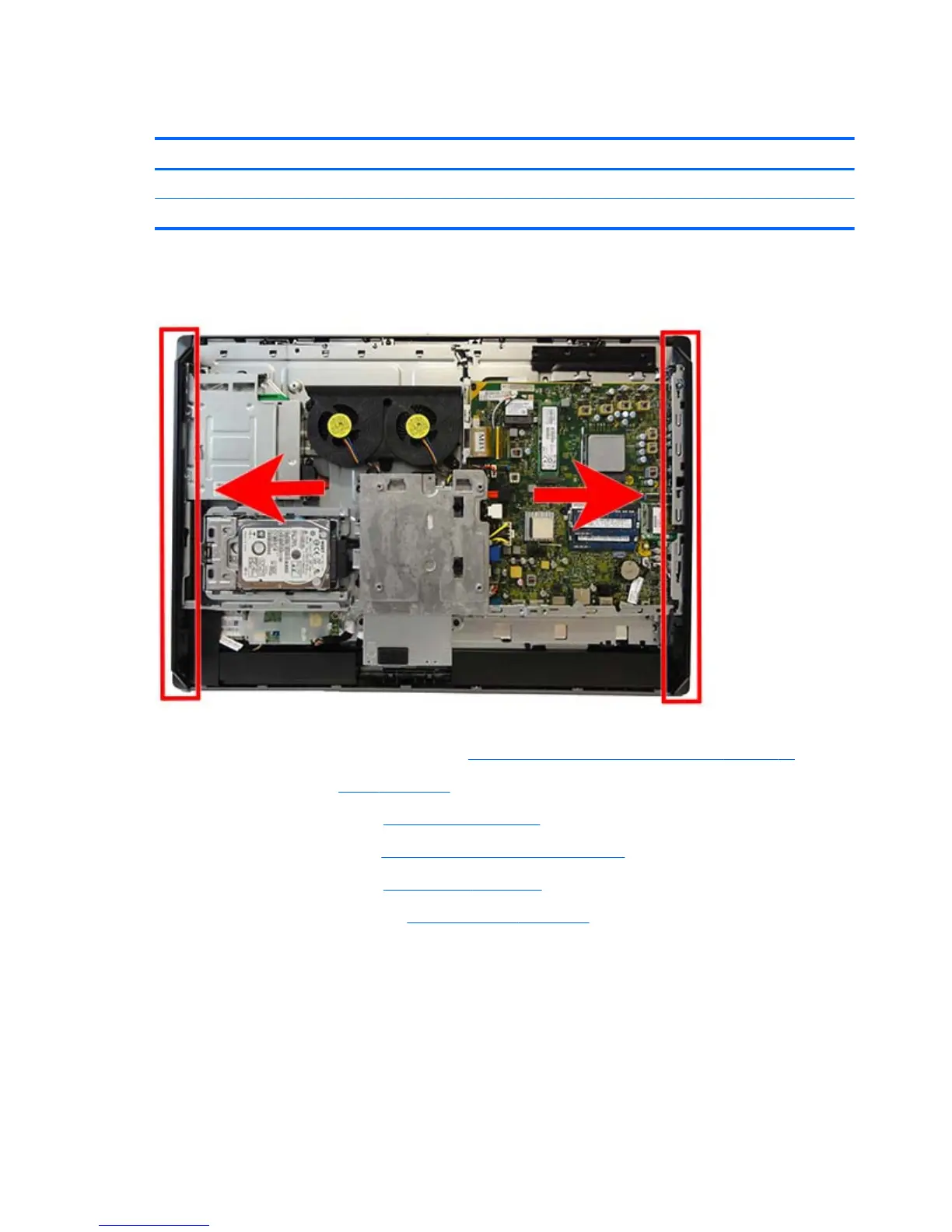

The side panels are located one each side of the computer. They are secured with tabs, and the removal
procedures are similar for both panels.
To remove the side panels:
1. Prepare the computer for disassembly (see
Preparing to disassemble the computer on page 27).
2. Remove the stand (see
Stand on page 29).
3. Remove the access panel (see
Access panel on page 33).
4. Remove the optical drive (see
Replacing the optical drive on page 39).
5. Remove the top rear trim (see
Top rear trim on page 54).
6. Remove the lower rear panel (see
Lower rear panel on page 59).
