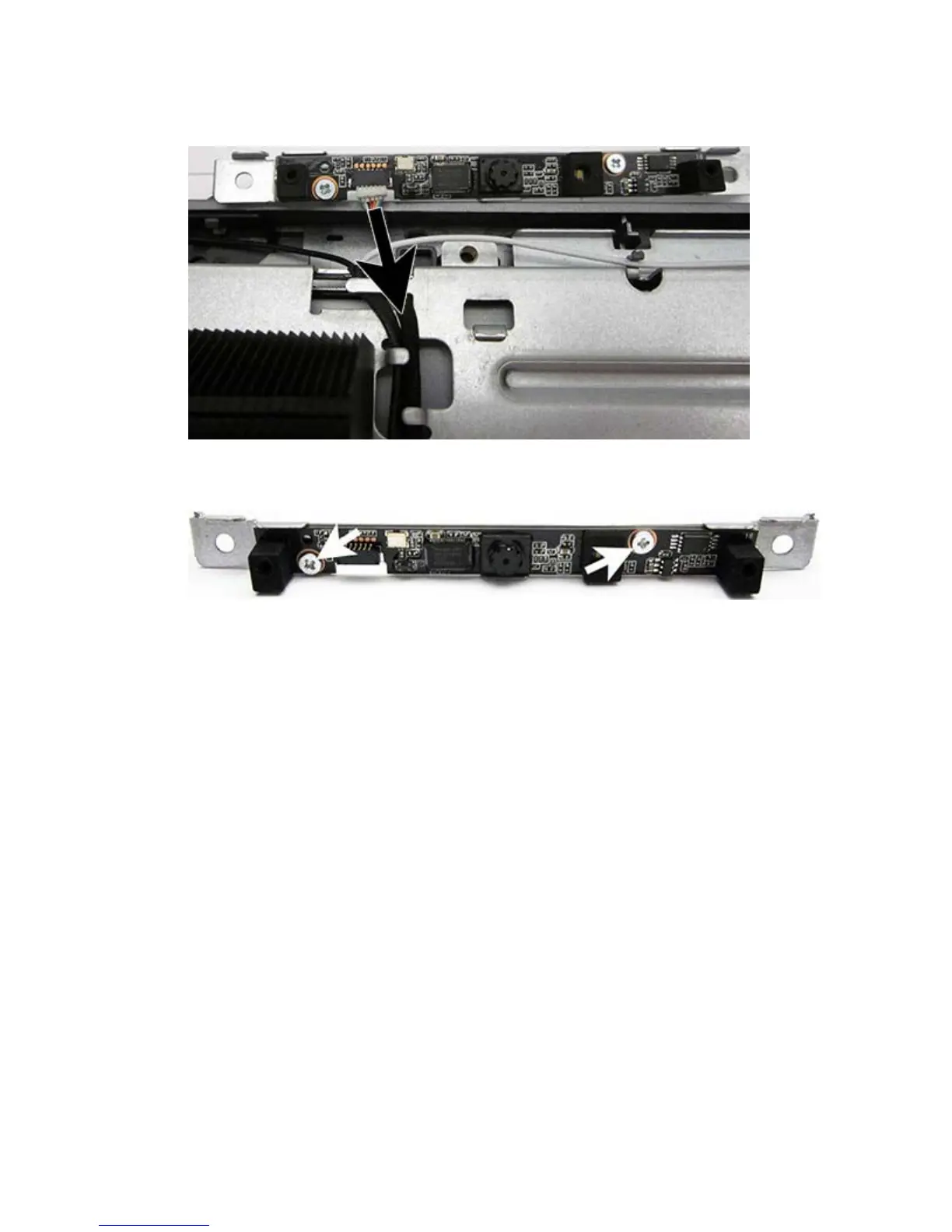

5. Rotate the assembly to gain access to the connector on the module, and then disconnect the cable from
the module.
6. To remove the module from the bracket, remove the two Phillips screws that secure the module, and
then separate the module from the bracket.
To install a webcam module, reverse the removal procedures.
