6.

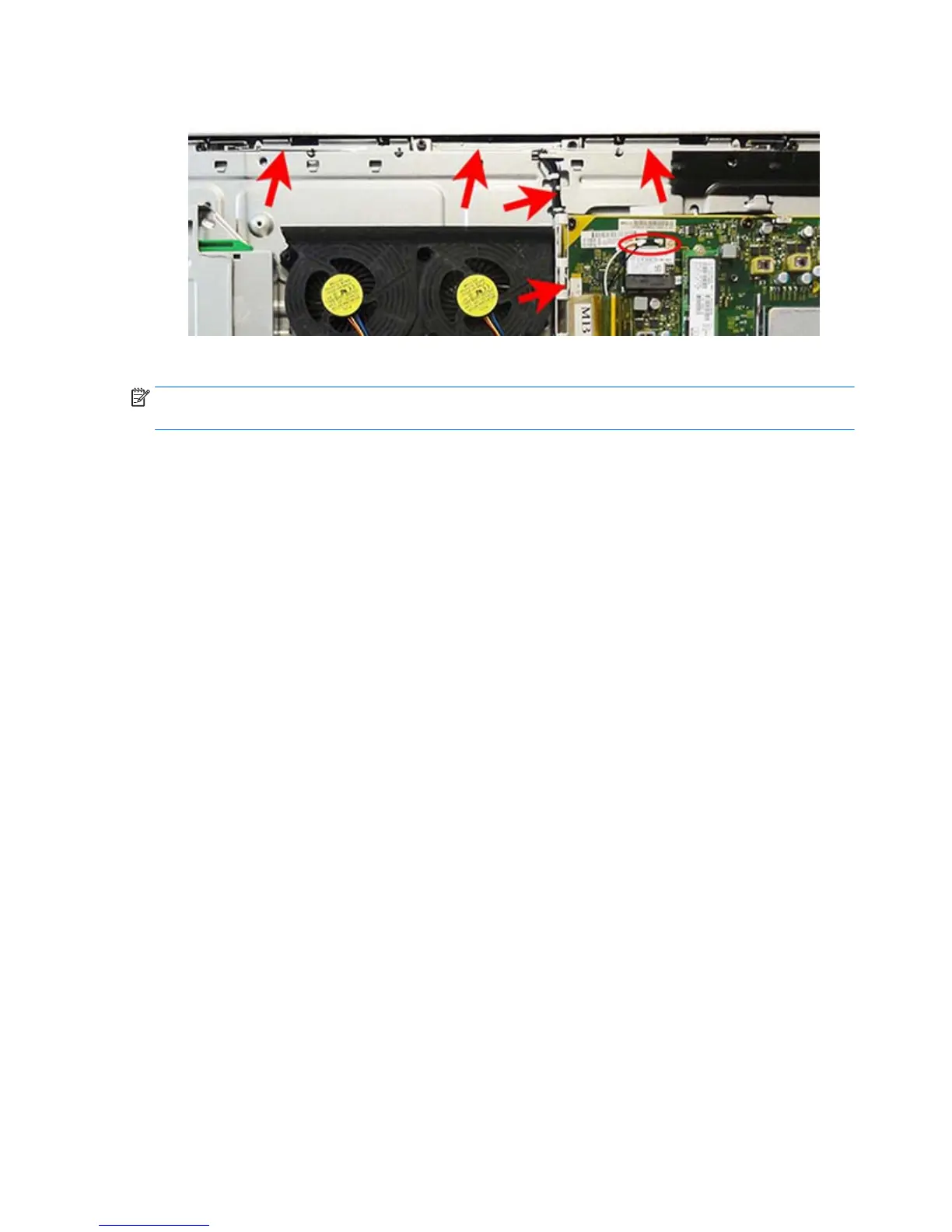

Note the routing path for ea
ch antenna for replacement.
To install the antenna, reverse the removal procedures.
NOTE:
When connecting the antenna
s cables, connect
the cable labeled
“1” to the MAIN connector on the
module and the cable labe
led “2” to
the AUX connector
on the module.
58
Chapter 5 Removal and Replacement Procedures
ENWW
67
69
Table of Contents
Default Chapter
3
About this Book
3
Table of Contents
5
1 Product Features
11
Overview
11
Front Components
13
Side Components
14
Rear Components
15
Positioning the Computer
16
Adjusting the Height-Adjustable/Reclining Stand (Optional)
17
Adjusting the Tilt/Swivel Stand (Optional)
18
2 Activating and Customizing the Software
19
Activating and Customizing the Software in Windows 7
19
Activating the Windows Operating System
19
Downloading Windows 7 Updates
19
Installing or Upgrading Device Drivers
20
Customizing the Monitor Display
20
Activating and Customizing the Software in Windows 8
20
Activating the Windows Operating System
20
Downloading Windows 8 Updates
20
Customizing the Monitor Display
21
3 Illustrated Parts Catalog
23
System Parts
23
Keyboards and Mice
24
Misc Parts
25
Mass Storage Devices
26
Boards
27
Cables
28
4 Routine Care, SATA Drive Guidelines, and Disassembly Preparation
29
Electrostatic Discharge Information
29
Generating Static
30
Preventing Electrostatic Damage to Equipment
30
Personal Grounding Methods and Equipment
30
Grounding the Work Area
31
Recommended Materials and Equipment
31
Operating Guidelines
32
Routine Care
32
General Cleaning Safety Precautions
32
Cleaning the Computer Case
33
Cleaning the Keyboard
33
Cleaning the Monitor
34
Cleaning the Mouse
34
Service Considerations
34
Power Supply Fan
34
Tools and Software Requirements
34
Screws
34
Cables and Connectors
35
Hard Drives
35
Lithium Coin Cell Battery
35
SATA Hard Drive Cables
36
SATA Data Cable
36
Cable Management
36
5 Removal and Replacement Procedures
37
Preparing to Disassemble the Computer
37
Removing the Rear I/O Cover
38
Stand
39
Height-Adjustable/Recline Stand (Optional)
39
Tilt/Swivel Stand (Optional)
41
Installing an Access Panel Security Screw
42
Access Panel
43
Drives
44
Replacing a Hard Disc Drive
44
Removing a 2.5-Inch Hard Disc Drive
45
Installing a 2.5-Inch Hard Disc Drive
46
Replacing the Optical Drive
49
Msata Solid-State Drive
52
Memory
54
Battery
57
WLAN Module
59
Heat Sink
61
Processor
63
Top Rear Trim
64
Webcam Module
65
Antenna
67
Lower Rear Panel
69
Fan Assembly
71
Speakers
73
Converter Board
76
Power Button Board
78
NFC Sensor Board
80
VESA Mounting Plate
82
Power Supply
84
Side Panels
86
System Board
88
System Board Callouts
92
Card Reader Board
94
Front Bezel and Display Panel
95
Hard Drive and Optical Drive Cables and Connectors
101
6 Computer Setup (F10) Utility
103
Computer Setup (F10) Utilities
103
Using Computer Setup (F10) Utilities
104
Computer Setup-File
105
Computer Setup-Storage
106
Computer Setup-Security
108
Computer Setup-Power
112
Computer Setup-Advanced
113
Recovering the Configuration Settings
116
7 HP PC Hardware Diagnostics
117
Why Run HP PC Hardware Diagnostics
117
How to Access and Run HP PC Hardware Diagnostics
117
Downloading HP PC Hardware Diagnostics (UEFI) to a USB Device
118
8 Troubleshooting Without Diagnostics
119
Safety and Comfort
119
Before You Call for Technical Support
119
Helpful Hints
120
Solving General Problems
122
Solving Power Problems
126
Solving Hard Drive Problems
127
Solving Media Card Reader Problems
129
Solving Display Problems
130
Solving Audio Problems
136
Solving Printer Problems
138
Solving Keyboard and Mouse Problems
139
Solving Hardware Installation Problems
141
Solving Network Problems
143
Solving Memory Problems
146
Solving Processor Problems
148
Solving CD-ROM and DVD Problems
148
Solving USB Flash Drive Problems
150
Solving Front Panel Component Problems
151
Solving Internet Access Problems
152
Solving Software Problems
153
9 System Backup and Recovery
155
Backing Up, Restoring, and Recovering in Windows 8
155
Creating Recovery Media and Backups
155
Restoring and Recovering Using Windows 8 Tools
156
Using Windows 8 Refresh
156
Using Windows 8 Reset
157
Recovery Using the Windows 8 Recovery USB Flash Drive
158
Recovery Using Windows 8 Operating System Media (Purchased Separately)
158
Backing Up, Restoring, and Recovering in Windows 7
160
Creating Recovery Media
160
Creating Recovery Media Using HP Recovery Manager (Select Models Only)
161
Creating Recovery Discs with HP Recovery Disc Creator (Select Models Only)
162
Creating Recovery Discs
162
Backing up Your Information
162
System Restore
163
System Recovery
163
System Recovery When Windows Is Responding
164
System Recovery When Windows Is Not Responding
164
System Recovery Using Recovery Media (Select Models Only)
165
Using HP Recovery Disc Operating System Discs (Select Models Only)
165
10 POST Error Messages
167
POST Numeric Codes and Text Messages
168
Interpreting POST Diagnostic Front Panel Leds
175
11 Password Security and Resetting CMOS
179
Resetting the Password Jumper
180
Establishing a Setup or Power-On Password
181
Resetting the Setup and Power-On Password
181
Changing a Setup or Power-On Password
182
Clearing and Resetting the CMOS
182
Appendix A Power Cord Set Requirements
185
General Requirements
185
Japanese Power Cord Requirements
185
Country-Specific Requirements
186
Appendix B Statement of Volatility
187
Appendix C Specifications
189
Index
191
