Connecting the 650W AC power supply
1. Insert the female connector of the AC power cord supplied with the power supply into the power
receptacle on the power supply.
2. Use a cable tie to secure the power cord to the handle of the power supply, as shown in Figure 33.
3. Connec
t the other end of the power cord to an AC power outlet.

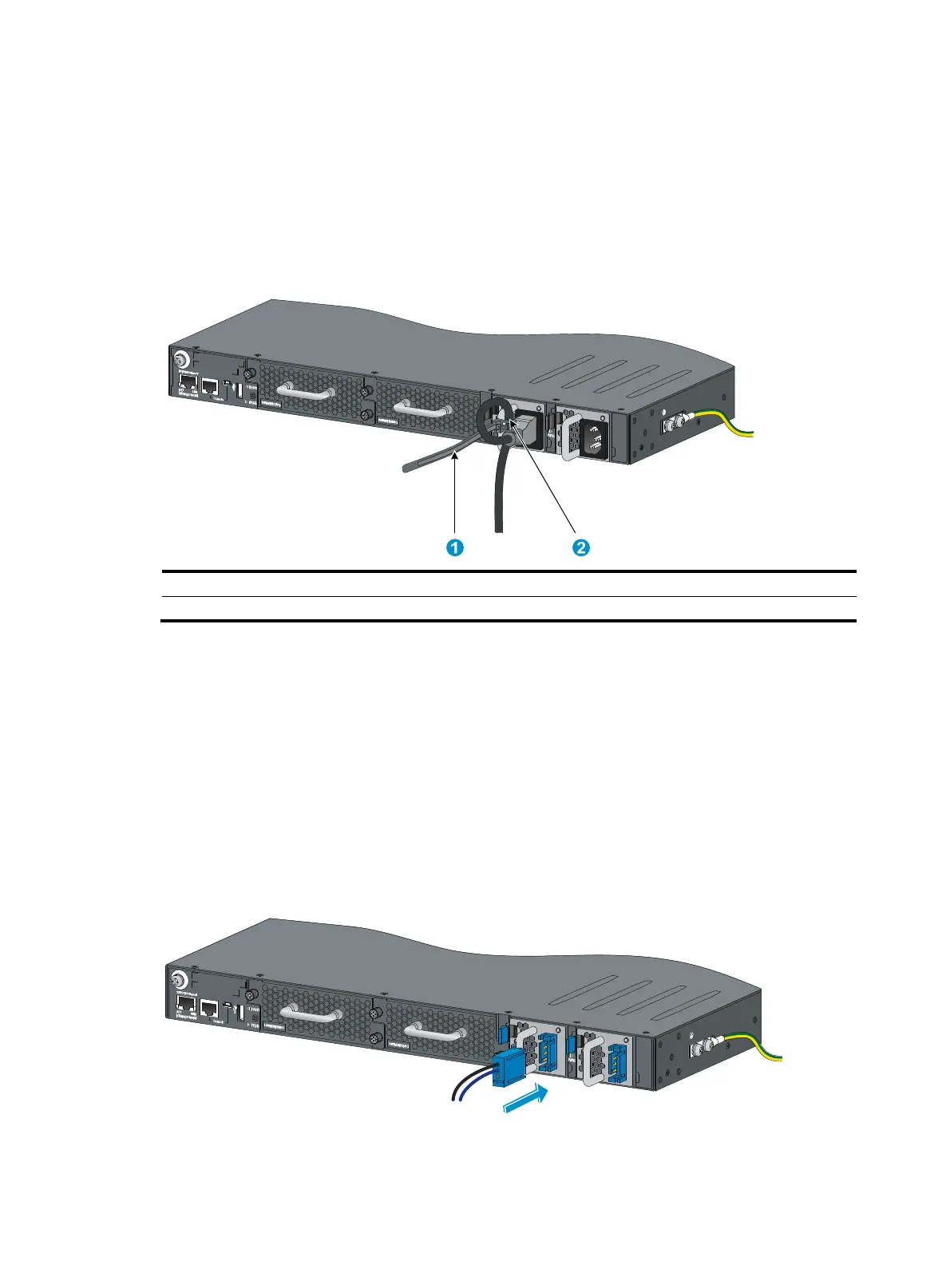

Figure 33 Connecting the 650W AC power supply
(1) Cable tie
(2) Ti
g
hten the cable tie to secure the power cord to the handle of the power supply
Connecting the 650W DC power supply
1. Unpack the DC power cord, identify the plug for connecting to the power supply, orient the plug
with the power receptacle on the power supply, and insert the plug into the receptacle (see Figure
34).
T
he receptacle is foolproof. If you cannot insert the plug into the receptacle, re-orient the plug
rather than use excessive force to push it in.
2. Use a cable tie to secure the power cord to the handle of the power supply, as shown in Figure 33.
3. Connect the other end of th
e power cord to the DC power source.
Figure 34 Connecting the 650W DC power supply
