The HP 5930-2Slot+2QSFP+/HP 5930-2Slot+2QSFP+ TAA switch comes with the two fan tray slots
empty. You must install two fan trays of the same model for the switch. In Figure 54, t
wo LSWM1HFANSC
fan trays are installed in the fan tray slots. For more information about installing and removing fan trays,
"Installing/removing a fan tray."

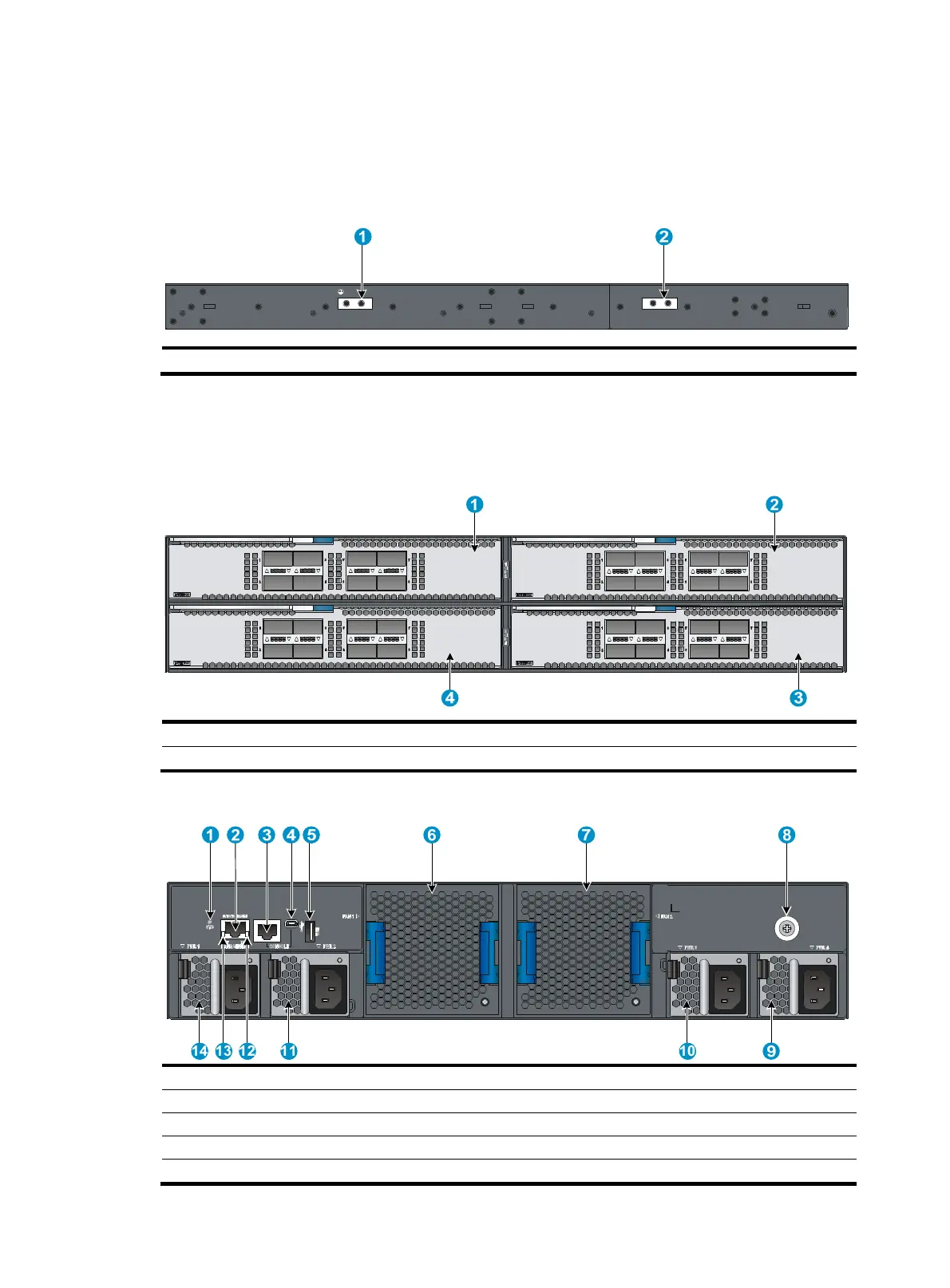

Figure 55 Left side panel
(1) Primary
g
roundin
g
point (2) Auxiliary
g
roundin
g
point 1
HP 5930-4Slot/HP 5930-4Slot TAA
Figure 56 Front panel
(1) Interface module slot 1 (2) Interface module slot 2
(3) Interface module slot 4 (4) Interface module slot 3
Figure 57 Rear panel
(1) System status LED (SYS) (2) Mana
g
ement Ethernet port
(3) Serial console port (4) USB mini console port
(5) USB port (6) Fan tray slot 1
(7) Fan tray slot 2 (8) Groundin
g
screw (auxiliary
g
roundin
g
point 2)
(9) Power supply slot 4 (10) Power supply slot 3
