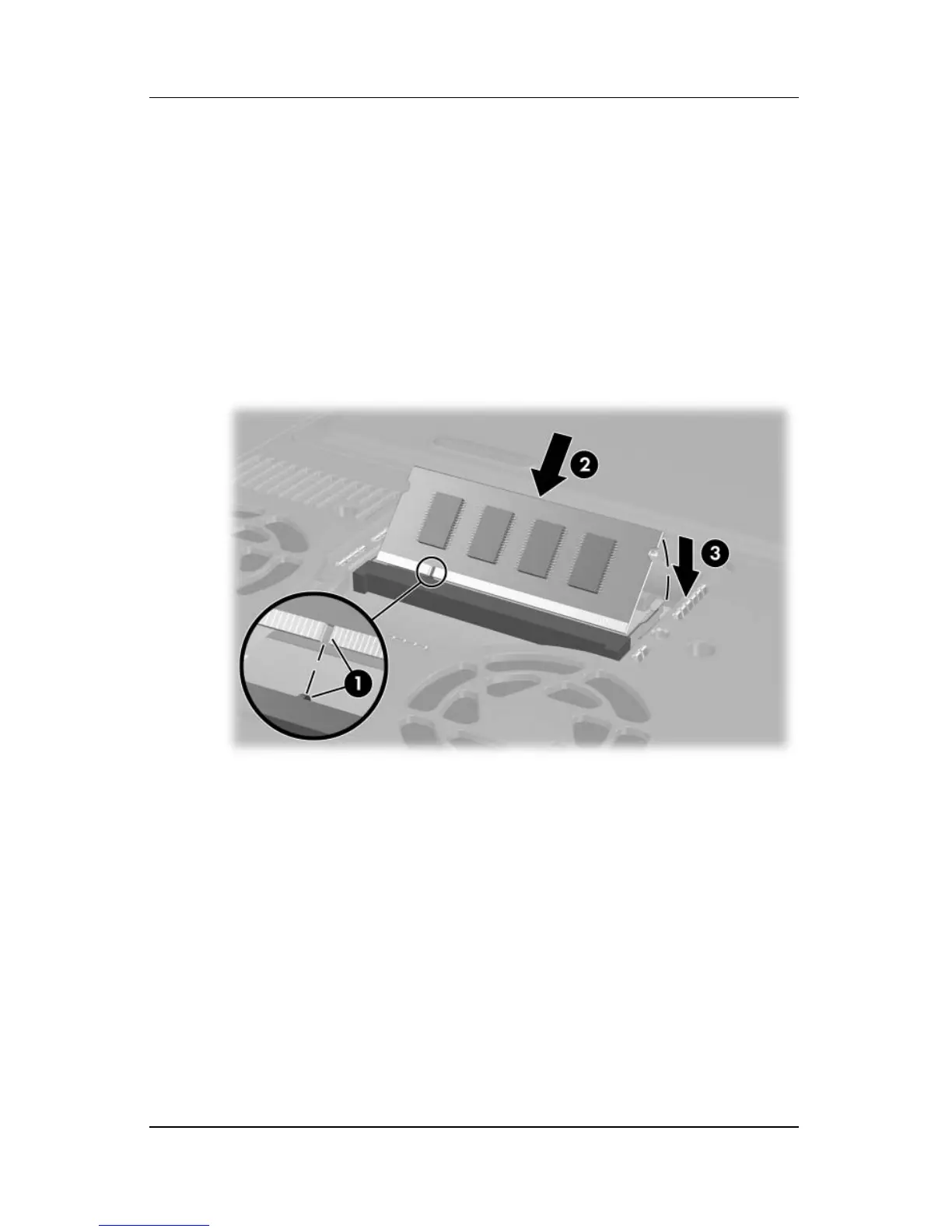

To insert a memory module:
a. Align the keyed (notched) edge of the module with the
keyed area in the memory slot 1.
b. With the module at a 45-degree angle from the surface
of
the memory compartment, press the module into the
memory slot
until it is seated 2.
c. Push the module down until the retention clips snap
into
place 3.
