HP ProCurve Series 2810 User Manual

6-32
Quality of Service (QoS): Managing Bandwidth More Effectively
Using QoS Types To Configure QoS for Outbound Traffic
2. Configure the priorities for the DSCPs you want to use.

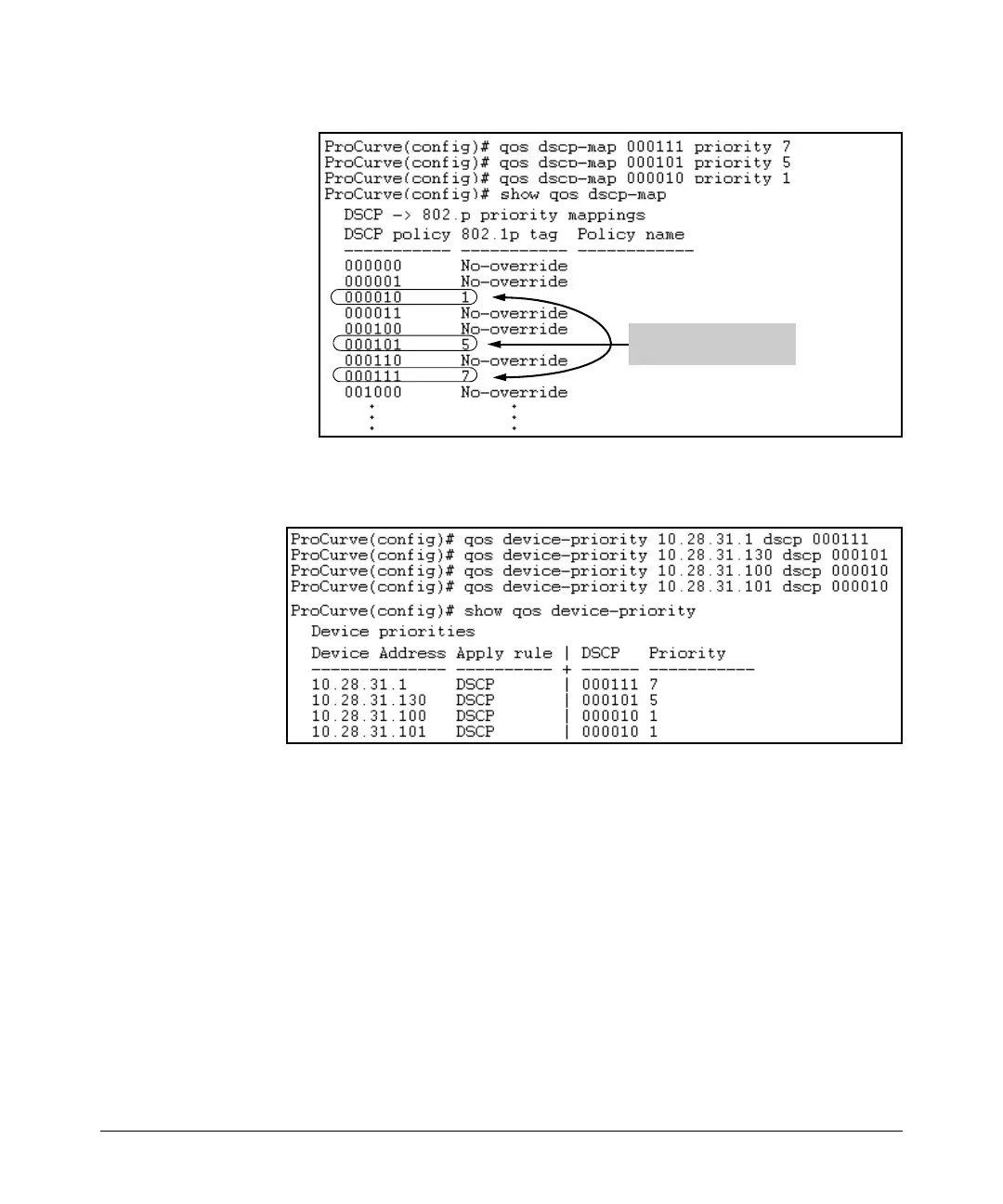

Figure 6-11. Assigning 802.1p Priorities to the Selected DSCPs
3. Assign the DSCP policies to the selected device IP addresses and display
the result.
Figure 6-12. The Completed Device-Priority/Codepoint Configuration
The switch will now apply the DSCP policies in figure 6-11 to IPv4 packets
received on the switch with the specified IP addresses (source or destination).
This means the switch will:
■ Overwrite the original DSCPs in the selected packets with the new DSCPs
specified in the above policies.
■ Assign the 802.1p priorities in the above policies to the appropriate
packets.
DSCP Policies
Configured in this step.

HP ProCurve Series 2810 Specifications

General

Layer	Layer 2
Form Factor	Rack-mountable
Power Supply	Internal
Jumbo Frame Support	Yes
Uplink Ports	4 x dual-personality ports (10/100/1000 or mini-GBIC)
Switching Capacity	48 Gbps
Throughput	35.7 Mpps
Forwarding Rate	35.7 million pps
Management	Web, SNMP, CLI
MAC Address Table Size	16000 entries
Routing Protocol	Static routing
Features	VLAN support, QoS, IGMP snooping
Operating Temperature	32°F to 113°F (0°C to 45°C)
Operating Humidity	15% to 95% non-condensing
Model	HP ProCurve Series 2810
Ports	24 x 10/100/1000 (Gigabit)
