Quality of Service (QoS): Managing Bandwidth More Effectively
Using QoS Types To Configure QoS for Outbound Traffic
2. Configure the priorities for the DSCPs you want to use.

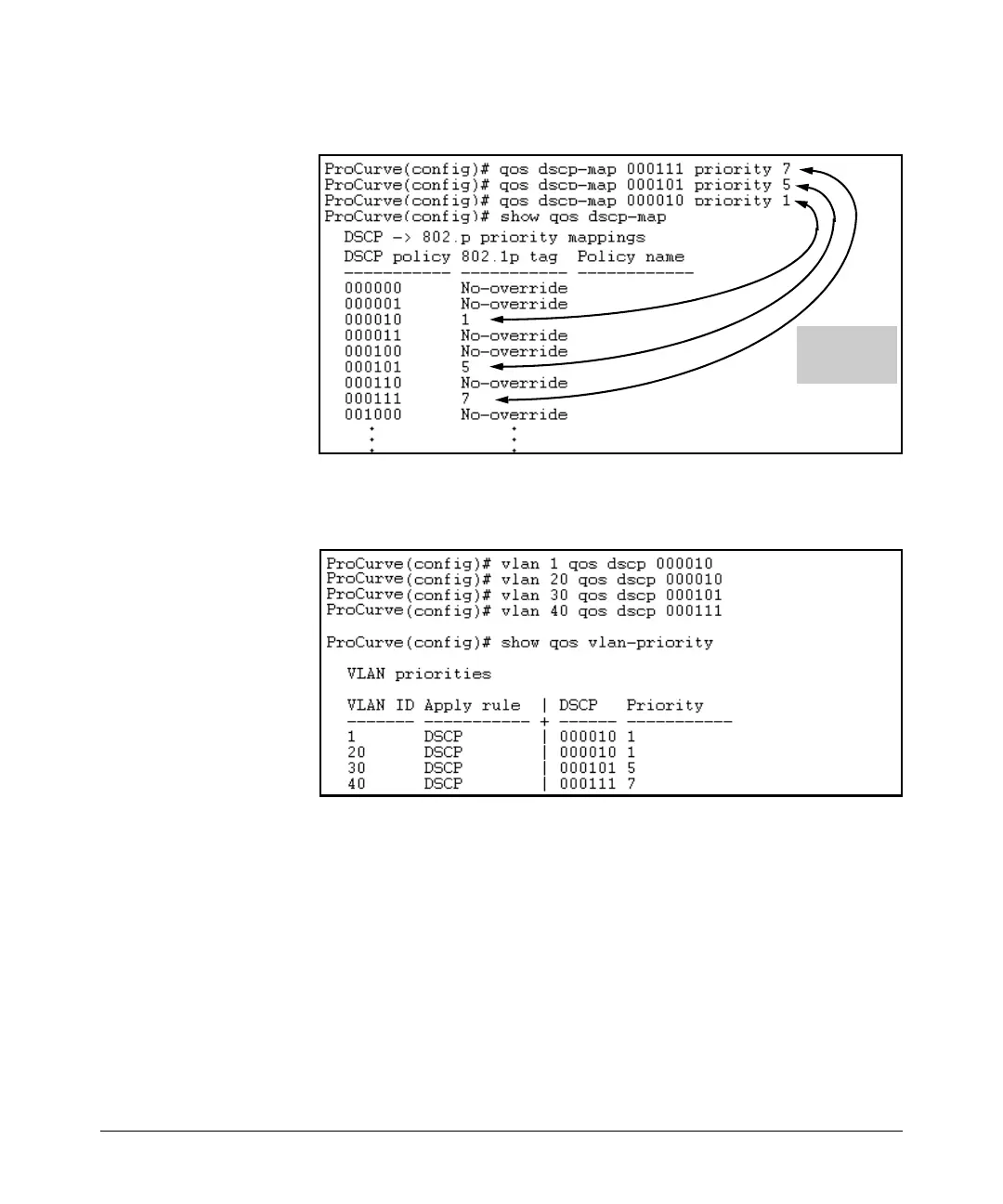

Figure 6-25. Assign Priorities to the Selected DSCPs
Assign the DSCP policies to the selected VIDs and display the result.
Figure 6-26. The Completed VID-DSCP Priority Configuration
The switch will now apply the DSCP policies in figure 6-26 to packets received
on the switch with the specified VLAN-IDs. This means the switch will:
■ Overwrite the original DSCPs in the selected packets with the new DSCPs
specified in the above policies.
■ Assign the 802.1p priorities in the above policies to the appropriate
packets.
Priorities
Configured
in this step.
