HP ProCurve Series 2810 - Page 205

6-57
Quality of Service (QoS): Managing Bandwidth More Effectively
Using QoS Types To Configure QoS for Outbound Traffic
3. Assign the DSCP policies to the selected source-ports and display the
result.

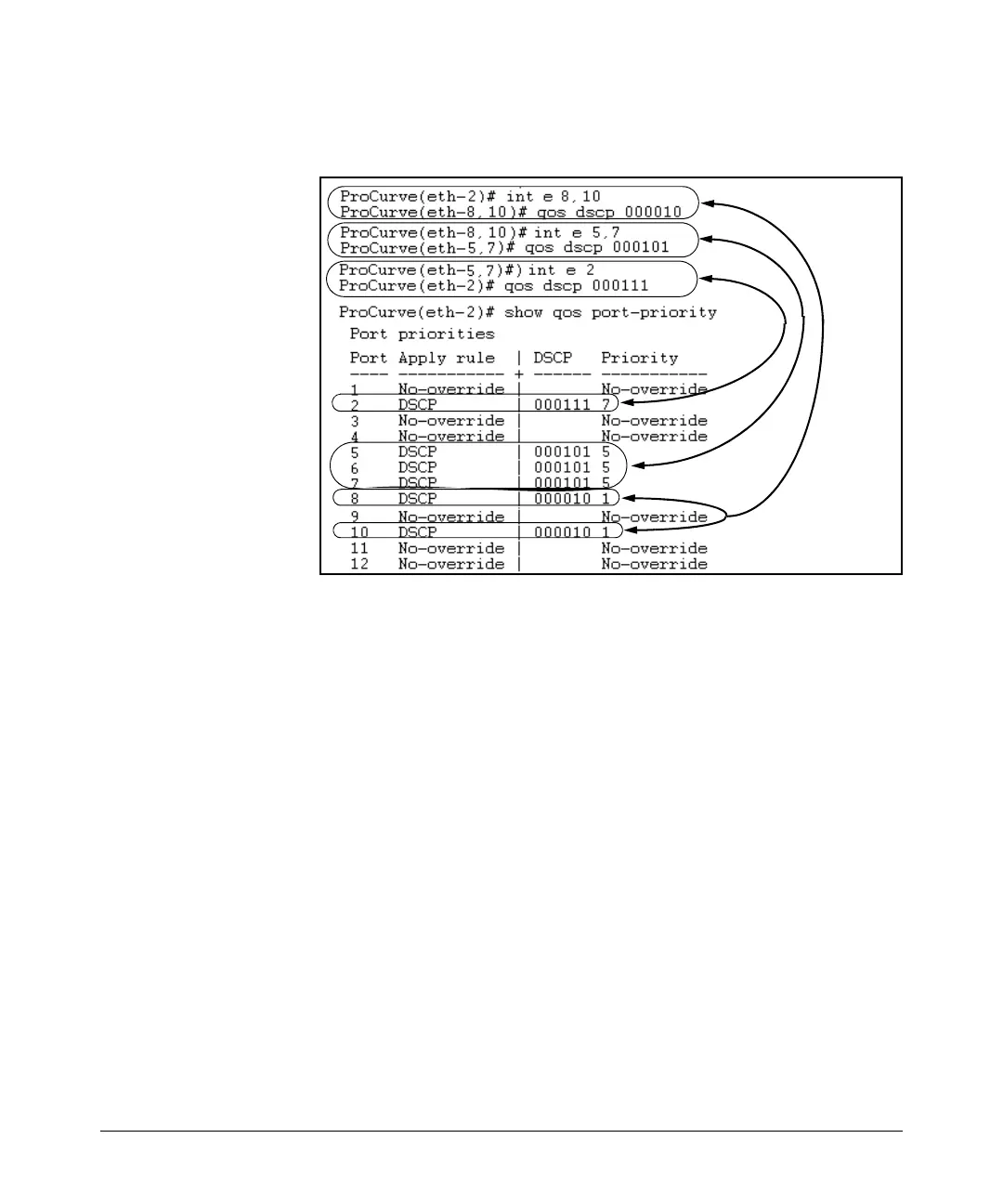

Figure 6-31. The Completed Source-Port DSCP-Priority Configuration
