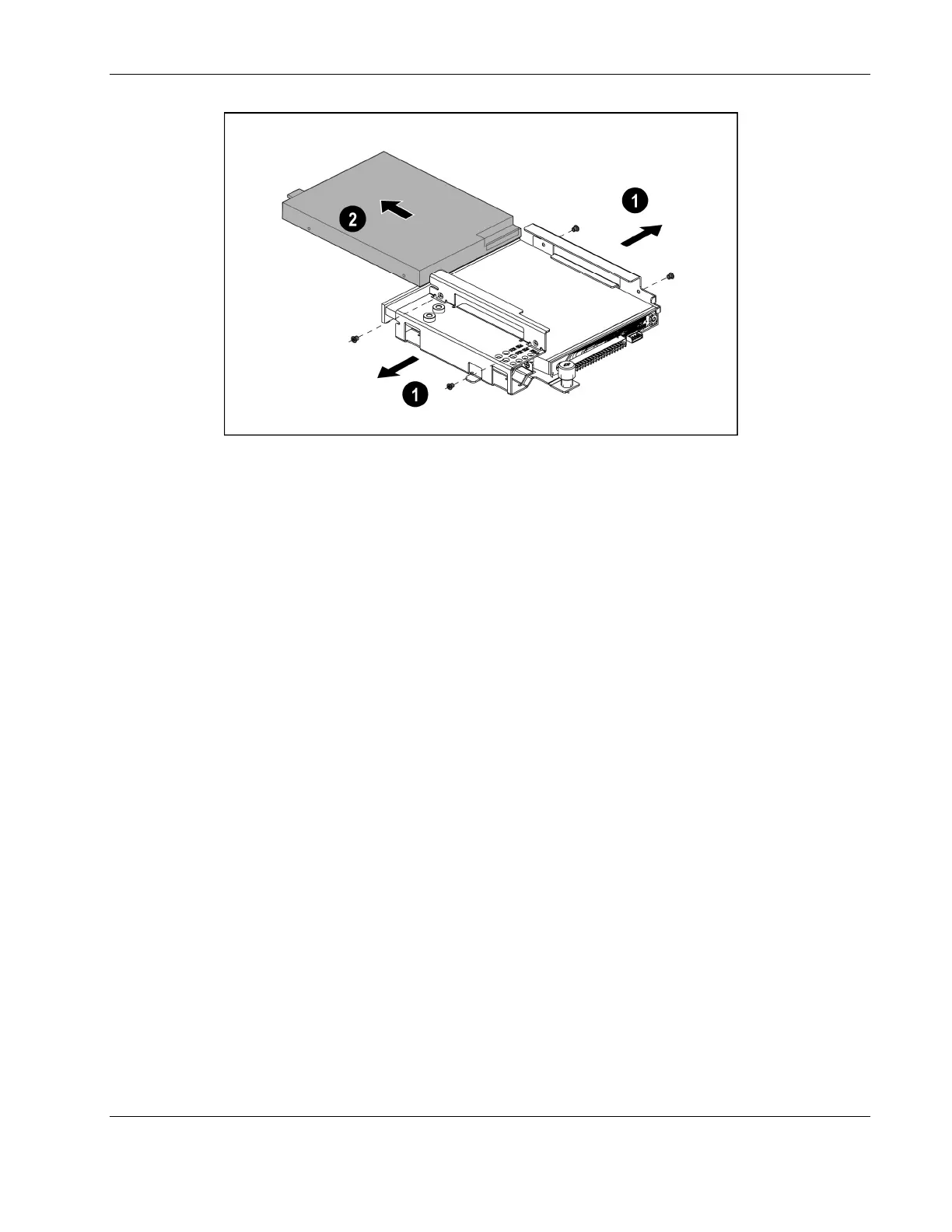

Figure 2-4: Remove the diskette drive
To replace the diskette drive, reverse steps 1 through 5.
NOTE: See the HP ProLiant DL320 Generation 3 Server User Guide for instructions on installing the
diskette drive.
NOTE: If the diskette drive must be replaced due to failure, the diskette drive cable must be removed
from the failed drive and installed on the replacement. See Chapter 1, “Illustrated Parts Catalog,” for
illustrations.
Optical Drive
To remove the optical drive:
1. Power down the server. See “Powering Down the Server” in this chapter.
2. Remove the access panel. See “Access Panel” in this chapter
3. Disconnect the drive assembly cables. See “Drive Assembly” in this chapter.
4. Remove 4 screws holding optical drive (1) and slide the drive out of the assembly (2).

HP ProLiant DL320 Generation 3 Specifications

General

Processor Sockets	1
Memory Slots	4
Processor	Intel Xeon
Memory Type	DDR2
Storage	SAS or SATA
Hard Drive Interface	SAS or SATA
Form Factor	1U Rack
Operating System Support	Windows Server, Linux
Drive Bays	4 x 3.5"
