Component Identifications
4-2 HP ProLiant DL320 Generation 3 Server Maintenance and Service Guide
Rear Panel Components
Figure 4-1 and Table 4-1 show the components and connectors on the rear panel of the server.

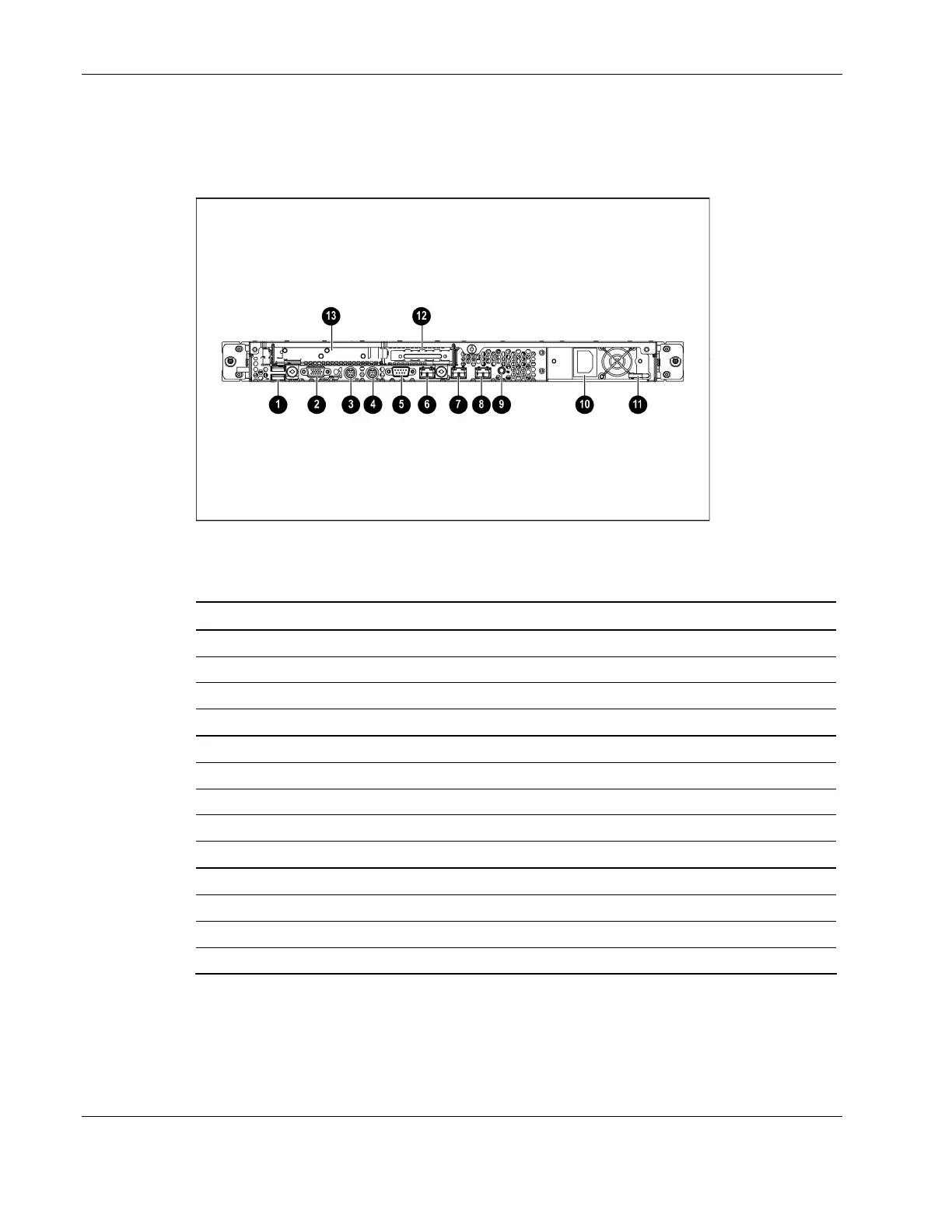

Figure 4-1: Rear panel components
Table 4-1: Rear Panel Components
Item Description
1 Rear USB connectors 1 & 2
2 Video connector
3 Mouse connector
4 Keyboard connector
5 Serial connector
6 iLo management port
7 10/100/1000 NIC 1
8 10/100/1000 NIC 2
9 UID button/LED
10 Power connector
11 T-15/T-10 Torx screwdriver
12 PCI-X expansion slot 1, low-profile half-length 64 bit/100 MHz 3.3 V
13 PCI-X expansion slot 2, full-length 64 bit/133 MHz 3.3 V (Optional PCI Express slot 1, x8)
