Removal and Replacement Procedures
2-18 HP ProLiant DL320 Generation 3 Server Maintenance and Service Guide

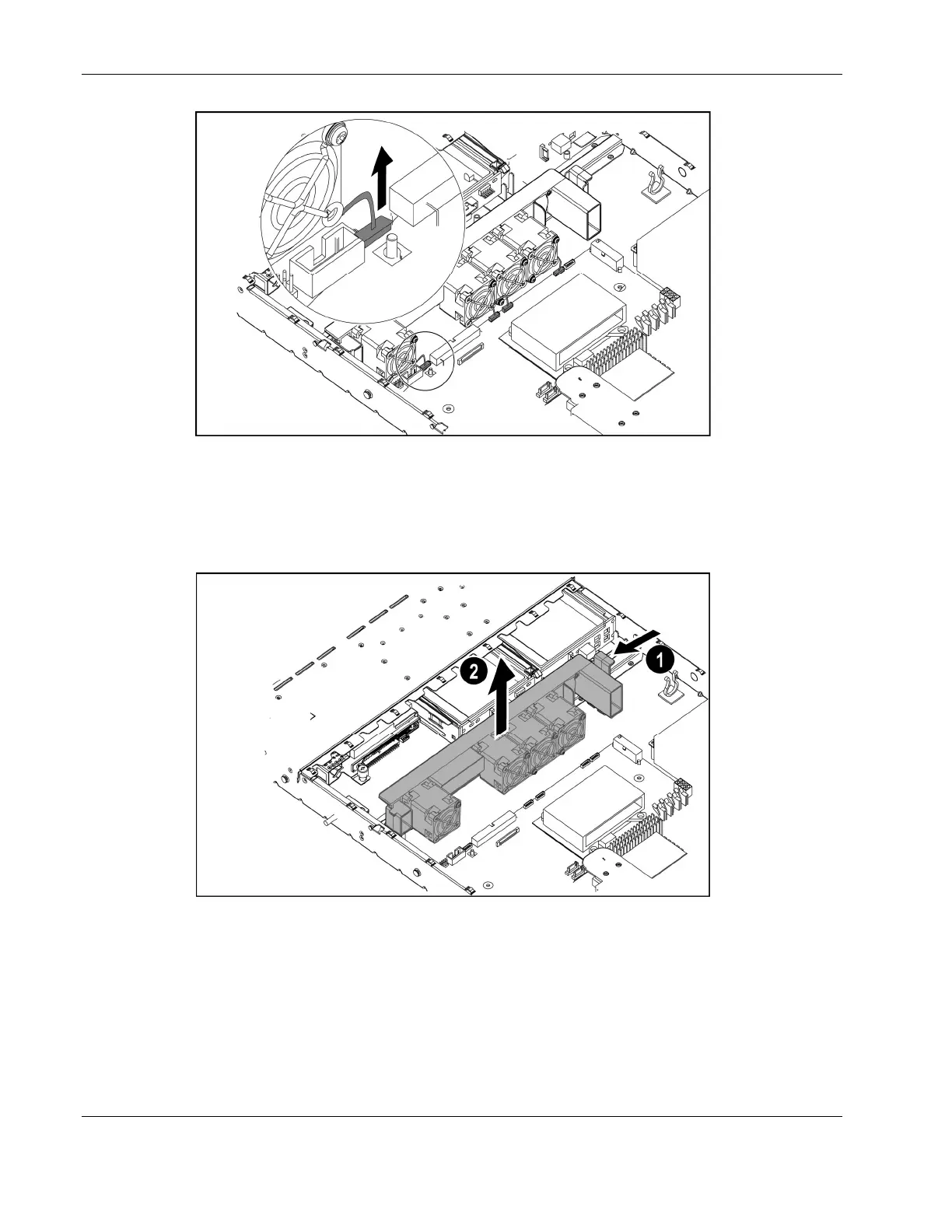

Figure 2-13: Disconnecting the fan assembly power cables
(processor heatsink removed for clarity)
5. Push in and hold the fan assembly tab to unlock the fan assembly from the chassis (1)
6. Lift the fan assembly out of the chassis (2)
Figure 2-14: Lifting the fan assembly out of the chassis
Reverse steps 1 through 6 to replace the fan assembly.
IMPORTANT: See the server hood label or “System Board Connector,” in Chapter 4, “Connectors,
Switches, and LED Indicators,” for correct fan cable connections.
