Component Identifications
HP ProLiant DL320 Generation 3 Server Maintenance and Service Guide 4-9

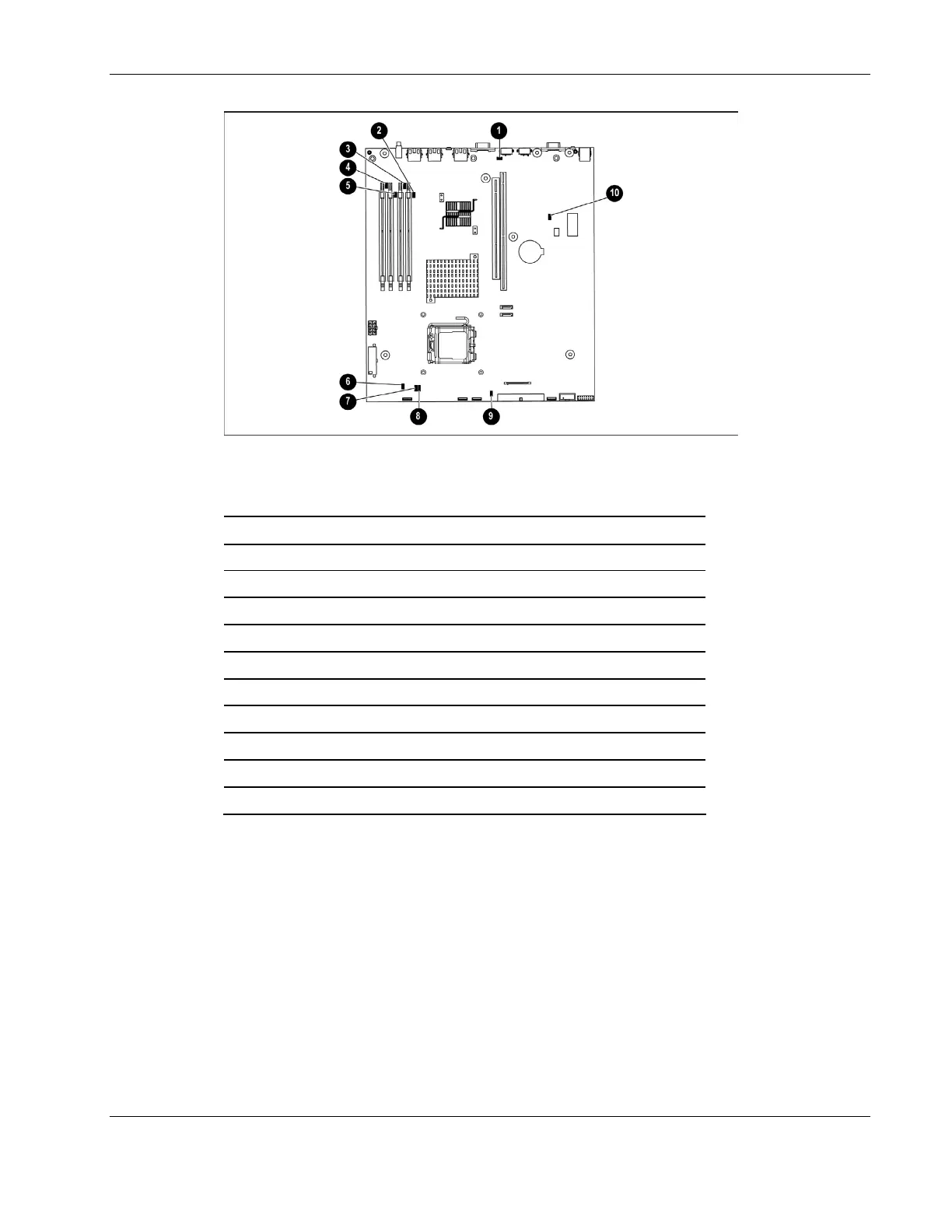

Figure 4-7: System board status LEDs
Table 4-8: System board status LEDs
Item Description
1 Interlock Failure LED
2 DIMM 1A Failure LED
3 DIMM 2A Failure LED
4 DIMM 4B Failure LED
5 DIMM 3B Failure LED
6 VRD Failure LED
7 Processor Failure LED
8 Over Temperature LED
9 System Fan Single/Multi Failure LED (not install)
10 Power Supply Power Good LED
