Removal and Replacement Procedures
HP ProLiant DL320 Generation 3 Server Maintenance and Service Guide 2-21
Cables
This section contains removal and replacement procedures for SATA drive cables that ship
with the server.
SATA Drive Cables
To remove the SATA drive cables:
1. Power down the server. See “Powering Down the Server” in this chapter.
2. Remove the access panel. See “Access Panel” in this chapter.
3. Remove the fan assembly. See “Fan Assembly” in this chapter.
4. Disconnect the following cables:
a. The system board (1) (4)
b. The hard drive(s) (2) from the backplane
c. The power cables (3) (7)
d. The diskette drive (5)
e. The optical drive (6)

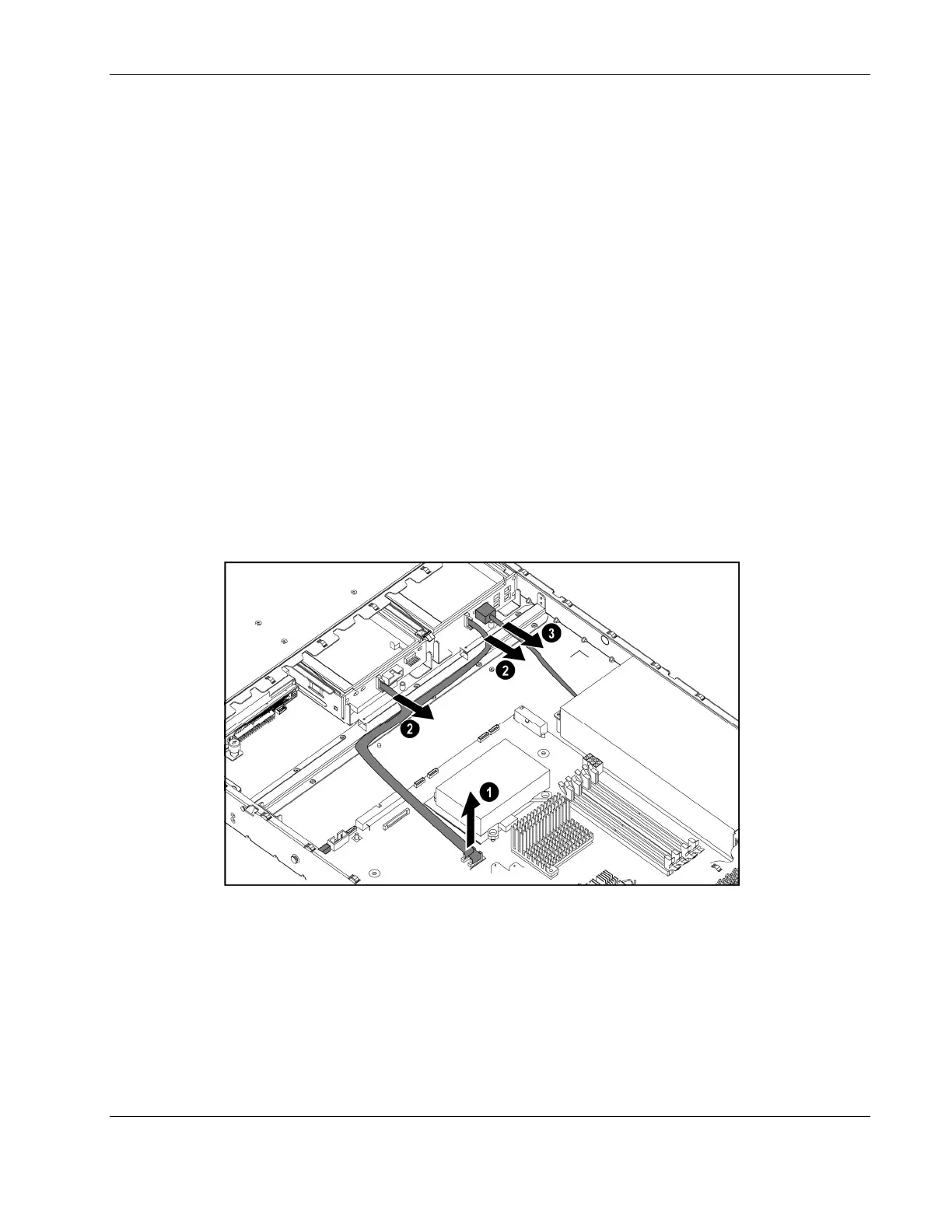

Figure 2-17: Disconnecting the SATA cables
