Removal and Replacement Procedures
2-20 HP ProLiant DL320 Generation 3 Server Maintenance and Service Guide
To remove one fan from the fan assembly:
1. Loosen the screws (1)
2. Slide the fan out of the assembly (2).

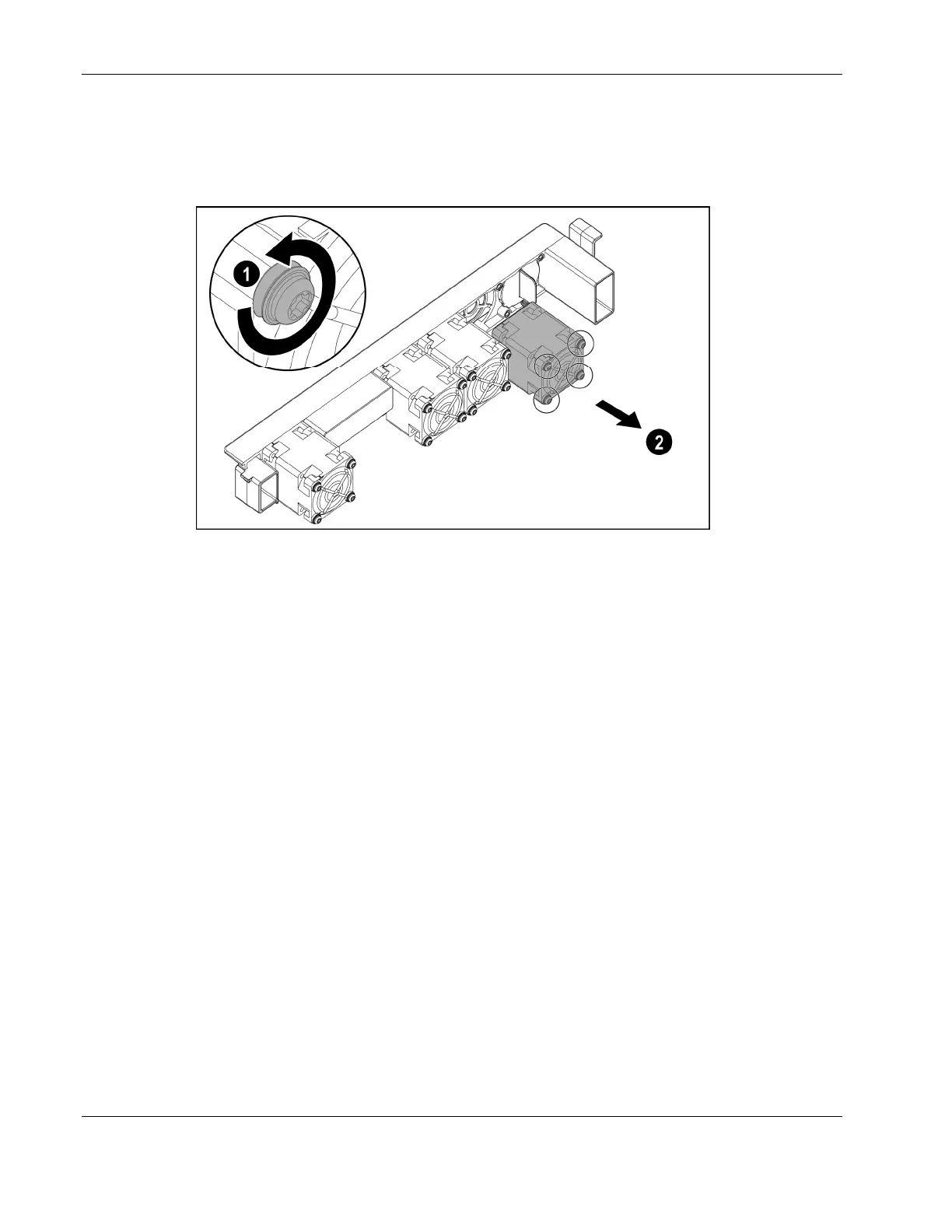

Figure 2-16: Removing one fan from the fan assembly
Reverse steps 1 and 2 to replace the fan.
