10/100/1000 Base-T Ethernet LAN Connector
Figure 1-12 shows the rear panel 10/100/1000 base-T Ethernet LAN connector and the status and
activity LEDs.

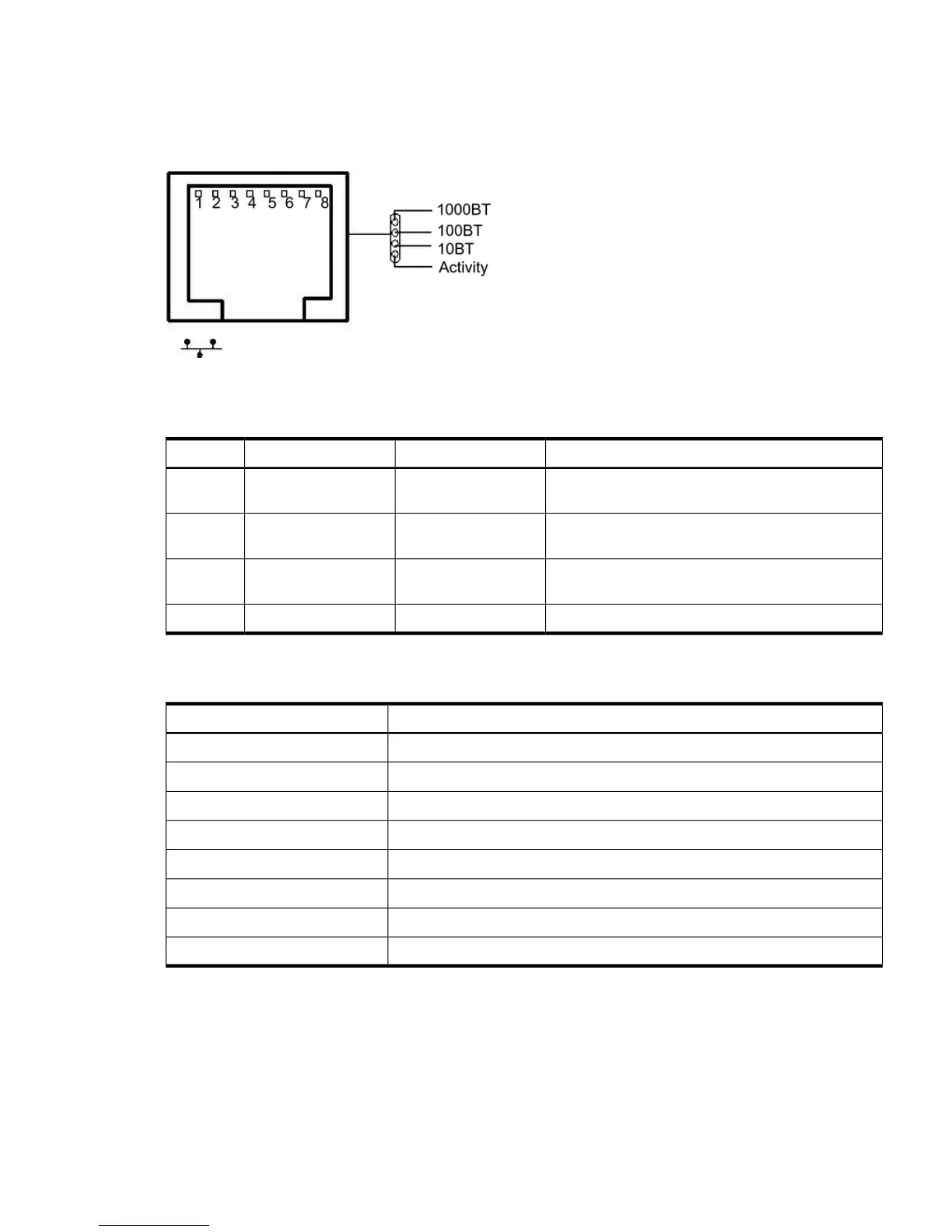

Figure 1-12 10/100/1000 Base-T Ethernet LAN Connector LEDs
Table 1-11 lists the 10/100/1000 base-T Ethernet LAN connector LED descriptions.
Table 1-11 10/100/1000 Base-T Ethernet LAN Connector LEDs
DescriptionStatusActivityLED
1000 MHz with Ethernet protocol and twisted-pair
wiring is enabled
off—no linkFlashing green1000BT
100 MHz with Ethernet protocol and twisted-pair
wiring is enabled
off—no linkFlashing green100BT
10 MHz with Ethernet protocol and twisted-pair
wiring is enabled
off—no linkFlashing green10BT
LAN activityFlashing greenActivity
Table 1-12 lists the 10/100/1000 base-T Ethernet LAN connector pinouts.
Table 1-12 10/100/1000 Base-T Ethernet LAN Connector Pinouts
Signal DescriptionPin Number
TXP1
TXN2
RXP3
Not used4
Not used5
RXN6
Not used7
Not used8
USB Ports
Figure 1-13 shows the dual USB port connector.
