HP rp3440 - SCSI Port, Ultra 3, 68-Pin; Dual USB Port Connector; Single USB Port; USB Pinouts

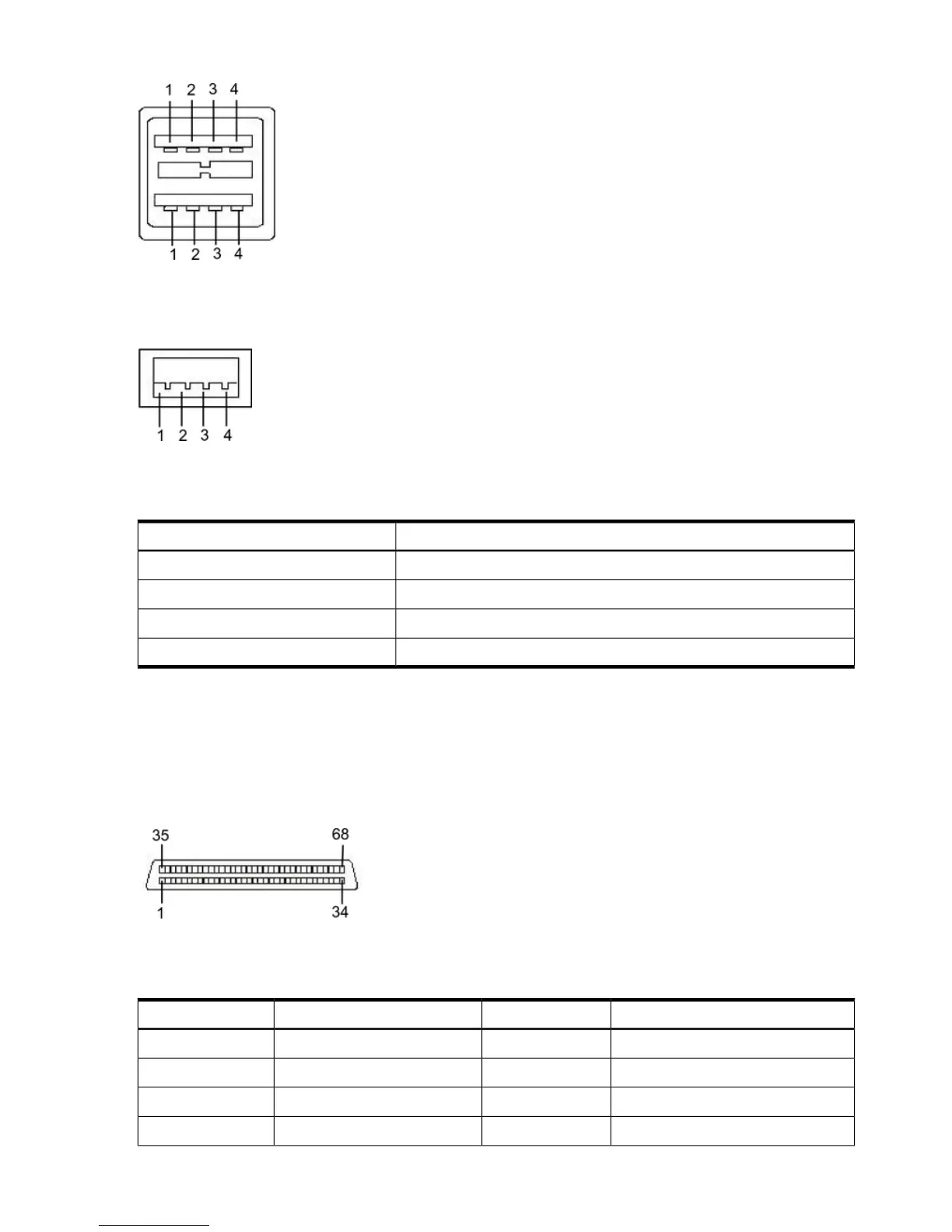

Figure 1-13 Dual USB Port Connector
Figure 1-14 shows the single USB port.
Figure 1-14 Single USB Port
Table 1-13 lists the USB pinouts.
Table 1-13 USB Pinouts
Signal DescriptionPin Number
+5 VDC1
MR2
PR3
Ground4
SCSI Port, Ultra 3, 68-Pin
A single, Ultra 3, 68 pin SCSI connector is located at the rear panel of the server. The external
connector supports SCSI channel “B.”
Figure 1-15 shows the SCSI port, Ultra 3, 68-pin.
Figure 1-15 SCSI Port, Ultra 3, 68-Pin
Table 1-14 lists the SCSI port pinouts.
Table 1-14 SCSI Port Pinouts
Signal DescriptionPin NumberSignal DescriptionPin Number
S35 (–DB 12)35S1 (+DB 12)1
S36 (–DB 13)36S2 (+DB 13)2
S37 (–DB 14)37S3 (+DB 14)3
S38 (–DB 15)38S4 (+DB 15)4
36 Overview
