Gateway links
4

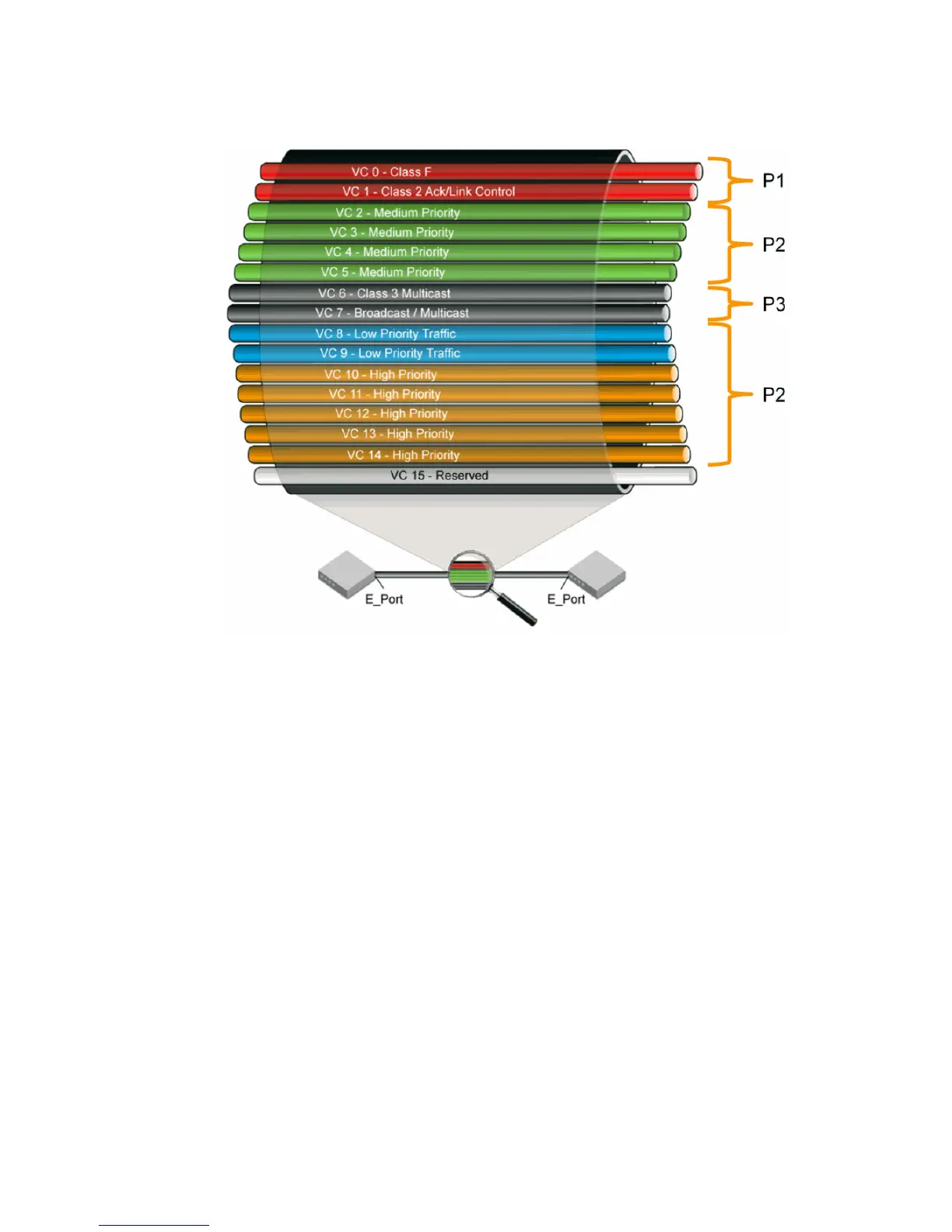

FIGURE 7 Virtual channels on a QoS-enabled ISL
Gateway links
A gateway merges SANs into a single fabric by establishing point-to-point E_Port connectivity
between two Fibre Channel switches that are separated by a network with a protocol such as IP or
SONET.
Except for link initialization, gateways are transparent to switches; the gateway simply provides
E_Port connectivity from one switch to another. Figure 8 shows two separate SANs, A-1 and A-2,
merged together using a gateway.
