See Figure 5 before installing the EVA components in the rack.

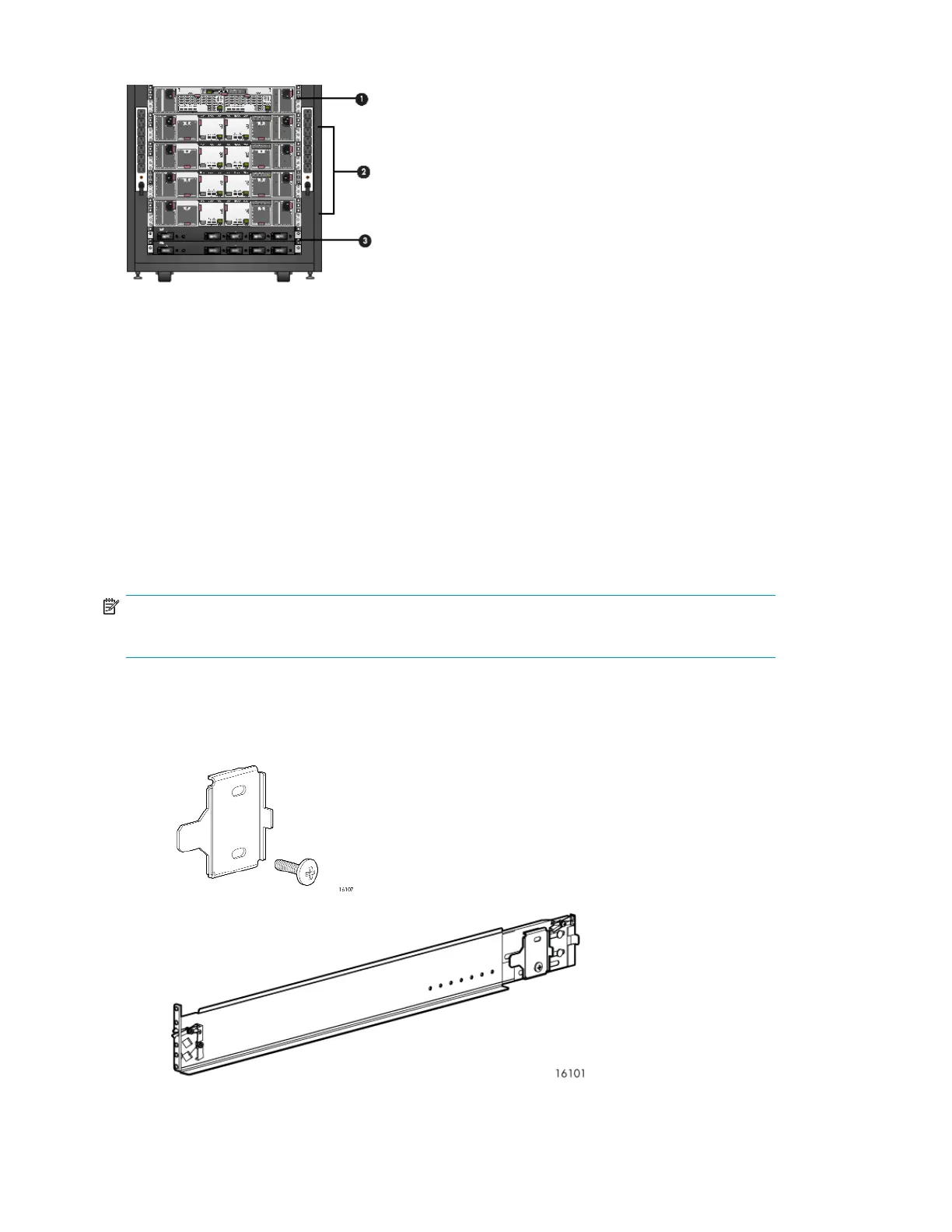

Figure 5 Typical EVA installed in rack (preferred layout)
1. Controller enclosure
2. Disk enclosures
3. PDU (at rear of enclosure)
Attach the brackets for a longer chassis
If you are installing a longer chassis into your cabinet, such as for the controller enclosure, you must
remove the supplied shipping retaining bracket and install the smaller brackets supplied in the accessory
kit.
NOTE:
A No. 2 Phillips head screwdriver is required for this procedure.
1. Remove the existing thumbscrew and shipping retaining bracket from the rear of the rail.
2. Insert a screw through the bottom hole of the new bracket and loosely secure the bracket to the
rear of the rail.
Install components26
