1. File server
2. Management server
3. Database server
4. Fiber channel switch
5. Indicates cabling connections to disk enclosures. See Figure 22 and Figure 23 for cabling connections.

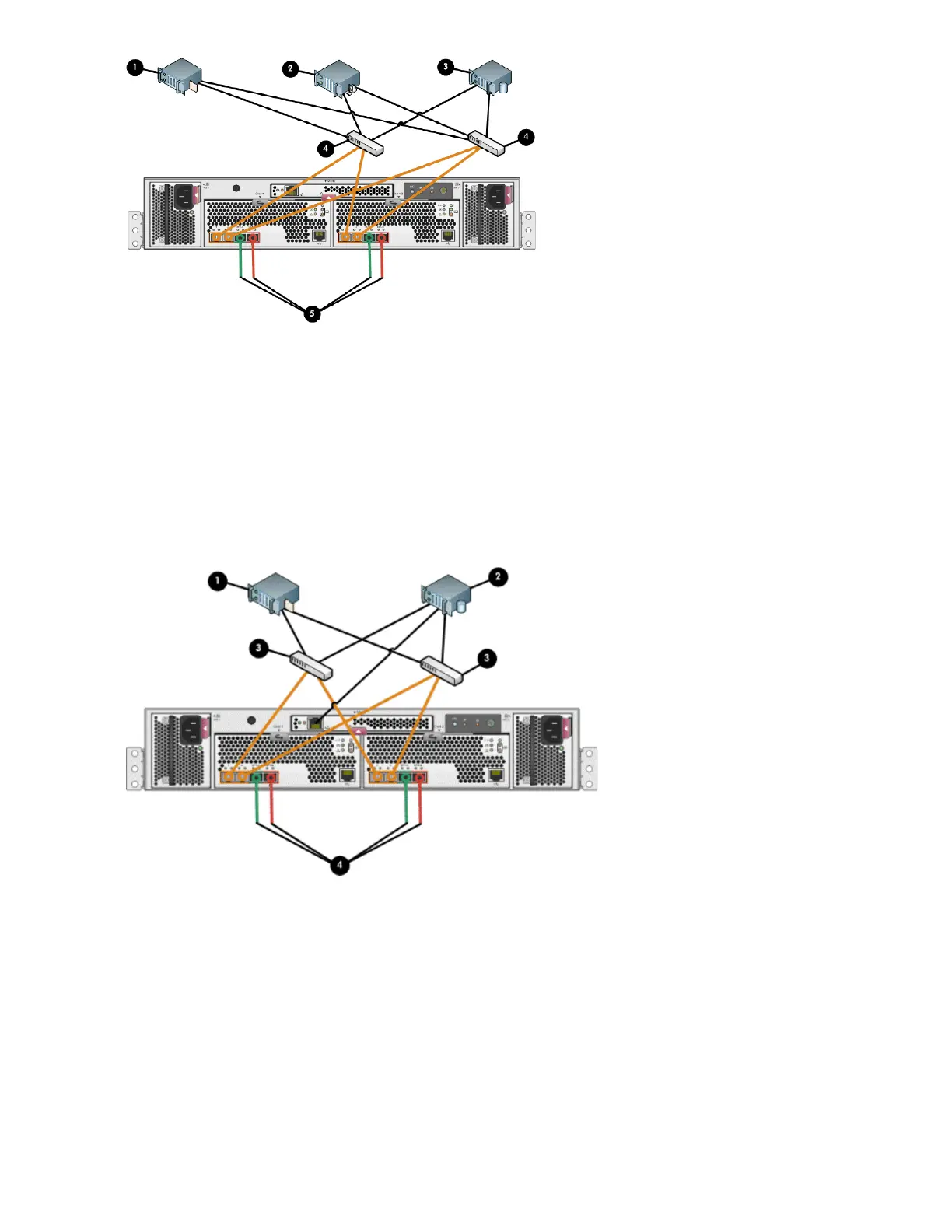

Figure 24 Cabling the controller to front end components - Fibre Channel to switch detail view with
server-based management
1. File server
2. Database server
3. Fiber channel switch
4. Indicates cabling connections to disk enclosures. See Figure 22 and Figure 23 for cabling connections.
Figure 25 Cabling the controller to front end components - Fibre Channel to switch detail view with
array-based management
