HP StorageWorks 4400 - Connecting to the HSV300-S Controller Enclosure; Cabling the Controller to Front End Components - Direct Fibre Channel to Servers with; Server-Based Management; Array-Based Management

1. Management server
2. Database server
3. Indicates cabling connections to disk enclosures. See Figure 22 and Figure 23 for cabling connections.

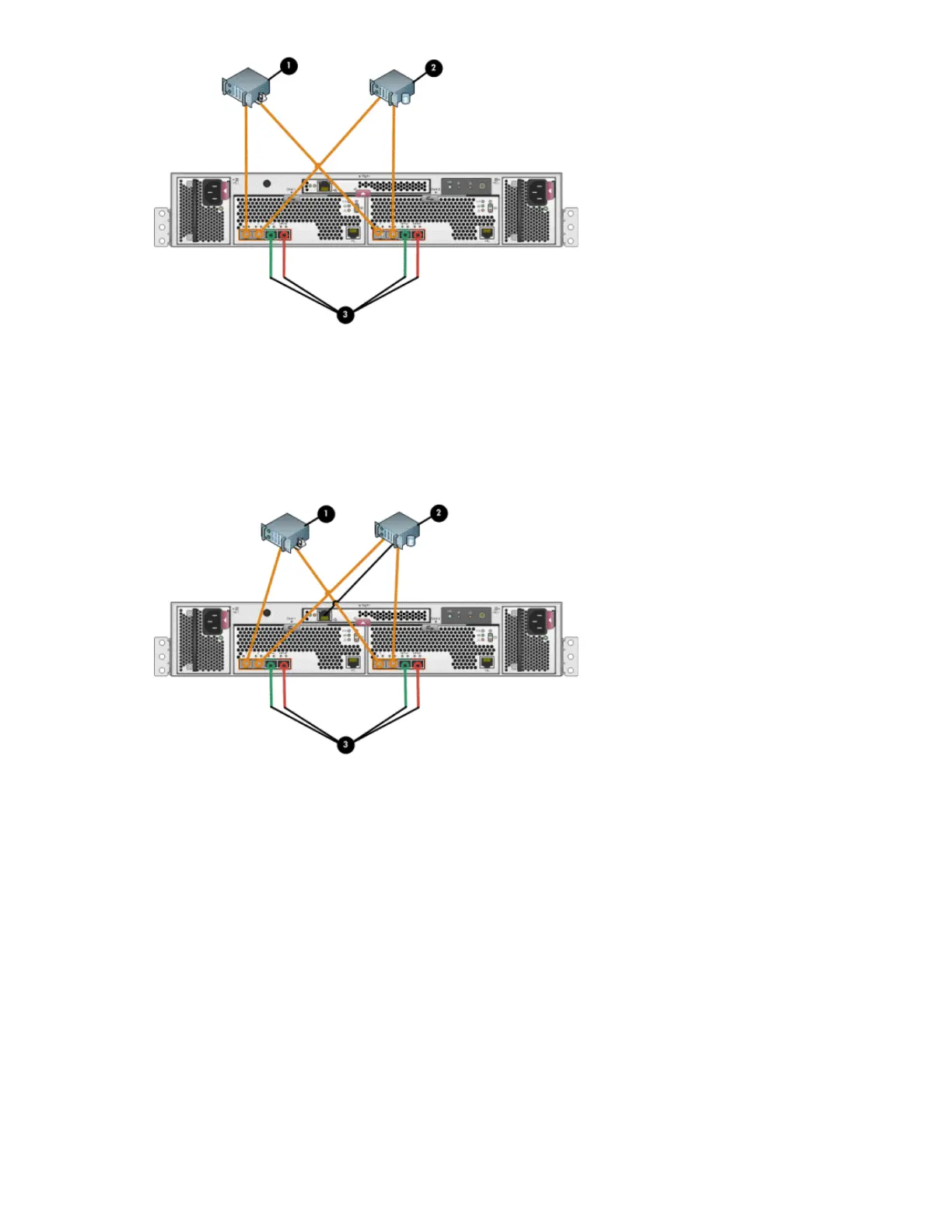

Figure 26 Cabling the controller to front end components - direct Fibre Channel to servers with
server-based management
1. File server
2. Database server
3. Indicates cabling connections to disk enclosures. See Figure 22 and Figure 23 for cabling connections.
Figure 27 Cabling the controller to front end components - direct Fibre Channel to servers with
array-based management
Connecting to the HSV300-S controller enclosure
The HSV 300-S controller enclosure includes a switch within each controller. Figure 28 and Figure
29 shows an HSV300-S controller enclosure in a direct connect cabling environment.
HP StorageWorks 4400 Enterprise Virtual Array installation guide 85
