HP StorageWorks 4400 Installation Guide

Install the enclosures
This section describes how to install disk enclosures, but controller enclosures are installed in the same
way.
1. Remove the bezels installed over the thumbscrews on the front of the enclosure (Figure 8).

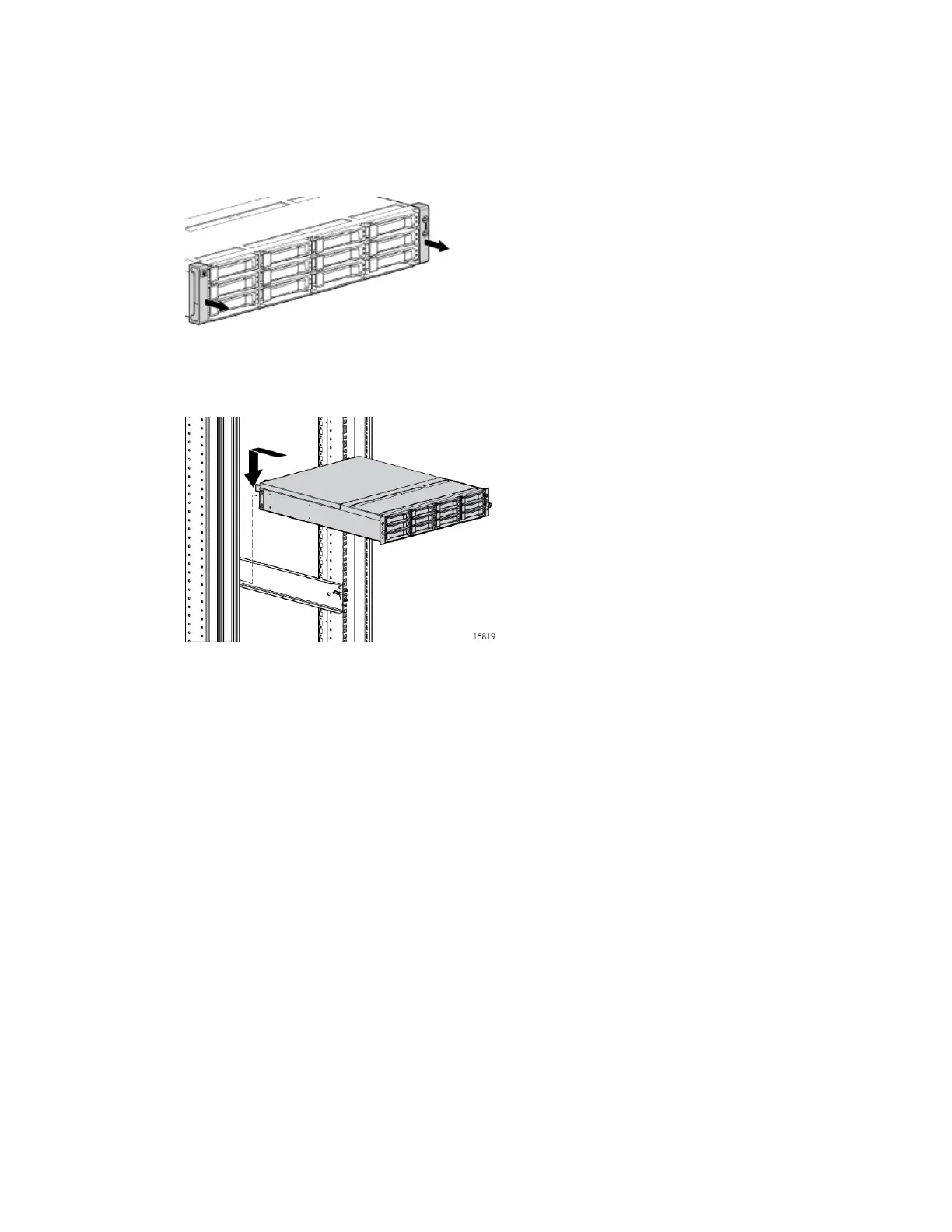

Figure 8 Removing bezels from enclosure
2. Align the enclosure with the rails and slide it into the rack (Figure 9).
Figure 9 Installing an enclosure — view from front of rack
3. Continue sliding the enclosure into the rack until the front edge is flush with the front of the rack.
(1, Figure 10)
4. Secure front of the enclosure to the front of the rack using the provided thumbscrews on the front
of the device (2, Figure 10) and replace the front bezels.
HP StorageWorks 4400 Enterprise Virtual Array installation guide 29
