To remove the memory fan:
1. Disconnect power from the system (
Predisassembly procedures on page 57) and remove the side
access panel (
Side access panel on page 63).
2. Grasp the two green touch point tabs 1, lift up and away 2 from the system fan housing.

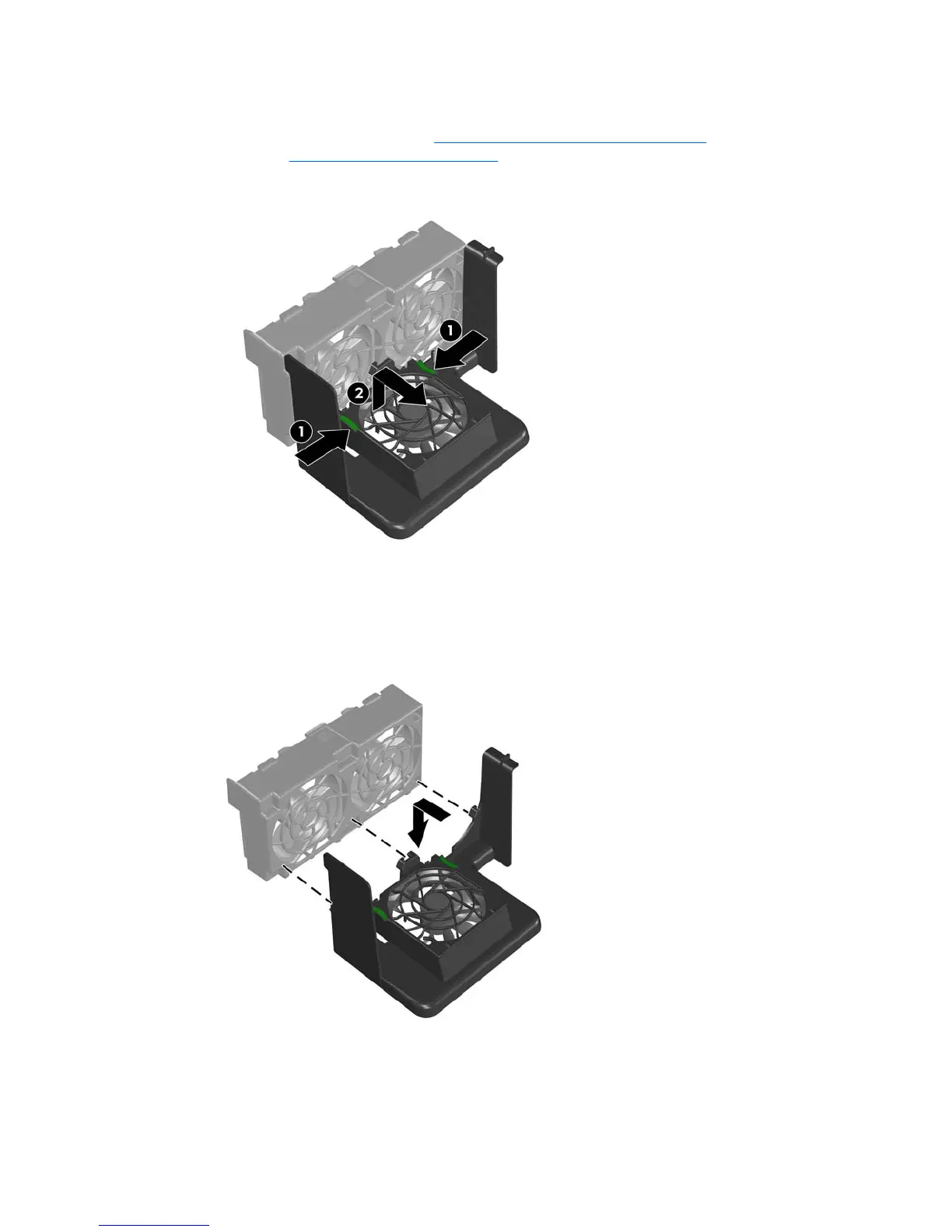

Figure 4-14 Removing the memory fan
To replace the memory fan:
1. Align the two center and two outer hooks to the circular opening of the system fan housing.
2. Press down on the memory fan housing until it snaps into position.
Figure 4-15 Replacing the memory fan
70 Chapter 4 Removal and replacement procedures ENWW
